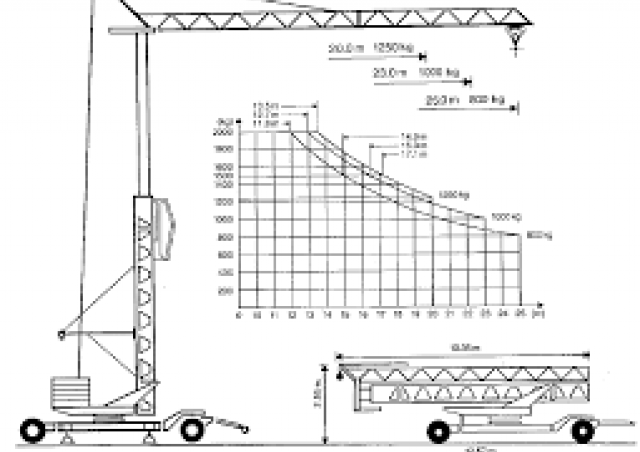

E 2508 Condecta crane - load chart, specs & dimensions (1985 - 2001)

Nominal torque: 270kNm – Max. load: 2t – Load at max. Reach: 1.25t – Reach at max. Load: 13.51m – max. standard boom: 20m – max. h…

Nominal torque: 270kNm – Max. load: 2t – Load at max. Reach: 1.25t – Reach at max. Load: 13.51m – max. standard boom: 20m – max. hook height: 17m

See load chart, specs, capacity, size and other technical data for Condecta E 2508 crane manufactured between 1985 - 2001. See information, like: Nominal torque: 270kNm – Max. load: 2t – Load at max. Reach: 1.25t – Reach at max. Load: 13.51m – max. standard boom: 20m – max. hook height: 17m and more.

Tower Cranes - Trolley Boom - Bottom-slewing Condecta E 2508

Technical specs - E 2508 Condecta

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal torque
270 kNm
Max. load
2 t
Load at max. Reach
1.25 t
Reach at max. Load
13.51 m
max. standard boom
20 m
max. hook height
17 m
Connection load
15 KVA
Hoist unit
7 kW
Model series
E

More technical details, like: ropes, max. reach, max. luffing jib, min. luffing jib, tower height, max. hoisting speed, tower system, drive system are available in the full technical specs.

If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

Special equipment

Cabin
No
Rail carrier
No
Road Carrige
No
Steep jib pos.
No
Hot-dipped galvanised
Yes
Ballasting device
Yes
