CM 221 Cattaneo crane - load chart, specs & dimensions (2012 - 2025)

Name: Cattaneo CM 221 Tower Cranes - Trolley Boom - Bottom-slewing
Brand: Cattaneo

Nominal torque: 124kNm – Max. load: 1.8t – max. reach: 22m – Load at max. Reach: 0.6t – Reach at max. Load: 8.9m – max. standard b…

Nominal torque: 124kNm – Max. load: 1.8t – max. reach: 22m – Load at max. Reach: 0.6t – Reach at max. Load: 8.9m – max. standard boom: 22m

See load chart, specs, capacity, size and other technical data for Cattaneo CM 221 crane manufactured between 2012 - 2025. See information, like: Nominal torque: 124kNm – Max. load: 1.8t – max. reach: 22m – Load at max. Reach: 0.6t – Reach at max. Load: 8.9m – max. standard boom: 22m and more.

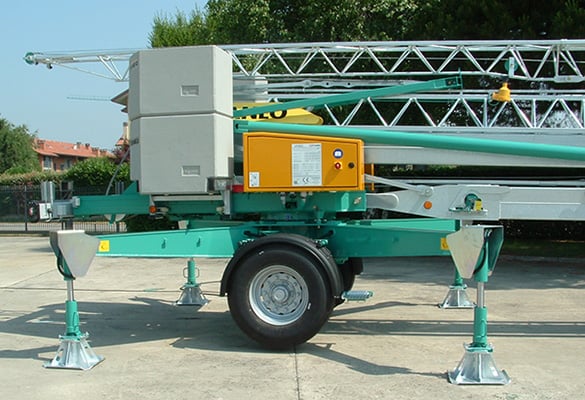

Tower Cranes - Trolley Boom - Bottom-slewing Cattaneo CM 221

CM 221

Years of manufacture: 2012—2025

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - CM 221 Cattaneo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal torque: 124 kNm

Max. load: 1.8 t

max. reach: 22 m

Load at max. Reach: 0.6 t

Reach at max. Load: 8.9 m

max. standard boom: 22 m

Tower height: 19.9 m

max. hook height: 24.9 m

max. hoisting speed: 40 m/min

Drive system: E

Connection load: 8 KVA

Hoist unit: 5.5 kW

More technical details, like: max. luffing jib, min. luffing jib, ropes, tower system, model series are available in the full technical specs.

If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

Special equipment

Cabin: No
Rail carrier: No
Road Carrige: Yes
Steep jib pos.: Yes
Hot-dipped galvanised: Yes
Ballasting device: No
