224 B Wolffkran crane - load chart, specs & dimensions (2008 - 2015)

Nominal torque: 2960kNm – Max. load: 16t – max. reach: 45m – Load at max. Reach: 5t – Tower height: 31.5m – Pivoting Point: 50m…

Nominal torque: 2960kNm – Max. load: 16t – max. reach: 45m – Load at max. Reach: 5t – Tower height: 31.5m – Pivoting Point: 50m

See load chart, specs, capacity, size and other technical data for Wolffkran 224 B crane manufactured between 2008 - 2015. See information, like: Nominal torque: 2960kNm – Max. load: 16t – max. reach: 45m – Load at max. Reach: 5t – Tower height: 31.5m – Pivoting Point: 50m and more.

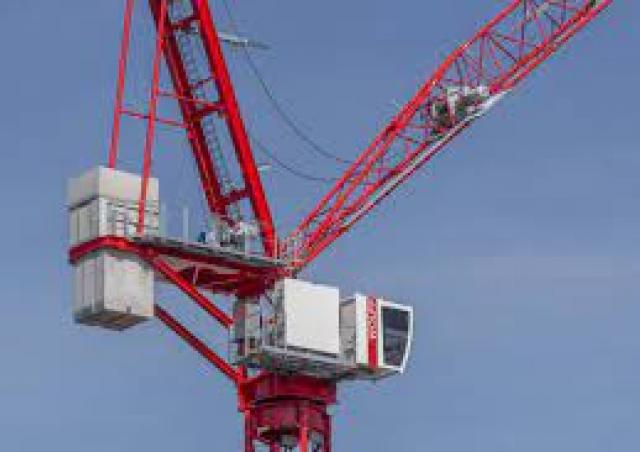

Tower Cranes - Luffing Boom - Top-slewing Wolffkran 224 B

Technical specs - 224 B Wolffkran

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal torque
2960 kNm
Max. load
16 t
max. reach
45 m
Load at max. Reach
5 t
Tower height
31.5 m
Pivoting Point
50 m
Drive system
1675 FU
Connection load
135 KVA
Hoist unit
75 kW
Model series
B

More technical details, like: reach at max. load, max. luffing jib, min. luffing jib, max. jib angle, ropes, max. hook height, max. hoisting speed are available in the full technical specs.

Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

Special equipment

Cabin
No
Add. ballast
Yes
Rail carrier
No
Undercarriage
No
Cross girder
Yes
