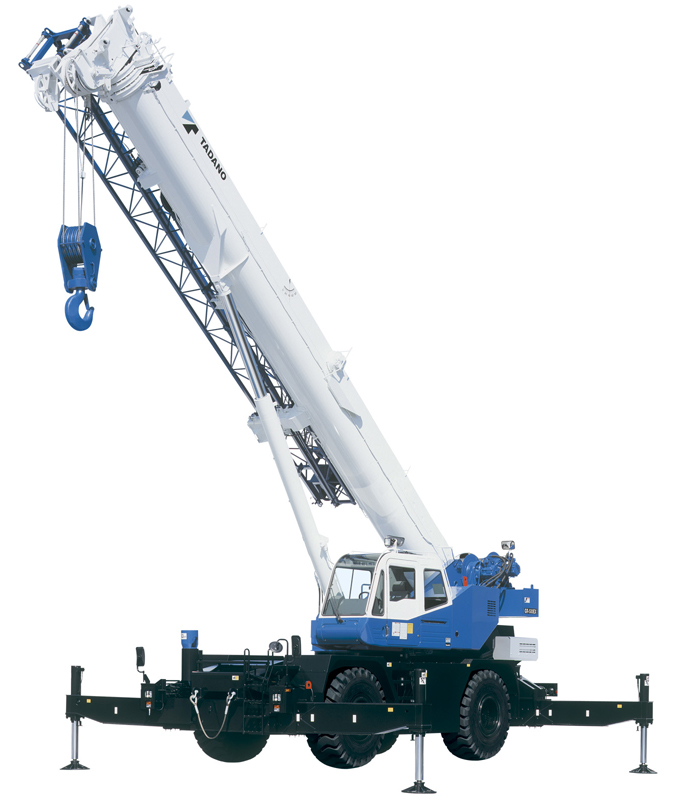

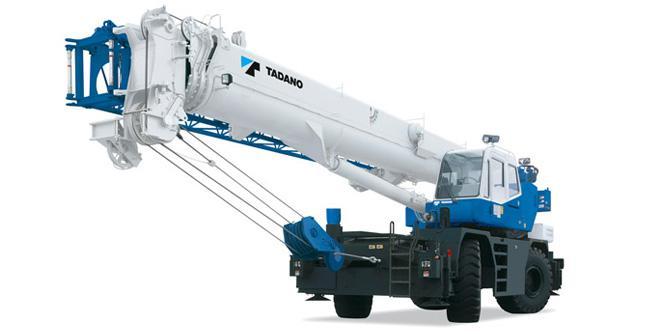

Tadano GR-500EX-2 crane - load chart, specs (2012 - 2023)
max. carrying capacity: 50t – at reach: 2.5m – Carrying capacity: 0.35t – at max. reach: 42m – max. standard boom: 34.7m – Min. st... Read more
max. carrying capacity: 50t – at reach: 2.5m – Carrying capacity: 0.35t – at max. reach: 42m – max. standard boom: 34.7m – Min. standard boom: 10.7m
See load chart, specs, capacity, size and other technical data for Tadano GR-500EX-2 crane manufactured between 2012 - 2023. See information, like: max. carrying capacity: 50t – at reach: 2.5m – Carrying capacity: 0.35t – at max. reach: 42m – max. standard boom: 34.7m – Min. standard boom: 10.7m and more.
Technical specs - GR-500EX-2 Tadano
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- max. carrying capacity 50 t
- at reach 2.5 m
- Carrying capacity 0.35 t
- at max. reach 42 m
- max. standard boom 34.7 m
- Min. standard boom 10.7 m
- Max. luffing jib 15.2 m
- max. hook height 61 m
- Engine power 194 kW
- Travel speed 25 km/h
- Number of axles 2
- axle load 16.98 t
- Wheels/Drive/Steering 4/4/4
- Standard tyres 23.5–25 32PR (OR)
- Engine manuf. Cummins
- Engine type QSB6.7
- Displacement 6.7 l
- Revolutions at max torque 1600 rpm
- Max. torque 843 Nm
- No. of cylinders 6
- Cylinder bore x stroke 107x124 mm
- Emission level IIIB
More technical details, like: load torque, tipping load, dimension lxwxh, weight are available in the full technical specs.
Including hook block
- 2nd winch
- max. luffing jib
- Add. ballast
