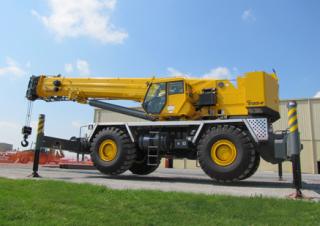

RT9130E-2 Grove crane - load chart, specs & dimensions (2013 - 2022)

Swing

Two speed, (2) planetary swing drives with foot applied multi-disc wet brakes. Spring applied, hydraulically released swing brakes. 360° positive swing lock and two-position mechanical house lock, both operated from cab. Maximum speed: 2.5 rpm.

Miscellaneous standard equipment

Full width aluminum fenders, full length aluminum decking, dual rear view mirrors, hook-block tie down, electronic back-up alarm, light package, front stowage well, tachometer/hourmeter, immersion type block heater, rear wheel position indicator, 30,000 BTU hot water cab heater, hoist mirrors, engine distress A/V warning system, front/rear tie down and tow lugs, coolant sight level indicator, hydraulic pump disconnect, LMI light bar. Hydraulically activated boom removal pins, lift cylinder travel support, 80 USt hook block, 10 USt top swivel ball.

Optional equipment

AUXILIARY LIGHTING AND CONVENIENCE PACKAGE: Includes superstructure mounted amber flashing light, dual base boom mounted floodlights, and rubber mat for stowage trough. 130 USt hook block Rear pintle hook Cab controlled cross axle differential locks, (front and rear) PAT event recorder down load kit Wind speed indicator (wireless) Third wrap indicator with hoist cut-out (main and auxiliary)

Cab

The Full Vision cab on the RT9130E-2 tilts up to 20° providing the operator additional comfort when working at long boom and extension lengths. Additionally, it features a 20° tilt, full-vision, all-steel fabrication with acoustical lining and tinted safety glass throughout. The deluxe seat incorporates armrest-mounted hydraulic single-axis controllers, and the tilt/telescoping steering wheel includes various controls integrated into the steering column. Other standard features include: hot water heater, cab circulating air fan, sliding side and rear windows, sliding skylight with electric wiper and sunscreen, electric windshield wash/wipe, fire extinguisher, seat belt, air conditioning, and dual cab mounted work light.

Hydraulic system

Six main pumps with a combined capacity of 776 LPM (205 GPM). Maximum operating pressure: 331 bar (4800 psi). Two individual post pressure compensated valve banks. Return line type filter with full flow by-pass protection and service indicator. Replaceable cartridge with micron filtration rating of 5/12/16. 1230 L (325 gal) reservoir. Remote mounted oil cooler with thermostatically controlled hydraulic driven motor, fan/air to oil. System pressure test ports.
