RT550E Grove crane - load chart, specs & dimensions (2013 - 2020)

max. carrying capacity: 45t – at reach: 2.5m – Carrying capacity: 0.8t – at max. reach: 32m – max. standard boom: 39m – Min. stand…

max. carrying capacity: 45t – at reach: 2.5m – Carrying capacity: 0.8t – at max. reach: 32m – max. standard boom: 39m – Min. standard boom: 9.9m

See load chart, specs, capacity, size and other technical data for Grove RT550E crane manufactured between 2013 - 2020. See information, like: max. carrying capacity: 45t – at reach: 2.5m – Carrying capacity: 0.8t – at max. reach: 32m – max. standard boom: 39m – Min. standard boom: 9.9m and more.

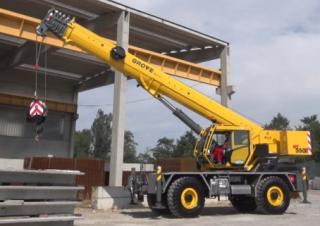

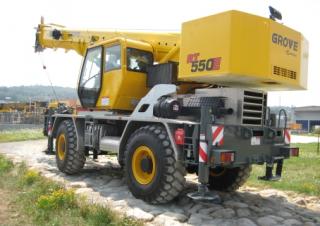

Rough-terrain Cranes Grove RT550E
Rough-terrain Cranes Grove RT550E
Rough-terrain Cranes Grove RT550E
Rough-terrain Cranes Grove RT550E
Rough-terrain Cranes Grove RT550E
Rough-terrain Cranes Grove RT550E

Technical specs - RT550E Grove

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
45 t
at reach
2.5 m
Carrying capacity
0.8 t
at max. reach
32 m
max. standard boom
39 m
Min. standard boom
9.9 m
Max. luffing jib
8 m
max. hook height
49 m
Engine power
122 kW
Travel speed
27 km/h
Number of axles
2
axle load
15.6 t
Wheels/Drive/Steering
4/4/4
Standard tyres
16.00 x 25 - 28
Tipping load
75 kg
Model series
RT
Engine manuf.
Cummins
Engine type
QSB6.7L
Displacement
6.7 l
Revolutions at max torque
1500 rpm
Max. torque
731 Nm
No. of cylinders
6
Emission level
Tier 4. IIIB

More technical details, like: load torque, dimension lxwxh, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
max. luffing jib
No
Add. ballast
No
