GRT9165 Grove crane - load chart, specs & dimensions (2019 - 2026)

max. carrying capacity: 150t – at reach: 2m – Carrying capacity: 15.275t – at max. reach: 64m – max. standard boom: 62.5m – Min. s…

max. carrying capacity: 150t – at reach: 2m – Carrying capacity: 15.275t – at max. reach: 64m – max. standard boom: 62.5m – Min. standard boom: 13.7m

See load chart, specs, capacity, size and other technical data for Grove GRT9165 crane manufactured between 2019 - 2026. See information, like: max. carrying capacity: 150t – at reach: 2m – Carrying capacity: 15.275t – at max. reach: 64m – max. standard boom: 62.5m – Min. standard boom: 13.7m and more.

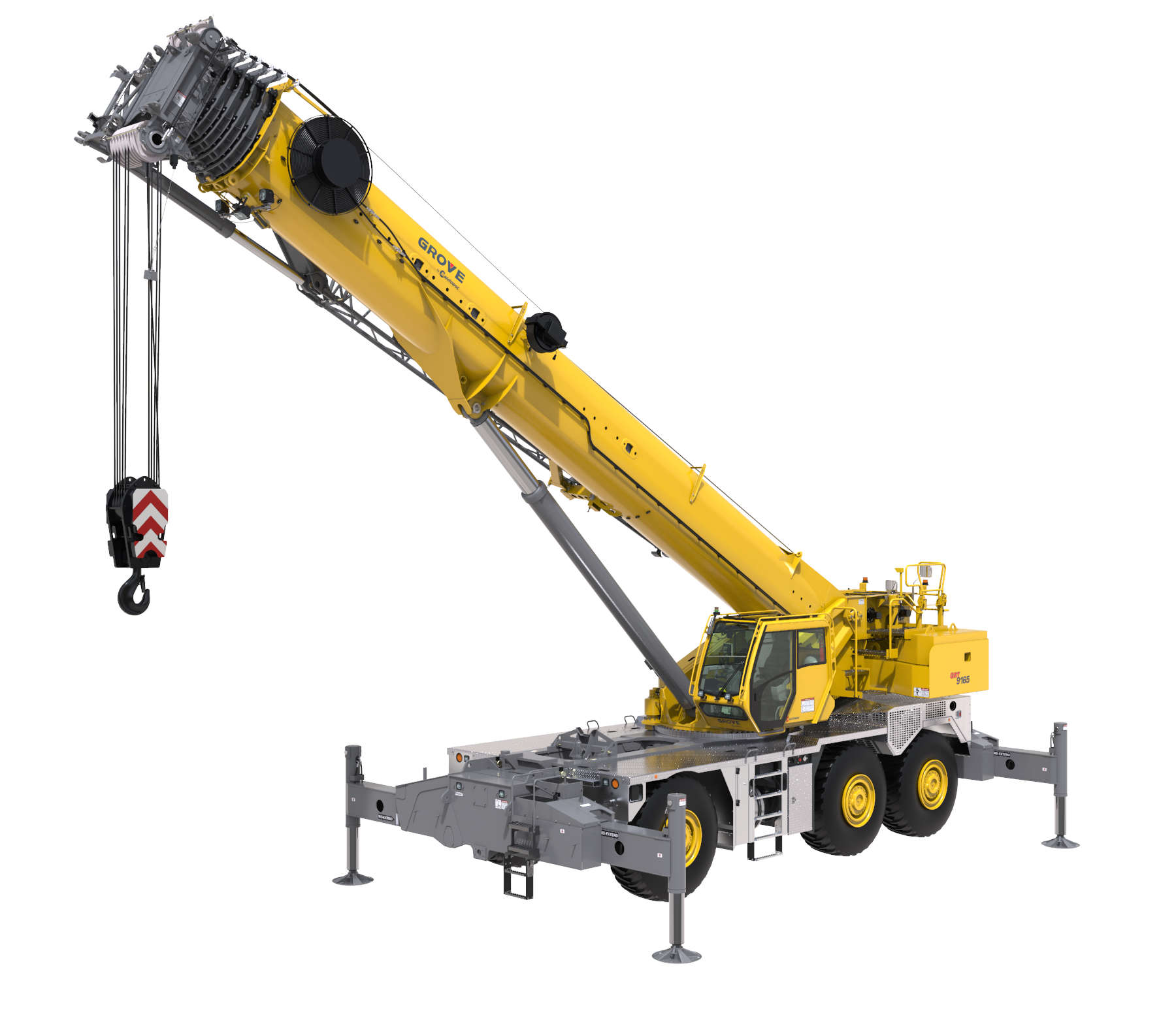

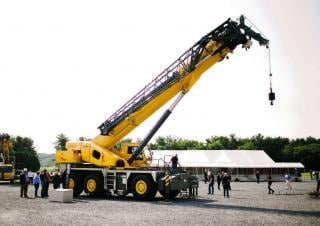

Rough-terrain Cranes Grove GRT9165
Rough-terrain Cranes Grove GRT9165
Rough-terrain Cranes Grove GRT9165
Rough-terrain Cranes Grove GRT9165
Rough-terrain Cranes Grove GRT9165
Rough-terrain Cranes Grove GRT9165

Technical specs - GRT9165 Grove

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
150 t
at reach
2 m
Carrying capacity
15.275 t
at max. reach
64 m
max. standard boom
62.5 m
Min. standard boom
13.7 m
Max. luffing jib
13.7 m
max. hook height
88.2 m
Engine power
224 kW
Travel speed
24 km/h
Number of axles
3
axle load
26 t
Wheels/Drive/Steering
4/4/4
Standard tyres
26.5x25
Tipping load
75 kg
Model series
GRT
Engine manuf.
Cummins
Engine type
B6.7
Displacement
6.7 l
Revolutions at max torque
2500 rpm
Max. torque
1288/1500 Nm
No. of cylinders
6
Emission level
Tier 4 f, V

More technical details, like: load torque, dimension lxwxh, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
Yes
max. luffing jib
No
Add. ballast
No

Download datasheets (PDF)

Grove GRT9165 overview

Transport

Swing

Variable speed, 360° continuous rotation. Planetary swing drive with foot actuated multi-disc brake. Spring-applied, hydraulically released swing brake. Two-position mechanical swing lock pin, operated from cab. Maximum speed: 1.1 rpm.


Boom

Boom Nose

Seven nylon sheaves mounted on heavy-duty tapered roller bearings with removable pin type guards. Quick reeve boom nose. Additionally, there is a removable single sheave auxiliary boom nose with a removable pin-type rope guard.


Cab & Display

Crane Control System (CCS)

The Crane Control System (CCS) offers a user-friendly interface, two full graphic adjustable displays mounted vertically for easier viewing, and a jog dial for easier navigation and data input. The system allows the electronic controllers to be programmed by the operator for specific speed and reaction. Parts commonality across Grove, Manitowoc, and Potain product lines enhances operator familiarization and serviceability. Additional features include ECO mode, Working Range Limiter (WRL), and Boom Configurator telescoping mode. Rated Capacity Limiter (RCL) with graphical display. Load moment and anti-two block system with audio-visual warning and control lever lockout. This system provides electronic display of boom angle, boom length, load radius, boom tip height, maximum permissible load, actual load, and warning of impending two-block condition. It also includes an Operating display which shows the crane operating indicators, levels, warnings, and faults. Other features include a Working Range Limiter (WRL) which allows the operator to preselect and define working areas. If the crane approaches the operator preset limits, audio-visual warnings aid the operator in avoiding obstructions. The ECO mode system controls engine rpm to lower noise and improve fuel consumption. Additionally, operator-programmable function speeds and ramps are available.
