GRT655 Grove crane - load chart, specs & dimensions (2018 - 2026)

max. carrying capacity: 51t – at reach: 2.5m – Carrying capacity: 0.52t – at max. reach: 44m – max. standard boom: 34.8m – Min. st…

max. carrying capacity: 51t – at reach: 2.5m – Carrying capacity: 0.52t – at max. reach: 44m – max. standard boom: 34.8m – Min. standard boom: 10.6m

See load chart, specs, capacity, size and other technical data for Grove GRT655 crane manufactured between 2018 - 2026. See information, like: max. carrying capacity: 51t – at reach: 2.5m – Carrying capacity: 0.52t – at max. reach: 44m – max. standard boom: 34.8m – Min. standard boom: 10.6m and more.

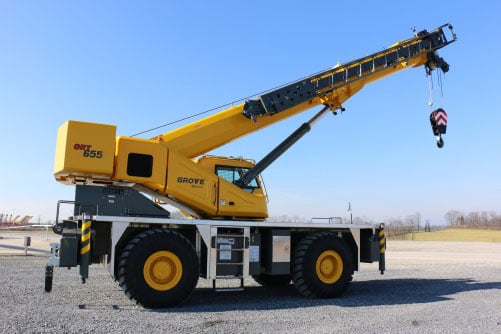

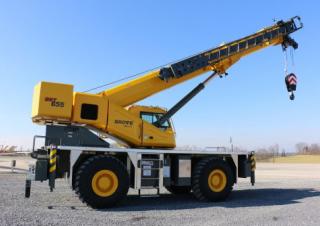

Rough-terrain Cranes Grove GRT655

Technical specs - GRT655 Grove

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
51 t
at reach
2.5 m
Carrying capacity
0.52 t
at max. reach
44 m
max. standard boom
34.8 m
Min. standard boom
10.6 m
Max. luffing jib
13.7 m
max. hook height
51.8 m
Engine power
122 kW
Travel speed
30 km/h
Number of axles
2
axle load
19 t
Wheels/Drive/Steering
4/4/4
Standard tyres
23.5x25
Tipping load
75 kg
Engine manuf.
Cummins
Engine type
QSB6.7L
Displacement
6.7 l
Revolutions at max torque
1500 rpm
Max. torque
732 Nm
No. of cylinders
6
Emission level
Tier 4 f, V

More technical details, like: load torque, model series, dimension lxwxh, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
max. luffing jib
No
Add. ballast
No
