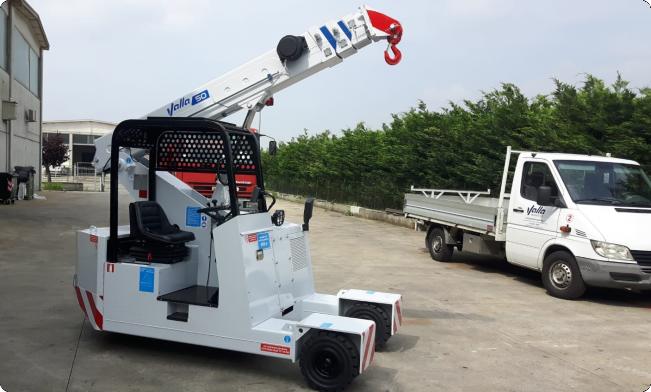

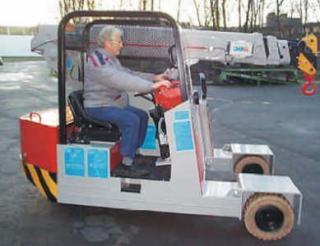

    Valla 50 D crane - load chart, specs (2005 - 2023)

    Rate this machine now!

    max. carrying capacity: 5t – at reach: 0.5m – Carrying capacity: 0.8t – at max. reach: 4.8m – max. standard boom: 7m – Min. standa... Read more

    max. carrying capacity: 5t – at reach: 0.5m – Carrying capacity: 0.8t – at max. reach: 4.8m – max. standard boom: 7m – Min. standard boom: 0.5m

    See load chart, specs, capacity, size and other technical data for Valla 50 D crane manufactured between 2005 - 2023. See information, like: max. carrying capacity: 5t – at reach: 0.5m – Carrying capacity: 0.8t – at max. reach: 4.8m – max. standard boom: 7m – Min. standard boom: 0.5m and more.

    Technical specs - 50 D Valla

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • max. carrying capacity 5 t
    • at reach 0.5 m
    • Carrying capacity 0.8 t
    • at max. reach 4.8 m
    • max. standard boom 7 m
    • Min. standard boom 0.5 m
    • max. hook height 7.5 m
    • Load Torque 25 kNm
    • Power source D
    • Engine power 5 kW
    • Travel speed 8 km/h
    • Standard tyres F: 16x7 - R8 R: 23x10 - R12
    • Engine manuf. Kubota
    • Engine type D1105T
    • No. of cylinders 3
    • Emission level III A

    More technical details, like: tipping load, outriggers spacing length, outriggers spacing width, weight, number of axles, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

    including hook block/s and freely moveable with the nominal load

    Special equipment

    • 2nd winch
    • max. luffing jib
    • Passenger cabin
    • MOT approval
    • Add. hook
