20 tm ORMIG crane - load chart, specs & dimensions (2003 - 2019)

max. carrying capacity: 20t – at reach: 0.7m – Carrying capacity: 3.1t – at max. reach: 7.7m – max. standard boom: 12.4m – Min. st…

max. carrying capacity: 20t – at reach: 0.7m – Carrying capacity: 3.1t – at max. reach: 7.7m – max. standard boom: 12.4m – Min. standard boom: 5.4m

See load chart, specs, capacity, size and other technical data for ORMIG 20 tm crane manufactured between 2003 - 2019. See information, like: max. carrying capacity: 20t – at reach: 0.7m – Carrying capacity: 3.1t – at max. reach: 7.7m – max. standard boom: 12.4m – Min. standard boom: 5.4m and more.

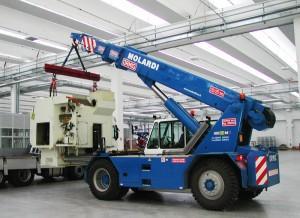

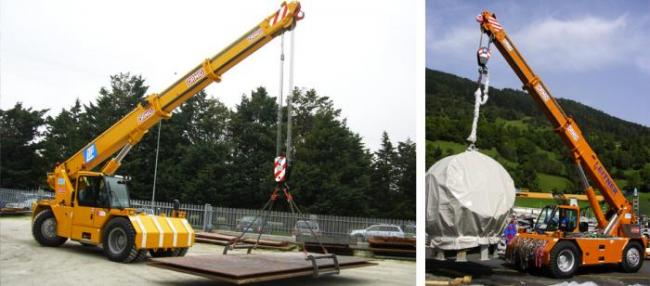

Industrial mobile cranes ORMIG 20 tm
Industrial mobile cranes ORMIG 20 tm
Industrial mobile cranes ORMIG 20 tm
Industrial mobile cranes ORMIG 20 tm

Technical specs - 20 tm ORMIG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
20 t
at reach
0.7 m
Carrying capacity
3.1 t
at max. reach
7.7 m
max. standard boom
12.4 m
Min. standard boom
5.4 m
Load Torque
140 kNm
Power source
Diesel
Engine power
101 kW
Travel speed
27.5 km/h
Standard tyres
12.00-24
Model series
tm

More technical details, like: max. hook height, tipping load, outriggers spacing length, outriggers spacing width, weight, number of axles, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: max. hook height, tipping load, outriggers spacing length, outriggers spacing width, weight, number of axles, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

including hook block/s and freely moveable with the nominal load

Special equipment

2nd winch
No
max. luffing jib
No
Passenger cabin
Yes
MOT approval
No
Add. hook
Yes
