MC 400 JMG crane - load chart, specs & dimensions (2024 - 2026)

max. carrying capacity: 40t – Carrying capacity: 5.9t – max. standard boom: 8.44m – Min. standard boom: 1m – max. hook height: 14m…

max. carrying capacity: 40t – Carrying capacity: 5.9t – max. standard boom: 8.44m – Min. standard boom: 1m – max. hook height: 14m – Power source: Electric

See load chart, specs, capacity, size and other technical data for JMG MC 400 crane manufactured between 2024 - 2026. See information, like: max. carrying capacity: 40t – Carrying capacity: 5.9t – max. standard boom: 8.44m – Min. standard boom: 1m – max. hook height: 14m – Power source: Electric and more.

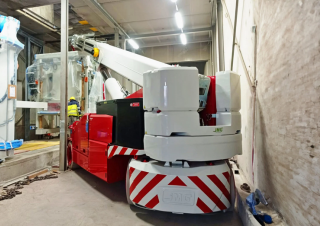

Industrial mobile cranes JMG MC 400
Industrial mobile cranes JMG MC 400
Industrial mobile cranes JMG MC 400
Industrial mobile cranes JMG MC 400
Industrial mobile cranes JMG MC 400
Industrial mobile cranes JMG MC 400
Industrial mobile cranes JMG MC 400
Industrial mobile cranes JMG MC 400

Technical specs - MC 400 JMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
40 t
Carrying capacity
5.9 t
max. standard boom
8.44 m
Min. standard boom
1 m
max. hook height
14 m
Power source
Electric
Engine power
35 kW
Standard tyres
Fr. 4x 840x350x559
Weight
33.5 t
Number of axles
2
Model series
MC

More technical details, like: at reach, at max. reach, load torque, travel speed, tipping load, outriggers spacing length, outriggers spacing width, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: at reach, at max. reach, load torque, travel speed, tipping load, outriggers spacing length, outriggers spacing width, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

including hook block/s and freely moveable with the nominal load

Special equipment

2nd winch
No
max. luffing jib
No
Passenger cabin
No
MOT approval
No
Add. hook
No
