max. carrying capacity: 8.1t – at reach: 3.6m – max. standard boom: 10.12m – Min. standard boom: 4.2m – Engine power: 55kW – Trave…
max. carrying capacity: 8.1t – at reach: 3.6m – max. standard boom: 10.12m – Min. standard boom: 4.2m – Engine power: 55kW – Travel speed: 30.9km/h

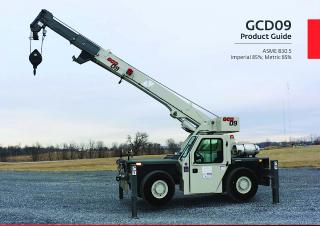

See load chart, specs, capacity, size and other technical data for Grove GCD09 crane manufactured between 2018 - 2026. See information, like: max. carrying capacity: 8.1t – at reach: 3.6m – max. standard boom: 10.12m – Min. standard boom: 4.2m – Engine power: 55kW – Travel speed: 30.9km/h and more.
More technical details, like: carrying capacity, at max. reach, max. hook height, load torque, power source, tipping load, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
including hook block/s and freely moveable with the nominal load
Simple operator cab features hydraulic joystick controls, easy-to-set up graphic RCL system, common automotive dash panel with gauges, indicator lights and rocker switches. Fully adjustable seat and tilting steering wheel are standard features. The optional enclosed cab with split door design for additional comfort.
Steering
The GCD09 comes standard with three steering modes: Front (two-wheel), four-wheel coordinated, and four-wheel crab steer with electronic self-alignment. Operators can choose between modes using a three-position rocker switch located on dash panel.
Options
Convenience package includes pintle hitches and light grilles Lighting package includes amber strobe light and boom-mounted work lights Below-deck winch Air-conditioning
Axle
Lifting Capacities
Capacities are in pounds and do not exceed 75% of tipping loads as determined by test in accordance with SAE J765. Capacities are applicable to machines equipped with 10.00x15 (16 ply) at 125 psi cold inflation pressure. Capacities are applicable only with the machine on a smooth, level and firm surface. Defined Arc - Over front includes 8° on either side of the longitudinal centerline of the machine. All rubber lifting depends on proper tire inflation, capacity, and condition. Capacities must be reduced for lower tire inflation pressures. Damaged tires are hazardous to the safe operation of the crane. For pick and carry operation, the boom, using the shortest practical boom length, must be centered over the front of the machine. Maximum speed is 2.5 mph, and rubber lifting with boom extension is not permitted.
Work
Outriggers
The GCD09 outriggers are two-position (0% and 100%) beam/jack style with integral steel outrigger pads. Equipped with independent outrigger controls.
Manitowoc Crane Care
The assurance of the world’s most advanced crane service and support to get you back to work fast.
Boom
Transportation and Lifting Data
Lifting of entire crane or major crane assemblies must be accomplished by utilizing specific fittings indicated on the adjacent chart. The use of fittings for purposes other than those designated on the chart is prohibited. Fitting capacities are maximum allowable loads per individual fitting. Rigging personnel shall be responsible for the proper selection and placement of all slings and load handling devices. Dimensions and weights shown are estimated for the largest configuration available. Weights do not include boom extension and/or jib, unless otherwise indicated. Rigging personnel shall verify dimensions as required for clearance. Additionally, do not use counterweight lift locations or boom sling points for lifting or tie down of the entire crane. Lifting of the counterweight must be accomplished with a properly rated 'B'-unit fitting.
