UNIC B-780.2
- max. carrying capacity:
- 8 t
- at reach:
- 2 m
- Carrying capacity:
- 0.03 t
- at max. reach:
- 8.65 m

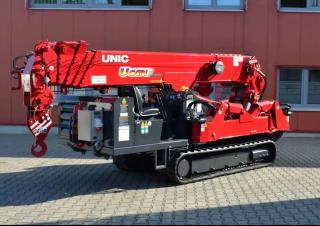

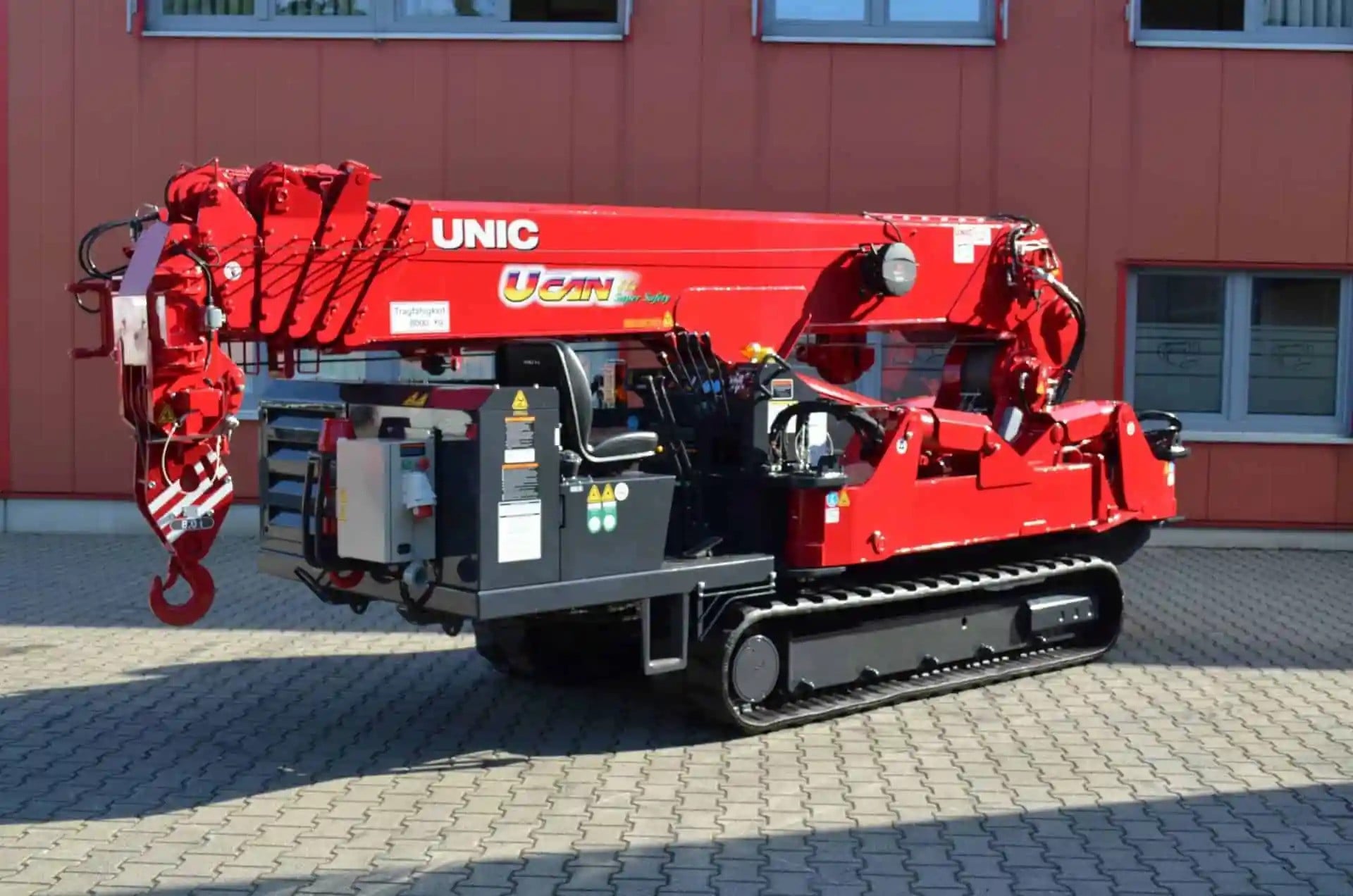

B-780.2 UNIC crane - load chart, specs & dimensions (2015 - 2026)
Technical specs - B-780.2 UNIC
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 8 t
- at reach
- 2 m
- Carrying capacity
- 0.03 t
- at max. reach
- 8.65 m
- max. standard boom
- 19.2 m
- Min. standard boom
- 4.8 m
- Max. luffing jib
- 3.1 m
- max. hook height
- 19.5 m
- Engine power
- 23 kW
- Travel speed
- 2.88 km/h
- Soil pressure
- 0.46 kg/cm²
- Model series
- B
More technical details, like: add. ballast, load torque, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- max. luffing jib
-
No
- Add. ballast
-
No
