GTC-900 Tadano crane - load chart, specs & dimensions (2021 - 2026)

max. carrying capacity: 90t – at reach: 3m – Carrying capacity: 2.087t – at max. reach: 40,843 m – max. standard boom: 43m – Min. …

max. carrying capacity: 90t – at reach: 3m – Carrying capacity: 2.087t – at max. reach: 40,843 m – max. standard boom: 43m – Min. standard boom: 11.491m

See load chart, specs, capacity, size and other technical data for Tadano GTC-900 crane manufactured between 2021 - 2026. See information, like: max. carrying capacity: 90t – at reach: 3m – Carrying capacity: 2.087t – at max. reach: 40,843 m – max. standard boom: 43m – Min. standard boom: 11.491m and more.

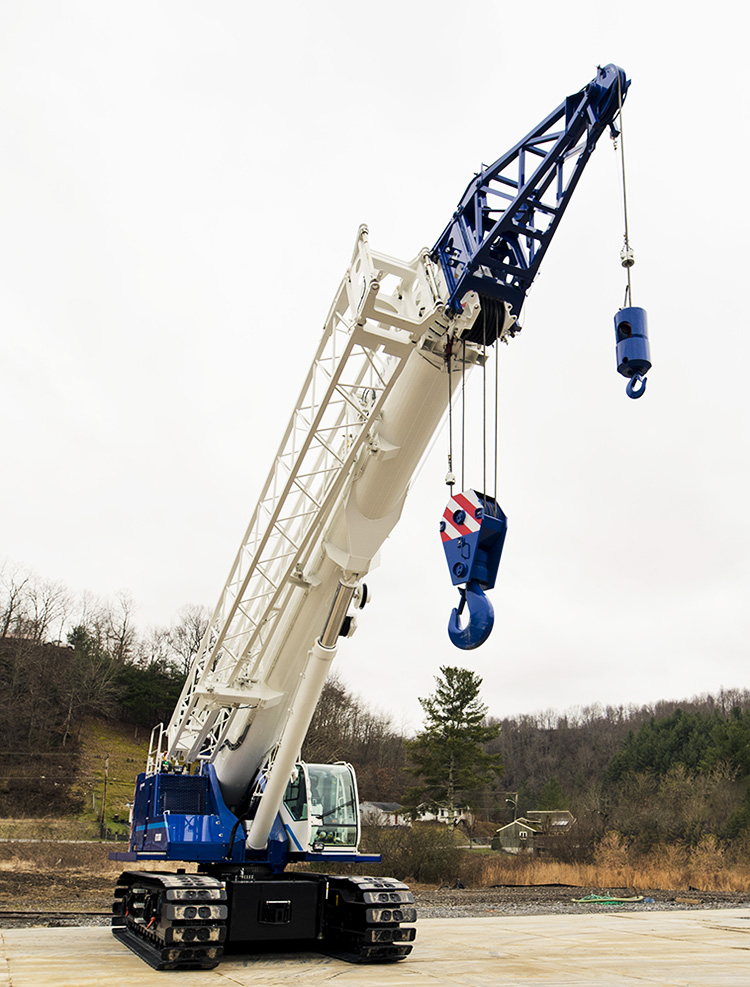

Crawler cranes - Telescopic boom Tadano GTC-900

Technical specs - GTC-900 Tadano

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
90 t
at reach
3 m
Carrying capacity
2.087 t
at max. reach
40,843  m
max. standard boom
43 m
Min. standard boom
11.491 m
Max. luffing jib
17.709 m
Engine power
231 kW
Travel speed
3.4 km/h

More technical details, like: max. hook height, add. ballast, load torque, soil pressure, model series, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: max. hook height, add. ballast, load torque, soil pressure, model series, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Including hook block

Special equipment

2nd winch
Yes
max. luffing jib
Yes
Add. ballast
No

Download datasheets (PDF)
