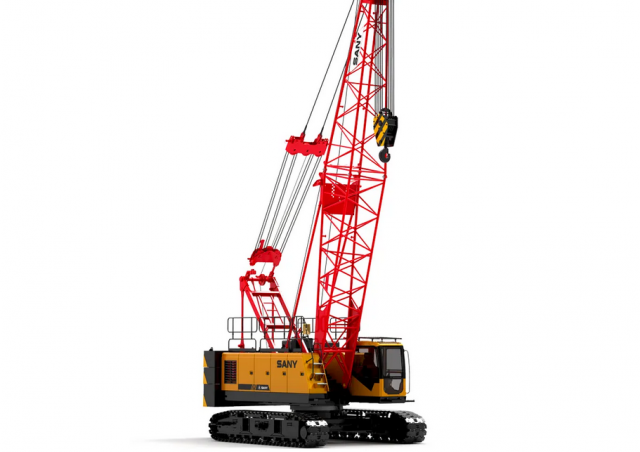

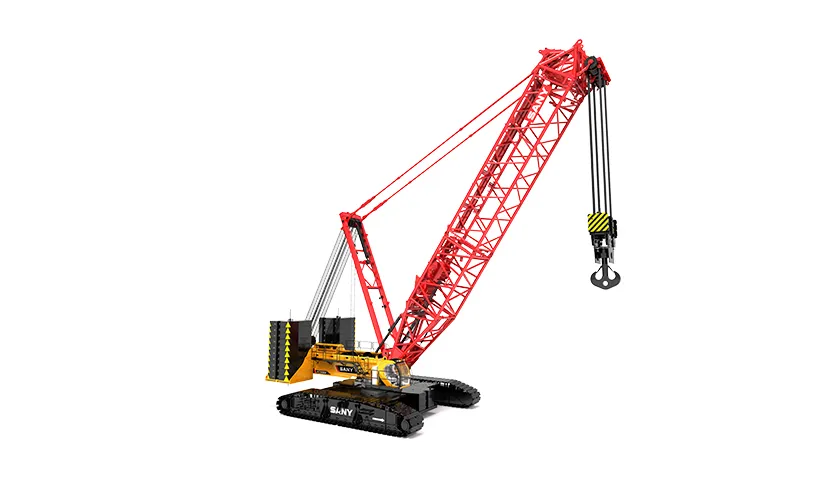

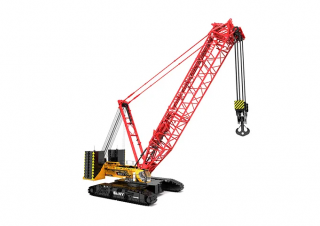

SCC7500A Sany crane - load chart, specs & dimensions (2025 - 2026)
.png)
.png)
Visit Sany live at
Technical specs - SCC7500A Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 750 t
- at reach
- 5.5 m
- Carrying capacity
- 10.5 t
- at max. reach
- 100 m
- max. standard boom
- 96 m
- Min. standard boom
- 24 m
- Max. luffing jib
- 192 m
- Engine power
- 447 kW
- Travel speed
- 1 km/h
- Model series
- SCC
- Engine manuf.
- Cummins
- Engine type
- QSX15 C-600
- Displacement
- 15 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 2542/1400 Nm
- No. of cylinders
- 6
- Emission level
- Tier III
More technical details, like: max. hook height, load torque, soil pressure, dimension lxwxh, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- Add. ballast
-
No
- Basic boom
-
No
- Tip extension
-
No
Download datasheets (PDF)
