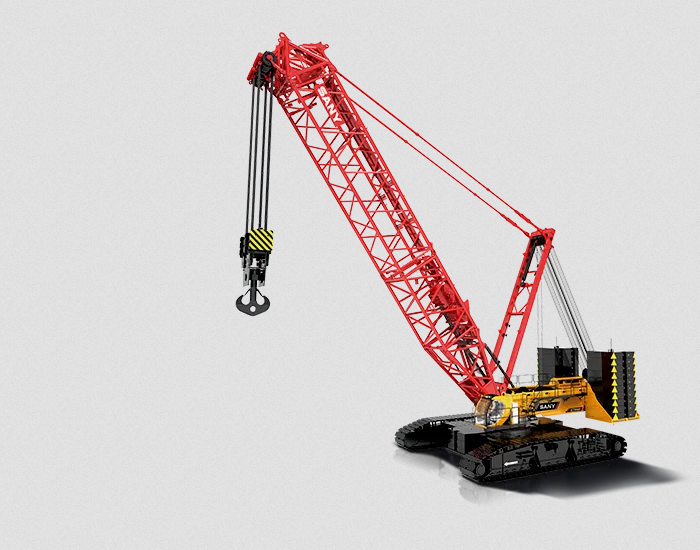

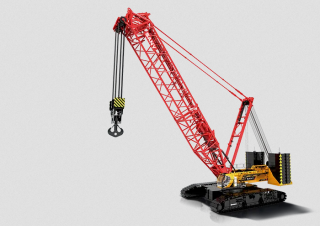

Technical specs - SCC6000A Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 600 t
- at reach
- 6 m
- Carrying capacity
- 8.7 t
- at max. reach
- 88 m
- max. standard boom
- 84 m
- Min. standard boom
- 24 m
- Max. luffing jib
- 168 m
- Engine power
- 390 kW
- Travel speed
- 1 km/h
- Model series
- SCC
- Engine manuf.
- Weichai
- Engine type
- WP13G530E310
- Displacement
- 12.54 l
- Revolutions at max torque
- 2100 rpm
- Max. torque
- 2300/1600 Nm
- No. of cylinders
- 6
- Emission level
- China Tier III
More technical details, like: max. hook height, load torque, soil pressure, dimension lxwxh, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- Add. ballast
-
No
- Basic boom
-
No
- Tip extension
-
No
Download datasheets (PDF)
