Kobelco CKS3000 crane - load chart, specs (2020 - 2025)

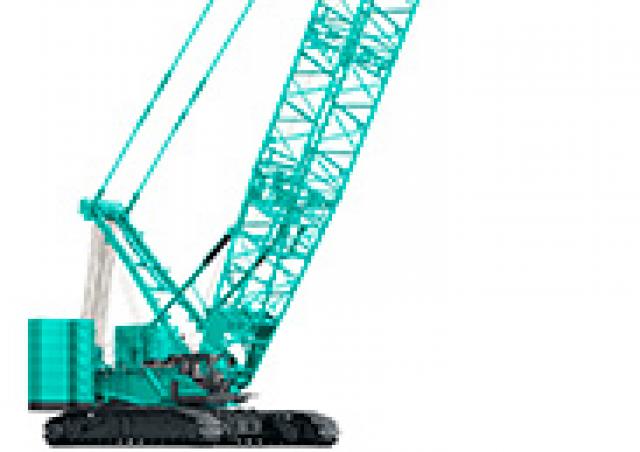

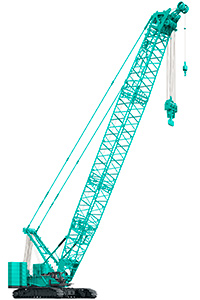

Name: Kobelco CKS3000 Crawler cranes - Lattice boom
Brand: Kobelco

max. carrying capacity: 300t – at reach: 5.5m – Carrying capacity: 2.7t – at max. reach: 90.5m – max. standard boom: 90m – Min. st…

max. carrying capacity: 300t – at reach: 5.5m – Carrying capacity: 2.7t – at max. reach: 90.5m – max. standard boom: 90m – Min. standard boom: 24m

See load chart, specs, capacity, size and other technical data for Kobelco CKS3000 crane manufactured between 2020 - 2025. See information, like: max. carrying capacity: 300t – at reach: 5.5m – Carrying capacity: 2.7t – at max. reach: 90.5m – max. standard boom: 90m – Min. standard boom: 24m and more.

CKS3000

Years of manufacture: 2020—2025

Data sheet
Buy & Rent
Spare parts
Transport
Events & News

Technical specs - CKS3000 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity: 300 t

at reach: 5.5 m

Carrying capacity: 2.7 t

at max. reach: 90.5 m

max. standard boom: 90 m

Min. standard boom: 24 m

Max. luffing jib: 66 m

Engine power: 331 kW

Travel speed: 1 km/h

Engine manuf.: Scania

Engine type: DC13 76A

Displacement: 12.7 l

Revolutions at max torque: 1600 rpm

Max. torque: 2007 Nm

No. of cylinders: 6

Cylinder bore x stroke: 130x160 mm

Emission level: Stage IIIA. Tier 3

More technical details, like: max. hook height, load torque, soil pressure, model series, dimension lxwxh, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch: No
Add. ballast: No
Basic boom: Yes
Tip extension: No
