STC700C5 Sany crane - load chart, specs & dimensions (2025 - 2026)

max. carrying capacity: 70t – at reach: 2.5m – Carrying capacity: 1t – at max. reach: 40m – max. standard boom: 46m – Min. standar…

max. carrying capacity: 70t – at reach: 2.5m – Carrying capacity: 1t – at max. reach: 40m – max. standard boom: 46m – Min. standard boom: 11.92m

See load chart, specs, capacity, size and other technical data for Sany STC700C5 crane manufactured between 2025 - 2026. See information, like: max. carrying capacity: 70t – at reach: 2.5m – Carrying capacity: 1t – at max. reach: 40m – max. standard boom: 46m – Min. standard boom: 11.92m and more.

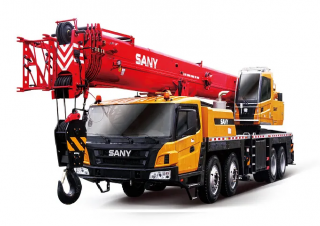

All-terrain Cranes Sany STC700C5
All-terrain Cranes Sany STC700C5
All-terrain Cranes Sany STC700C5
All-terrain Cranes Sany STC700C5

Visit Sany live at

Technical specs - STC700C5 Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
70 t
at reach
2.5 m
Carrying capacity
1 t
at max. reach
40 m
max. standard boom
46 m
Min. standard boom
11.92 m
Max. luffing jib
62 m
max. hook height
62.5 m
Load Torque
2156 kNm
Travel speed
85 km/h
Number of axles
4
Wheels/Drive/Steering
8x4x4
axle load
43.2 t
Standard tyres
325/90R24 + 315/80R22.5
Outriggers spacing length
6.24 m
Outriggers spacing width
7.7 m
Model series
STC
Engine manuf.
Cummins China
Engine type
ISLe340 30
Engine power
250 kW
Revolutions at max torque
2100 rpm
Max. torque
1425/1400 Nm
No. of cylinders
6
Emission level
Euro III

More technical details, like: undercarriage engine, superstructure engine, tipping load, dimension lxwxh, displacement, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
max. luffing jib
No
max. fold hydr.
No
Erection tip
No
Foucault current brake
No
Add. ballast
No
