STC250C5 Sany crane - load chart, specs & dimensions (2025 - 2026)

max. carrying capacity: 25t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 32m – max. standard boom: 41m – Min. standar…

max. carrying capacity: 25t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 32m – max. standard boom: 41m – Min. standard boom: 10.7m

See load chart, specs, capacity, size and other technical data for Sany STC250C5 crane manufactured between 2025 - 2026. See information, like: max. carrying capacity: 25t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 32m – max. standard boom: 41m – Min. standard boom: 10.7m and more.

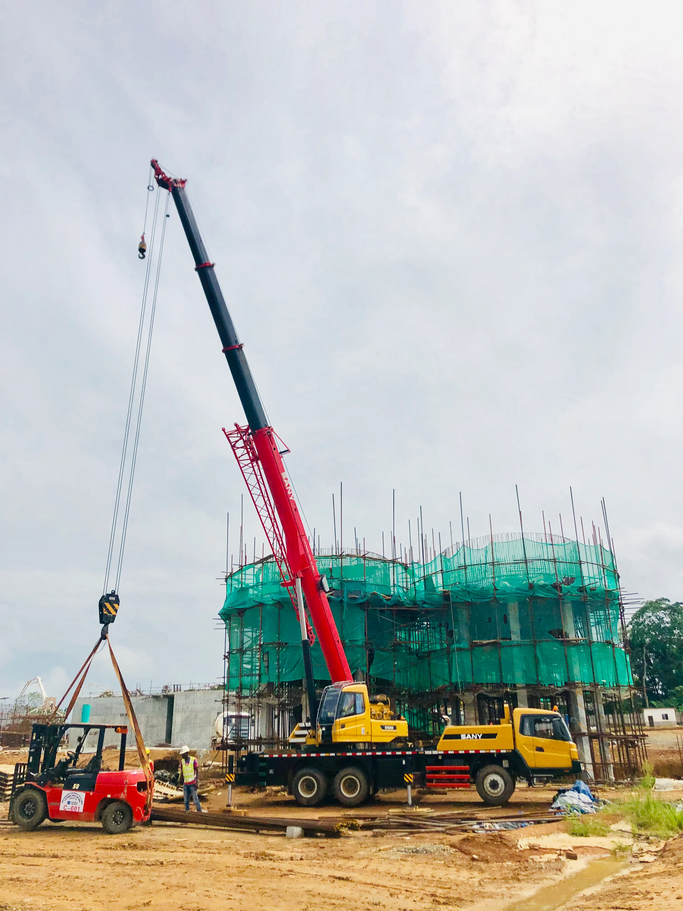

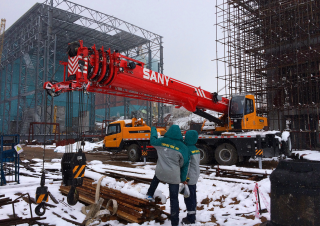

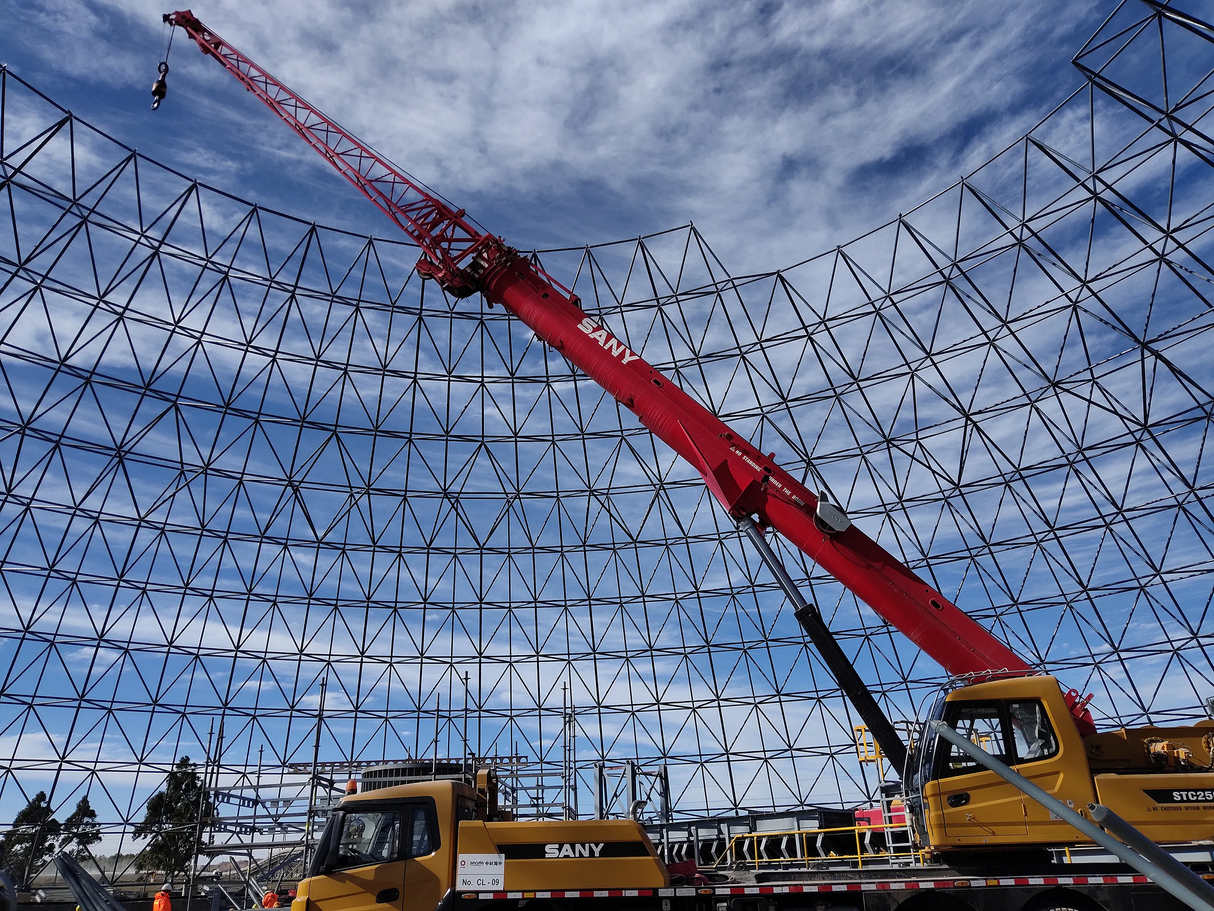

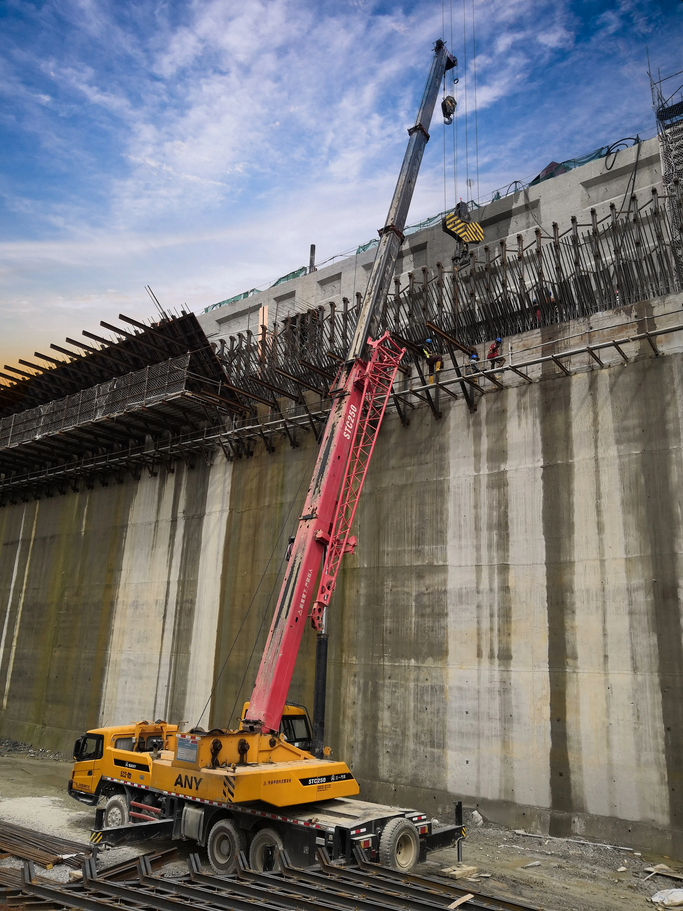

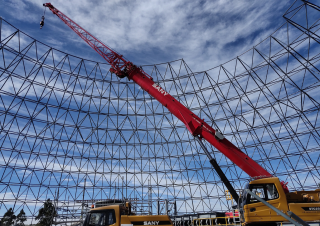

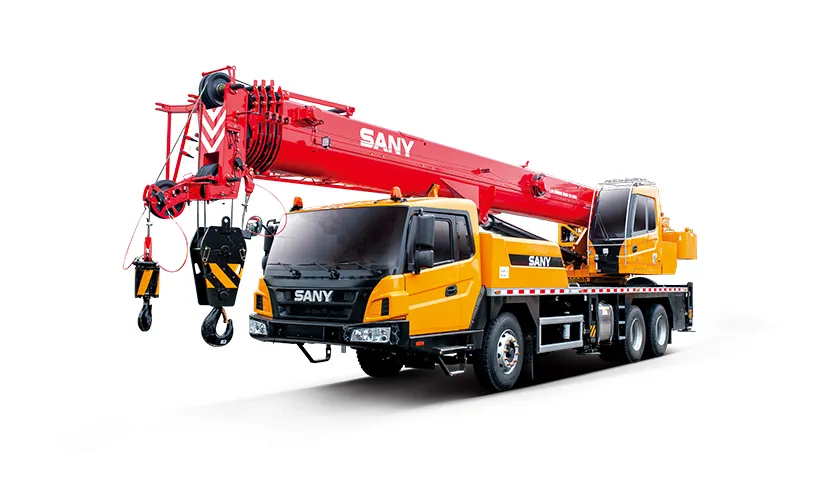

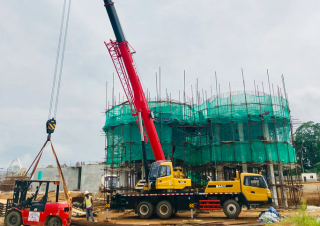

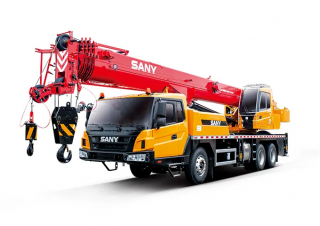

All-terrain Cranes Sany STC250C5
All-terrain Cranes Sany STC250C5
All-terrain Cranes Sany STC250C5
All-terrain Cranes Sany STC250C5
All-terrain Cranes Sany STC250C5
All-terrain Cranes Sany STC250C5
All-terrain Cranes Sany STC250C5
All-terrain Cranes Sany STC250C5
All-terrain Cranes Sany STC250C5
All-terrain Cranes Sany STC250C5

Visit Sany live at

Technical specs - STC250C5 Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
25 t
at reach
3 m
Carrying capacity
0.6 t
at max. reach
32 m
max. standard boom
41 m
Min. standard boom
10.7 m
Max. luffing jib
49 m
max. hook height
49 m
Load Torque
1088 kNm
Travel speed
85 km/h
Number of axles
3
Wheels/Drive/Steering
6x4
axle load
32.1 t
Standard tyres
12.00R22.5
Outriggers spacing length
5.28 m
Outriggers spacing width
6.4 m
Model series
STC
Engine manuf.
Weichai
Engine type
WP7.300E31
Engine power
220 kW
Revolutions at max torque
2100 rpm
Max. torque
1250/1600 Nm
No. of cylinders
6
Emission level
Euro III

More technical details, like: undercarriage engine, superstructure engine, tipping load, dimension lxwxh, displacement, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
max. luffing jib
No
max. fold hydr.
No
Erection tip
No
Foucault current brake
No
Add. ballast
No
