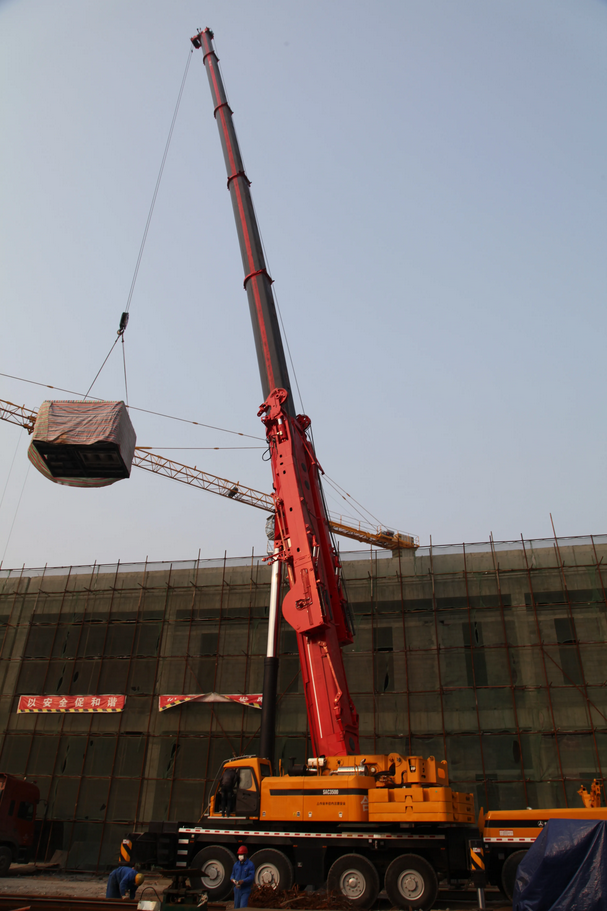

SAC3500T7 Sany crane - load chart, specs & dimensions (2023 - 2026)
Visit Sany live at
Technical specs - SAC3500T7 Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 350 t
- at reach
- 3 m
- Carrying capacity
- 3.3 t
- at max. reach
- 70 m
- max. standard boom
- 81 m
- Min. standard boom
- 30.3 m
- Max. luffing jib
- 36 m
- max. hook height
- 117 m
- Load Torque
- 9900 kNm
- Undercarriage engine
- 390 kW
- Superstructure engine
- 205 kW
- Travel speed
- 80 km/h
- Number of axles
- 6
- Wheels/Drive/Steering
- 12/8/12
- Standard tyres
- 16.00R25 (445/95 R25)
- Model series
- SAC
- Engine manuf.
- Mercedes-Benz
- Engine type
- OM471LA.E3A-7
- Engine power
- 390 kW
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 2600 Nm
- No. of cylinders
- 6
- Emission level
- EU Stage ⅢA
More technical details, like: axle load, tipping load, outriggers spacing length, outriggers spacing width, dimension lxwxh, displacement, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- max. luffing jib
-
No
- max. fold hydr.
-
No
- Erection tip
-
No
- Foucault current brake
-
No
- Add. ballast
-
No
