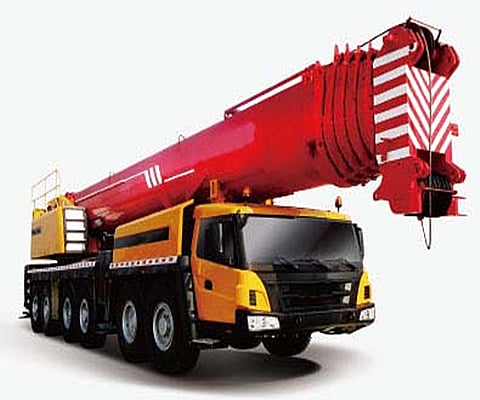

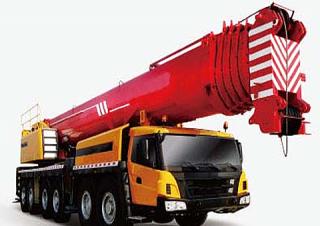

SAC3500 Sany crane - load chart, specs & dimensions (2017 - 2020)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Sany live at
Technical specs - SAC3500 Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 350 t
- at reach
- 3 m
- Carrying capacity
- 2 t
- at max. reach
- 94 m
- max. standard boom
- 70 m
- Min. standard boom
- 15.2 m
- Max. luffing jib
- 78 m
- max. hook height
- 132 m
- Load Torque
- 11520 kNm
- Undercarriage engine
- 440 kW
- Superstructure engine
- 205 kW
- Travel speed
- 80 km/h
- Number of axles
- 6
- Wheels/Drive/Steering
- 12/8/12
- axle load
- 12 t
- Standard tyres
- 16.00 R25
- Outriggers spacing length
- 8.95 m
- Outriggers spacing width
- 8.6 m
- Model series
- SAC
- Engine manuf.
- Sany
- Engine type
- V-type
- Engine power
- 440 kW
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 2800 Nm
- No. of cylinders
- 8
- Emission level
- EURO IV
More technical details, like: tipping load, dimension lxwxh, displacement, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- max. luffing jib
-
No
- max. fold hydr.
-
No
- Erection tip
-
No
- Foucault current brake
-
No
- Add. ballast
-
No
Download datasheets (PDF)
