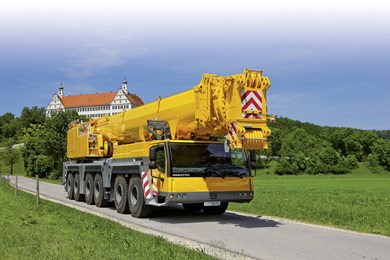

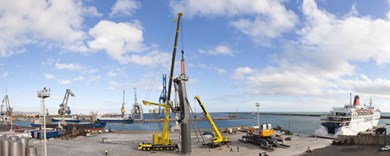

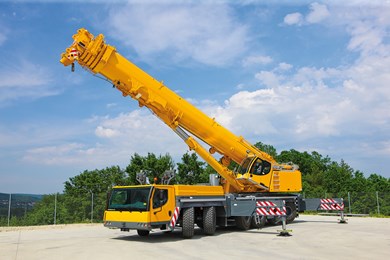

LTM 1350-6.1  Liebherr crane - load chart, specs & dimensions (2010 - 2022)

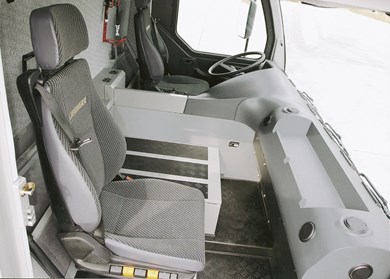

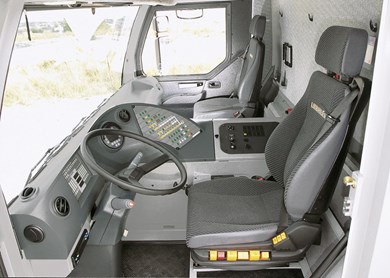

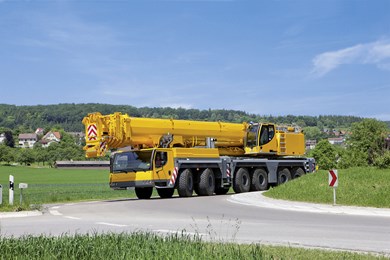

High mobility and efficiency

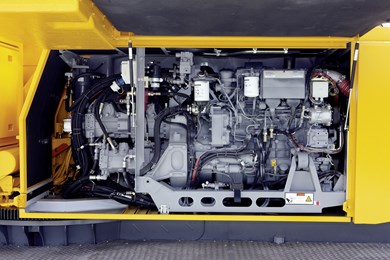

A high performance 8-cylinder Liebherr turbo diesel engine with 450 kW/612 HP provides for dynamic driving performance. The 12-speed ZF-gearbox with automatic gear change system TC-TRONIC grants high efficiency and best comfort.

Active rear axle steering

The rear axles are electro-hydraulically actively steered depending on the speed and the steering angle of the front axles. 5 steering programs (P) are preselectable by push button. Distinct reduction of the tyre wear. Improvement of the manoeuvrability. Stabile driving performance also at high speeds. All 6 axles steerable, no lifting of the centre axles at crab steering.

High safety standards – complete know-how from Liebherr

Centralizing cylinders for automatic straightening of the rear axles in case of failure. Two independent hydraulic circuits with wheel driven and motor driven hydraulic pumps. Two independent steering computers.

P2 All-wheel steering

The axles 3, 4, 5 and 6 are turned by the steering wheel depending on the steering angle of the front axle to provide for the smallest turning radius.

P4 Reduced swing out

The axles 3, 4, 5 and 6 are turned depending on the wheel turn of the front axles to minimize the back swing of the rear of the chassis.

The fully automatic telescoping system "TELEMATIK"

Improvement of capacities at long booms and large radii due to "lightweight" telescoping system1-stage hydraulic cylinder with hydraulically operated drive pinMaintenance free telescoping systemTelescoping fully automaticSimple operation, supervision of telescoping at the LICCON monitor

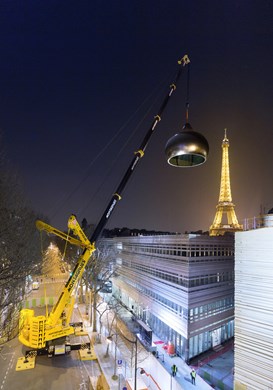

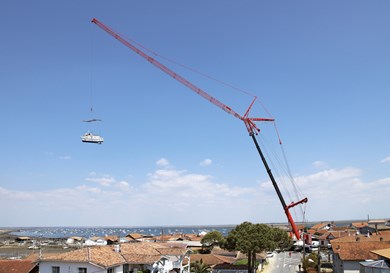

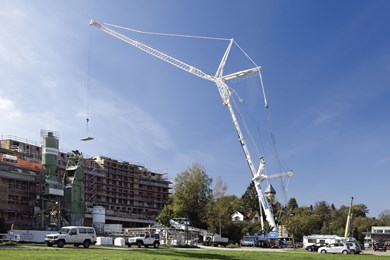

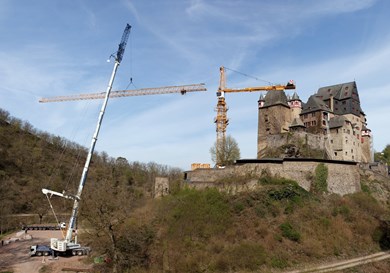

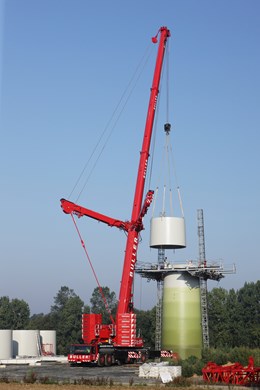

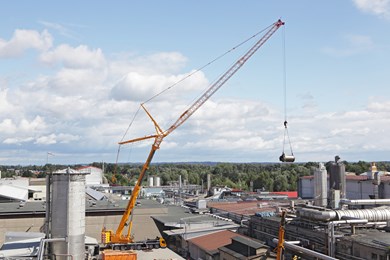

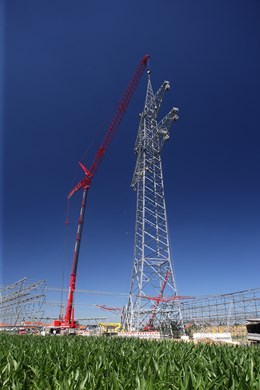

Powerful, long telescopic boom and functional lattice extensions

The telescopic boom consists of the base section and 5 telescopic sections, which can be comfortably and automatically extended and pinned to the requested length by the thousand fold proven single cylinder telescoping system TELEMATIK.70 m long telescopic boom78 m long luffing jib42 m long fixed jib (0°, 20°, 40°, 60°)Stepless interpolation of capacities during luffing of the boom combination between 82° and 68° telescopic boom angleY-telescopic boom suspension, self assembly

Attaching and detaching of the hook block

The BTT – Bluetooth Terminal offers the crane driver the possibility to attach or detach the hook block at the front of the vehicle within sight, as the hoist winch and the luffing cylinder of the telescopic boom are remote controlled.

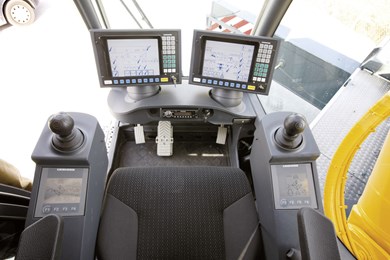

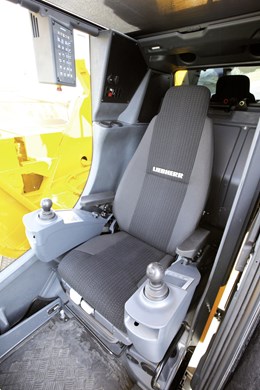

Colour monitor

The readability of the data on the monitor of the LICCON2 control in the superstructure cab is improved by the colour display. Warnings and the crane utilization are easier detectable.

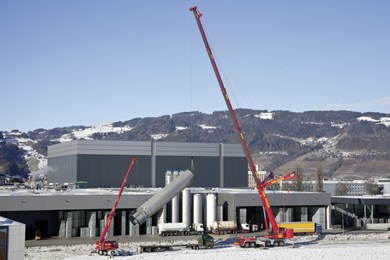

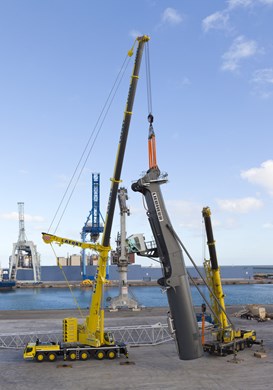

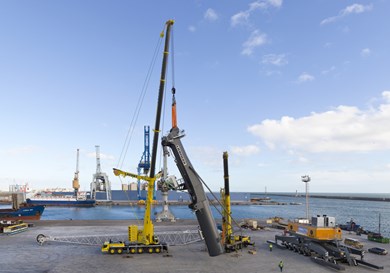

High capacities with full counterweight

High lateral stability due to the oval boom profileOptimized capacities due to the numerous extension variationsCapacity 34.7 t at 70 m long suspended telescopic boom

High capacities at unpinned boom lengths

High telescopable capacities due to interpolationSeparate capacity charts for holding of loads at unpinned boom lengthsDisplay at LICCON-monitor

The LICCON working range limiting system

Relief for the crane driver by automatic supervision of the working range boundaries like bridges, roofs etc.Simple programmingFour different limiting functions: - Boom head height limiting - Radius limiting - Slewing angle limiting - Border limiting.

The LICCON working planner

Computer program for planning, simulation and documentation of crane operations at the computerDisplay of all load charts belonging to a specific craneAutomatic search of a suitable crane by input of the load case parameters load, radius and hoisting heightSimulation of crane operations with drawing functions and display of support forces.
