Liebherr LTM 1070-4.2  crane - load chart, specs (2008 - 2024)

Model rating
8,00 / 10

max. carrying capacity: 70t – at reach: 2.5m – Carrying capacity: 0.7t – at max. reach: 48m – max. standard boom: 50m – Min. stand…

max. carrying capacity: 70t – at reach: 2.5m – Carrying capacity: 0.7t – at max. reach: 48m – max. standard boom: 50m – Min. standard boom: 11m

See load chart, specs, capacity, size and other technical data for Liebherr LTM 1070-4.2  crane manufactured between 2008 - 2024. See information, like: max. carrying capacity: 70t – at reach: 2.5m – Carrying capacity: 0.7t – at max. reach: 48m – max. standard boom: 50m – Min. standard boom: 11m and more.

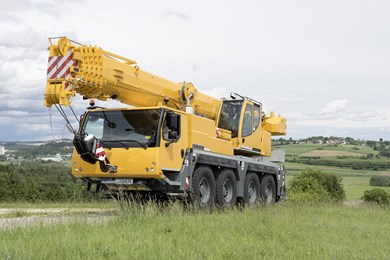

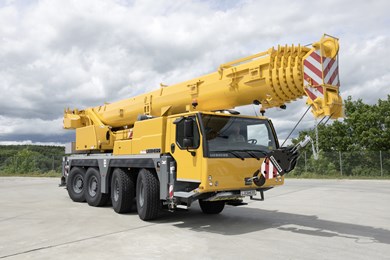

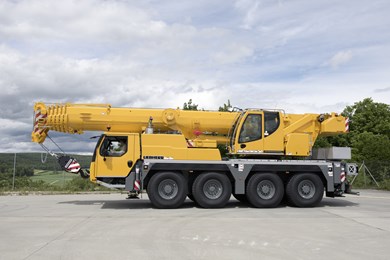

All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2
All-terrain Cranes Liebherr LTM 1070-4.2

Technical specs - LTM 1070-4.2  Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
70 t
at reach
2.5 m
Carrying capacity
0.7 t
at max. reach
48 m
max. standard boom
50 m
Min. standard boom
11 m
Max. luffing jib
16 m
max. hook height
65 m
Load Torque
1980 kNm
Undercarriage engine
330 kW
Travel speed
80 km/h
Number of axles
4
Wheels/Drive/Steering
8/4/8
Standard tyres
385/95 R25
Outriggers spacing length
7.991 m
Outriggers spacing width
6.3 m
Model series
LTM
Engine manuf.
Liebherr
Engine type
N/A
Engine power
330 kW
Max. torque
2335 Nm
No. of cylinders
6
Emission level
EPA

More technical details, like: superstructure engine, axle load, tipping load, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
Yes
max. luffing jib
Yes
max. fold hydr.
Yes
Erection tip
Yes
Foucault current brake
No
Add. ballast
Yes
