    Lectura specs Cranes All-terrain Cranes All-terrain Cranes Grove Grove GMK3060L-1 specifications

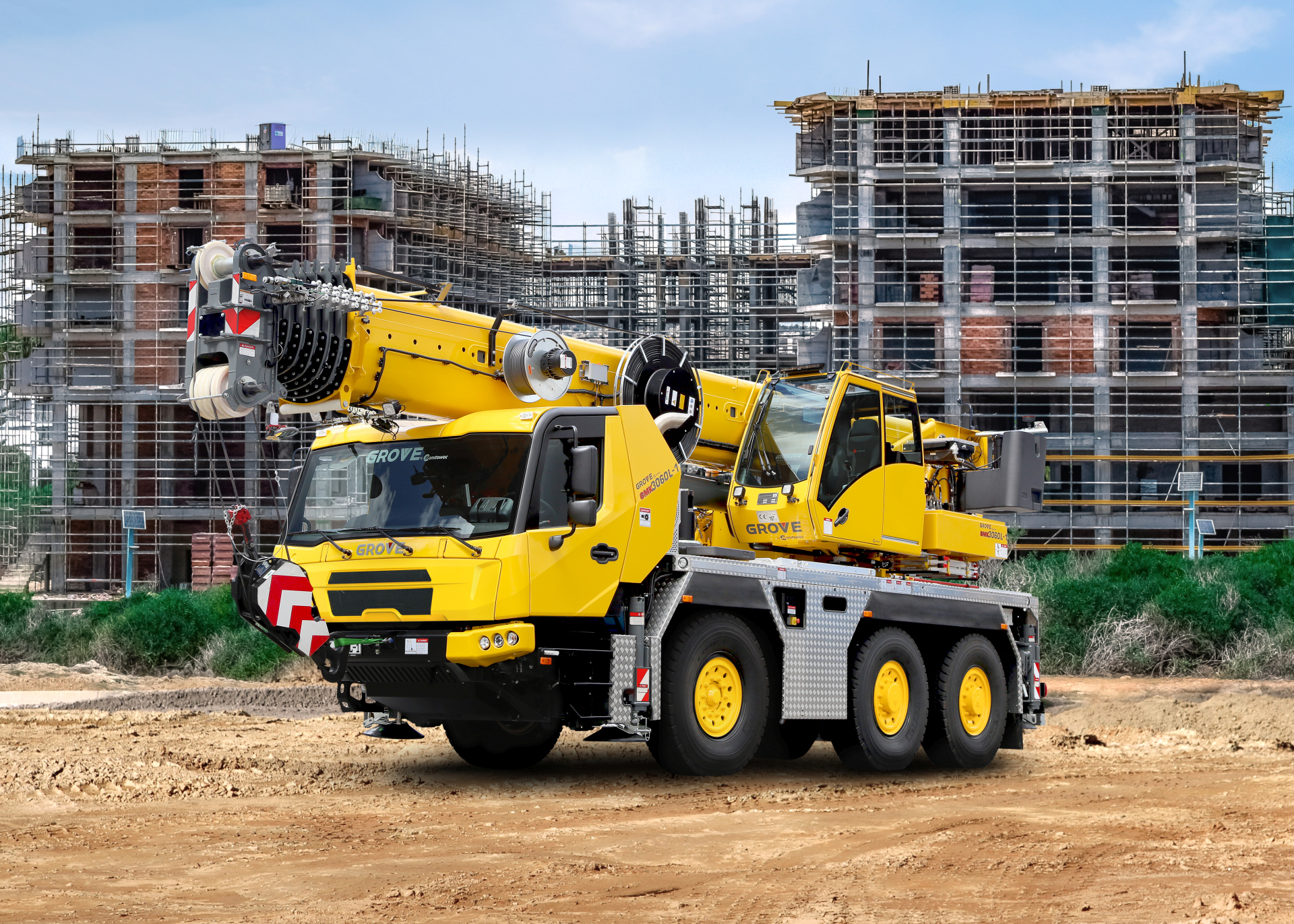

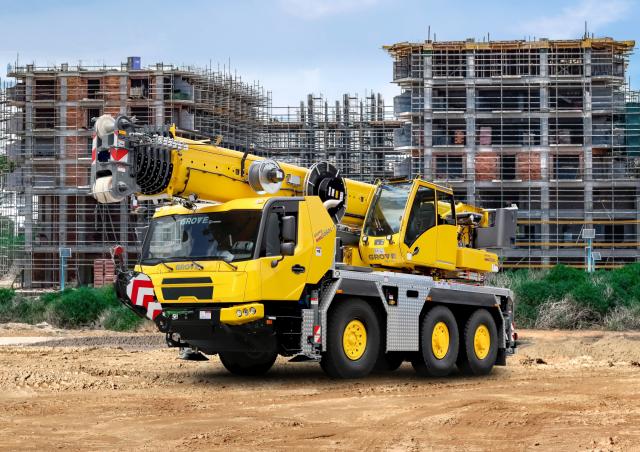

    Grove GMK3060L-1 crane - load chart, specs (2021 - 2022)

    Rate this machine now!

    See load chart, specs, capacity, size and other technical data for Grove GMK3060L-1 crane manufactured between 2021 - 2022. See in... Read more

    See load chart, specs, capacity, size and other technical data for Grove GMK3060L-1 crane manufactured between 2021 - 2022. See information, like: max. carrying capacity: 60t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 48m – max. standard boom: 48m – Min. standard boom: 9.6m and more.

    Technical specs - GMK3060L-1 Grove

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • max. carrying capacity 60 t
    • at reach 3 m
    • Carrying capacity 0.6 t
    • at max. reach 48 m
    • max. standard boom 48 m
    • Min. standard boom 9.6 m
    • Max. luffing jib 15 m
    • max. hook height 65 m
    • Load Torque 165 kNm
    • Undercarriage engine 254 kW
    • Travel speed 80 km/h
    • Number of axles 3
    • Wheels/Drive/Steering 6/4/6
    • axle load 12 t
    • Standard tyres 445/95 R25
    • Outriggers spacing length 6.825 m
    • Outriggers spacing width 6.2 m
    • Engine manuf. Cummins
    • Engine type QSL9-C350
    • Engine power 254 kW
    • Revolutions at max torque 1400 rpm
    • Max. torque 1526 Nm
    • No. of cylinders 6
    • Emission level Euromot 5 / EPA / CARB Tier 3
    • Superstructure engine ###
    • Tipping load ###
    • Dimension lxwxh ###
    • Displacement ###
    • Cylinder bore x stroke ###
    • Weight ###

    Including hook block

    Special equipment

    • 2nd winch
    • max. luffing jib
    • max. fold hydr.
    • Erection tip
    • Foucault current brake
    • Add. ballast
