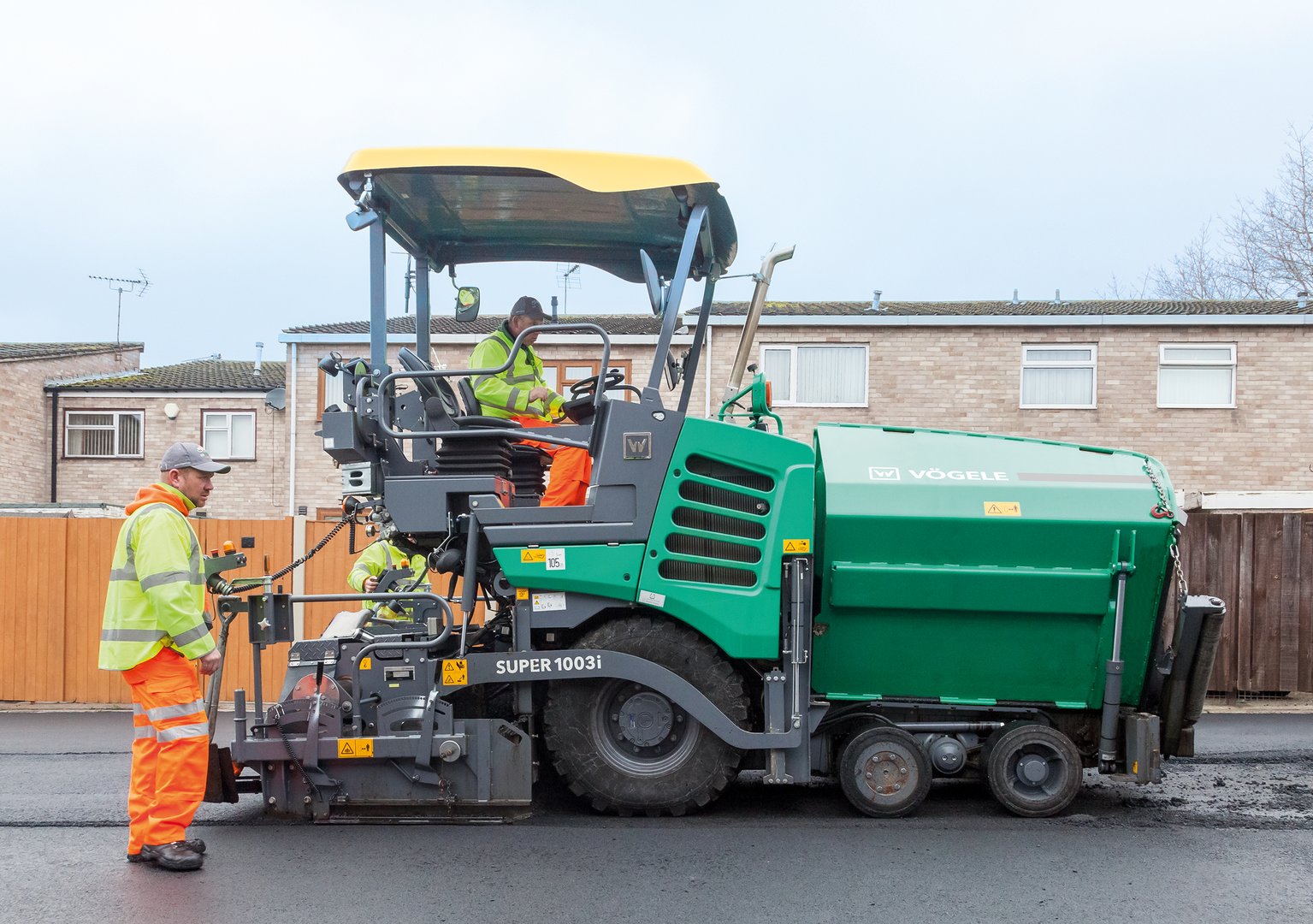

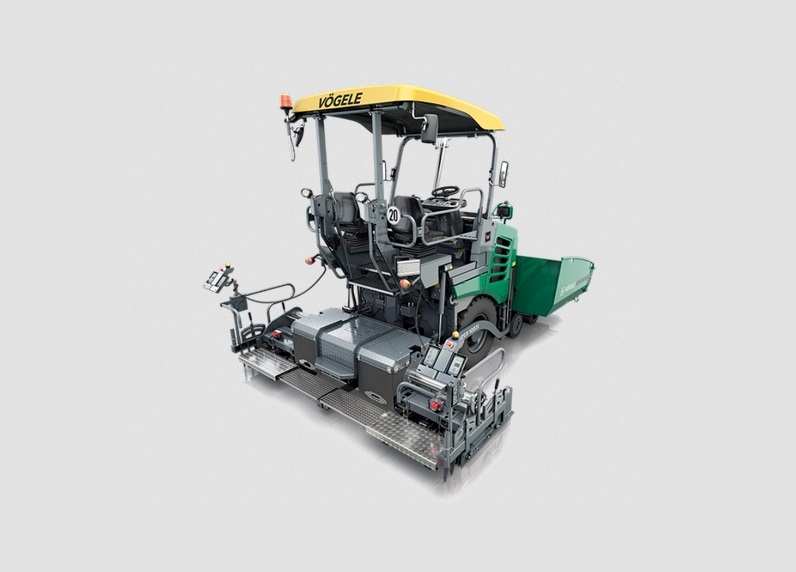

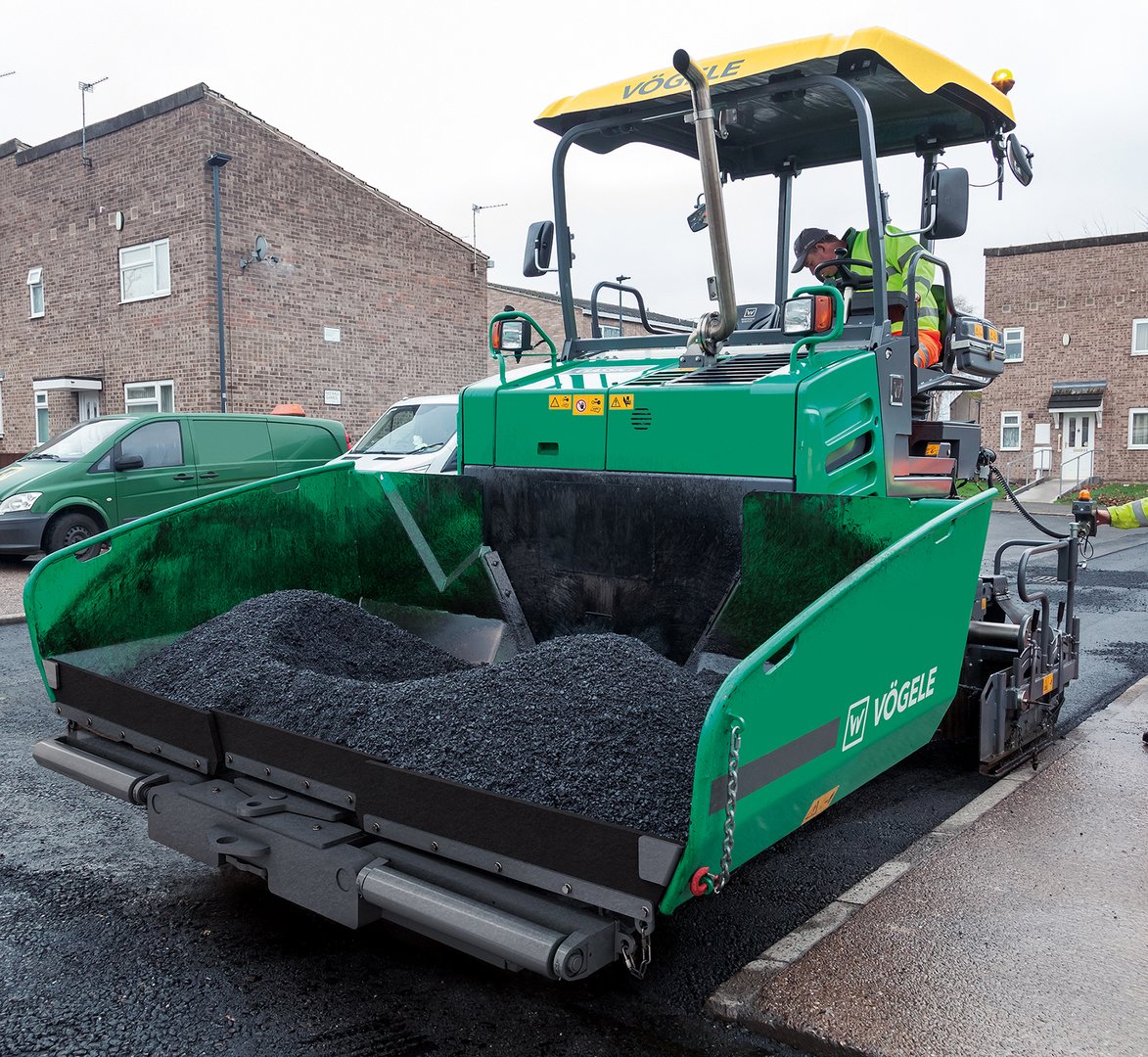

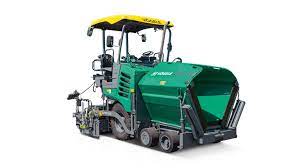

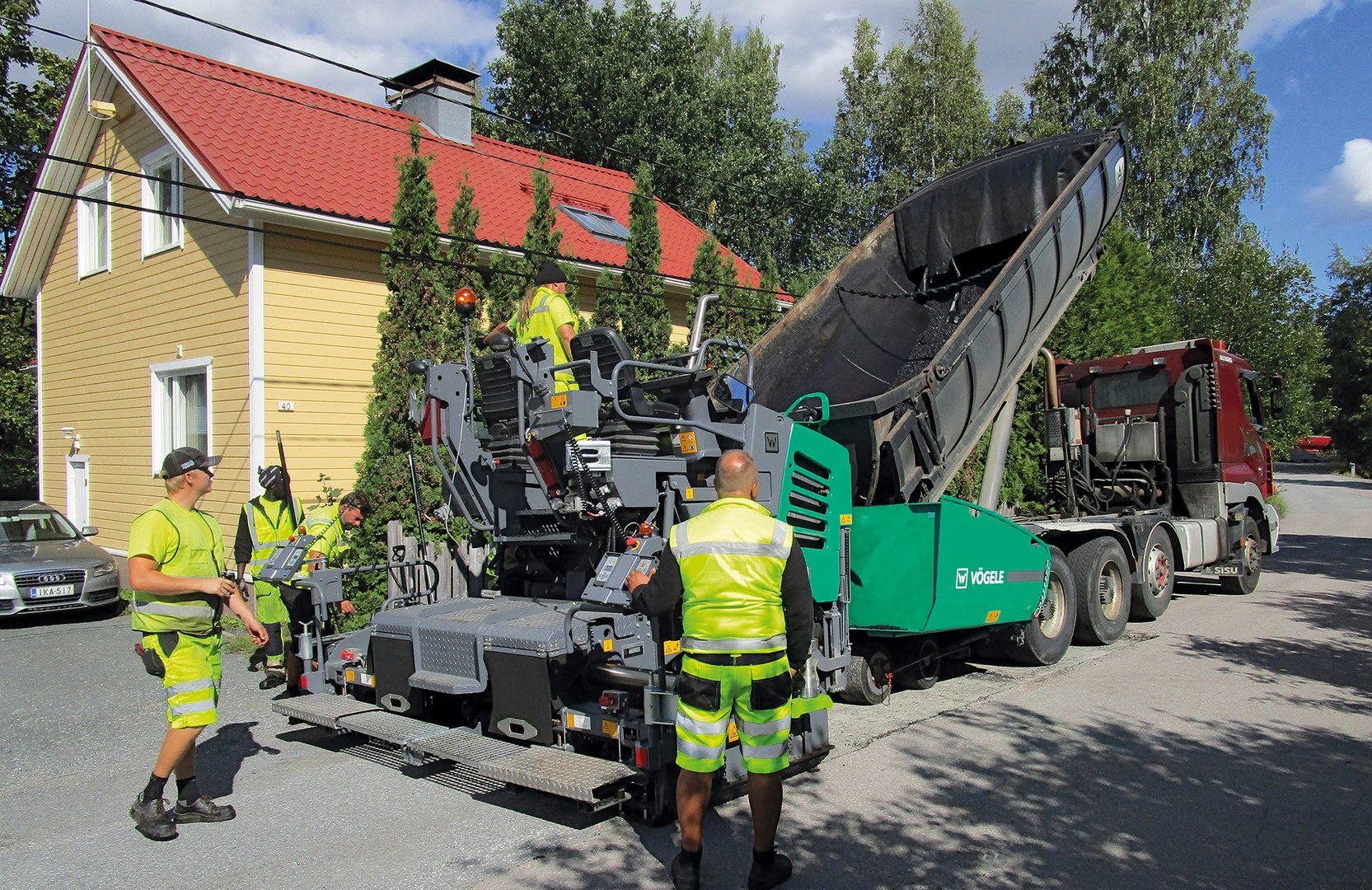

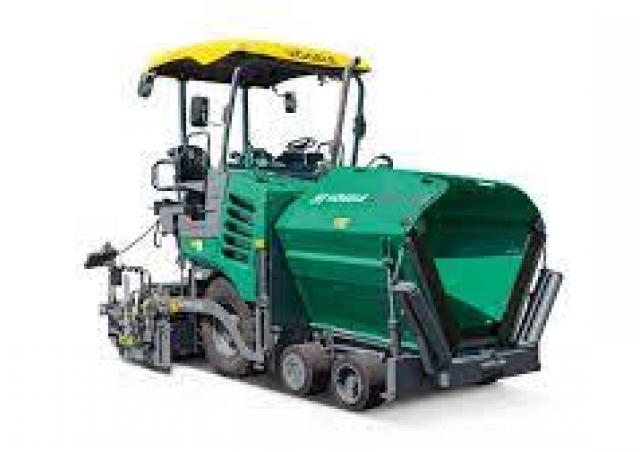

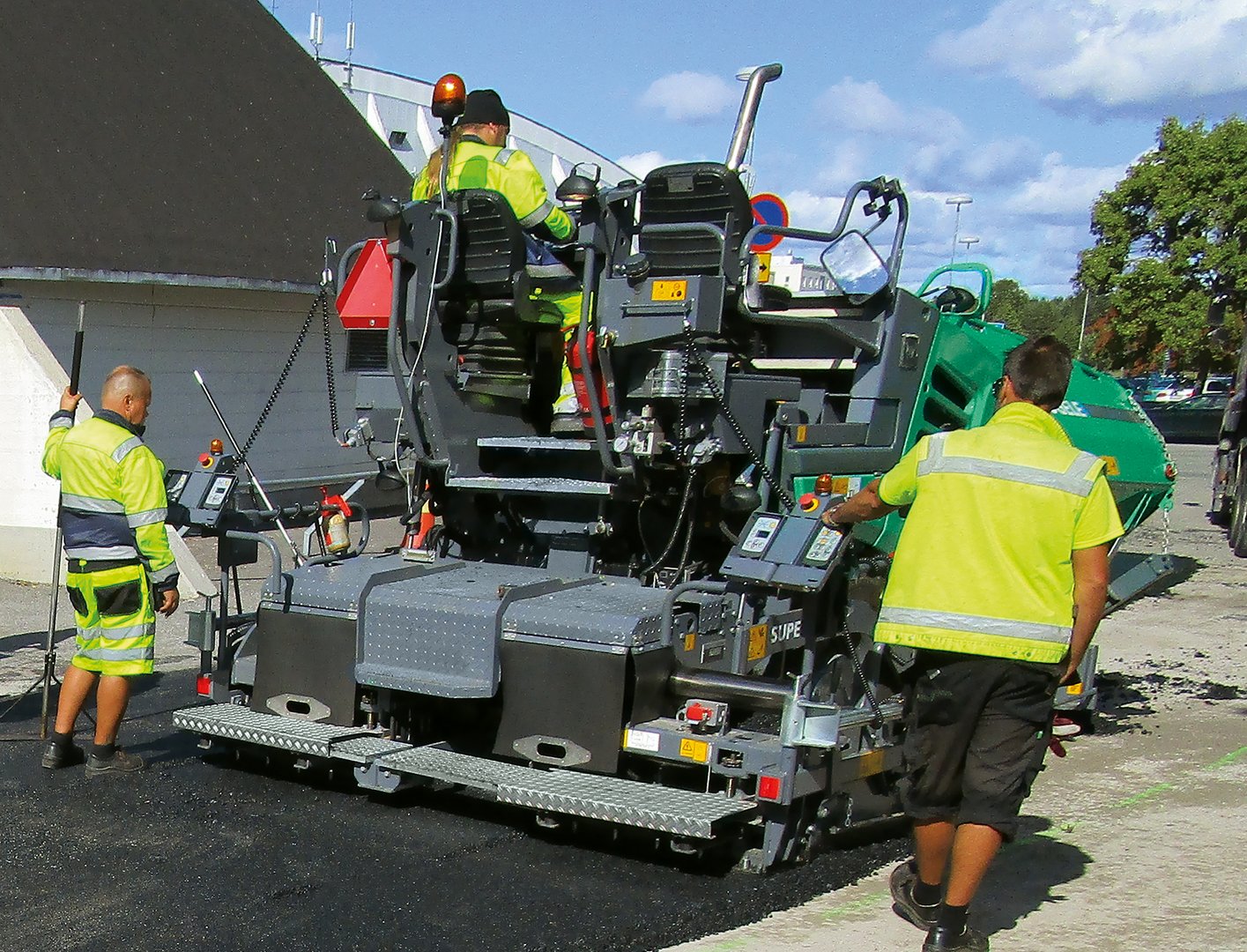

    Vögele Super 1003i Specifications & Technical Data (2021-2023)

    Rate this machine now!

    Weight: 10t – Transport length: 4.95m – Transport width: 1.85m – Transport height: 2.915m – Standard width: 1.8m – Max. width: 3.9m

    Technical specs - Super 1003i Vögele

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 10 t
    • Transport length 4.95 m
    • Transport width 1.85 m
    • Transport height 2.915 m
    • Standard width 1.8 m
    • Max. width 3.9 m
    • Drive DM
    • Wheels 6x4
    • Operating speed 18 m/min
    • Type of screed V/T
    • Engine manuf. Deutz
    • Engine type TCD3.6 L4
    • Engine power 55.4 kW
    • Displacement 3.6 l
    • No. of cylinders 4
    • Emission level EU Stage V, US EPA Tier 4f

    More technical details, like: hydr. extension from, hydr. extension up to, bunker capacity, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

    Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

    Special equipment

    • Diesel particulate filter
    • Bilateral levelling automatic
    • Vibration
    • High compaction
    • Spray unit
    • Tamper
