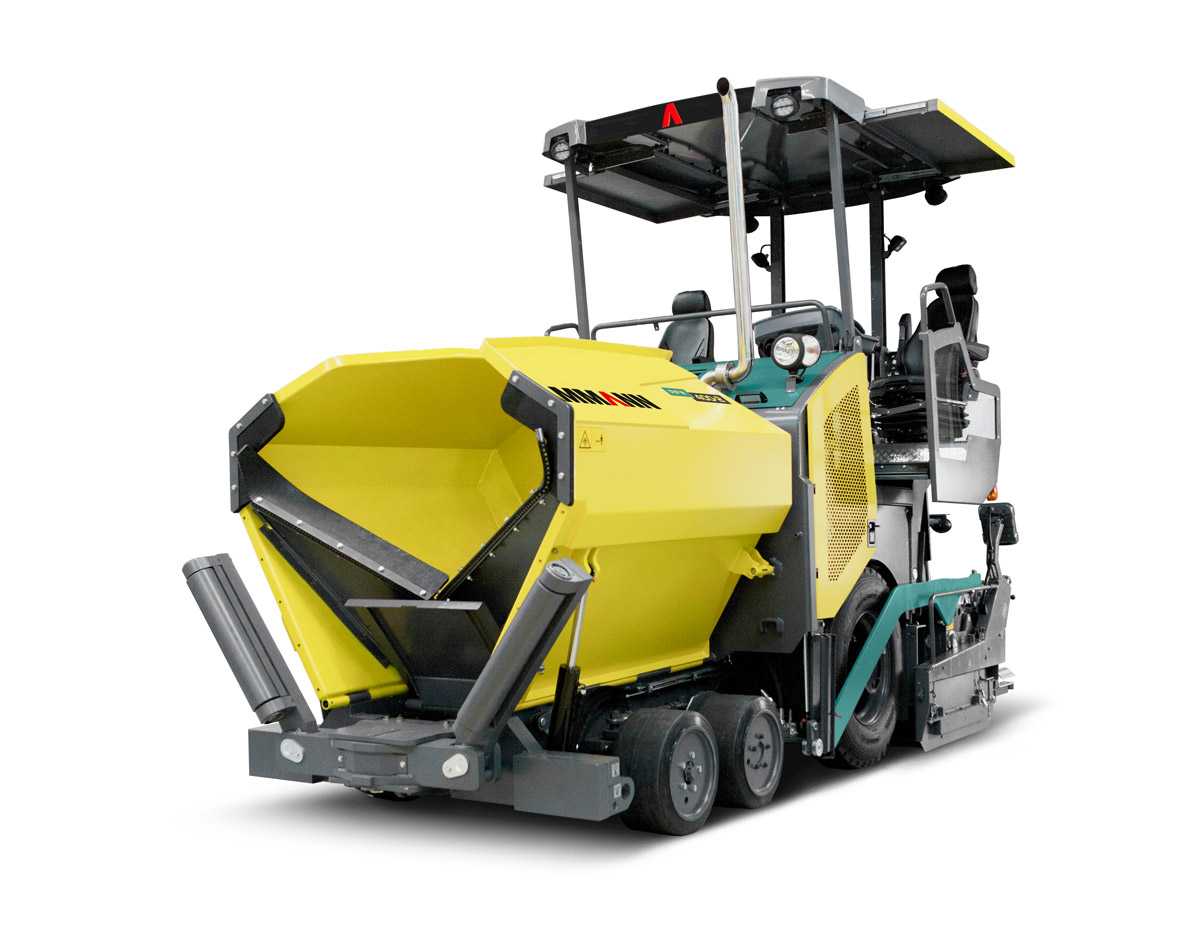

AFW 400-2 Ammann AFW 400-2 Specifications & Technical Data (2017—2026)

Weight: 10.5t – Transport length: 5.022m – Transport width: 1.8m – Transport height: 2.915m – Standard width: 1.75m – Max. width: 3.5m

Wheeled Asphalt Pavers Ammann AFW 400-2

Technical specs - AFW 400-2 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.5 t
Transport length
5.022 m
Transport width
1.8 m
Transport height
2.915 m
Standard width
1.75 m
Max. width
3.5 m
Hydr. extension from
1.2 m
Hydr. extension up to
4.7 m
Operating speed
25 m/min
Type of screed
V/T
Model series
AFW
Engine manuf.
Deutz
Engine type
TD2.9 L4
Engine power
55.4 kW
Displacement
3.6 l
Emission level
T4f

More technical details, like: drive, wheels, bunker capacity, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter
Yes
Bilateral levelling automatic
Yes
Vibration
Yes
High compaction
No
Spray unit
No
Tamper
Yes

Download datasheets (PDF)

Ammann AFW 400-2 FAQ

When was the Ammann AFW 400-2 manufactured?

The Ammann AFW 400-2 was first produced in 2017.

How much does the Ammann AFW 400-2 weigh?

The Ammann AFW 400-2 weighs 10.5 tons.

What are the transport dimensions of the Ammann AFW 400-2 wheeled asphalt paver?

The Ammann AFW 400-2 has transport dimensions of 5.02 meters in length, 1.8 meters in width, and 2.92 meters in height.

What is the operating speed of the Ammann AFW 400-2 wheeled asphalt paver?

The Ammann AFW 400-2 has an operating speed of 25 meters per minute.

What are the paving performance specifications of the Ammann AFW 400-2 wheeled asphalt paver?

The Ammann AFW 400-2 features a tamper and vibratory screed, a standard paving width of 1.75 meters, a maximum width of 3.5 meters, hydraulic extension ranging from 1.2 to 4.7 meters, and an operating speed of 25 meters per minute.
