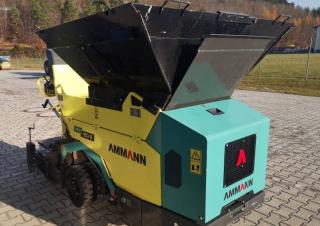

AFW 150-2 Ammann AFW 150-2 Specifications & Technical Data (2021—2026)

Weight: 1.26t – Transport length: 2.55m – Transport width: 1.15m – Transport height: 1.498m – Standard width: 0.8m – Max. width: 1.65m

AFW 150-2

Years of manufacture: 2021—2026

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - AFW 150-2 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.26 t

Transport length: 2.55 m

Transport width: 1.15 m

Transport height: 1.498 m

Standard width: 0.8 m

Max. width: 1.65 m

Wheels: 3

Operating speed: 25 m/min

Type of screed: V

Model series: AFW

Engine manuf.: Hatz

Engine type: 1B50E

Engine power: 7.6 kW

Emission level: EU V

More technical details, like: hydr. extension from, hydr. extension up to, drive, bunker capacity, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Vibration: No
High compaction: No
Spray unit: No
Tamper: No

Download datasheets (PDF)

Ammann AFW 150-2 FAQ

When was the Ammann AFW 150-2 manufactured?

The Ammann AFW 150-2 was first produced in 2021.

How much does the Ammann AFW 150-2 weigh?

The Ammann AFW 150-2 weighs 1.26 tons.

What are the transport dimensions of the Ammann AFW 150-2 wheeled asphalt paver?

The Ammann AFW 150-2 has a transport length of 2.55 meters, a transport width of 1.15 meters, and a transport height of 1.5 meters.

What is the operating speed of the Ammann AFW 150-2 wheeled asphalt paver?

The Ammann AFW 150-2 has an operating speed of 25 meters per minute.

How many wheels does the Ammann AFW 150-2 have on its undercarriage?

The Ammann AFW 150-2 has 3 wheels on its undercarriage.

What are the paving performance specifications of the Ammann AFW 150-2?

The Ammann AFW 150-2 features a vibratory screed with a standard paving width of 0.8 meters, a maximum width of 1.65 meters, and an operating speed of 25 meters per minute.
