ZL 501 B Zettelmeyer ZL 501 B Specifications & Technical Data (1988—2026)

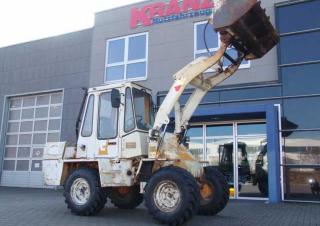

The Zettelmeyer ZL 501 B is a wheel loader manufactured by Zettelmeyer since 1988. It weighs 4 tons and has a bucket width of 2 me…

The Zettelmeyer ZL 501 B is a wheel loader manufactured by Zettelmeyer since 1988. It weighs 4 tons and has a bucket width of 2 meters. The maximum discharge height is 3 meters, and it can travel at a speed of 20 km/h. The transport height is 2 meters, and it has a turning radius outside of 4 meters. The bucket capacity ranges from a minimum of 0 cubic meters to a maximum of 2 cubic meters.

Wheel Loaders Zettelmeyer ZL 501 B

Technical specs - ZL 501 B Zettelmeyer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.29 t
Standard tyres
12.5-18
Bucket width
2 m
Bucket capacity min.
0.42 m³
Bucket capacity max.
2.1 m³
Transport height
2.685 m
Travel speed
20 km/h
Max. discharge height
3.07 m
Turning radius outside
4.6 m
Engine manuf.
Hatz
Engine type
3 L 40 Z
Engine power
33 kW
Displacement
2.574 l
Revolutions at max torque
2200 rpm
Max. torque
108 Nm
No. of cylinders
3
Cylinder bore x stroke
102 x 105 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Zettelmeyer ZL 501 B FAQ

When was the Zettelmeyer ZL 501 B manufactured?

The Zettelmeyer ZL 501 B was first produced in 1988.

How much does the Zettelmeyer ZL 501 B weigh?

The Zettelmeyer ZL 501 B weighs 4.29 tons.

What is the transport height of the Zettelmeyer ZL 501 B wheel loader?

The transport height of the Zettelmeyer ZL 501 B wheel loader is 2.69 meters.

What is the travel speed of the Zettelmeyer ZL 501 B?

The Zettelmeyer ZL 501 B has a travel speed of 20 km/h.

What are the undercarriage specifications of the Zettelmeyer ZL 501 B wheel loader?

The Zettelmeyer ZL 501 B wheel loader is equipped with standard tyres sized 12.5-18.

What is the turning radius of the Zettelmeyer ZL 501 B wheel loader?

The Zettelmeyer ZL 501 B has an outside turning radius of 4.6 meters.

What is the maximum discharge height of the Zettelmeyer ZL 501 B wheel loader?

The Zettelmeyer ZL 501 B has a maximum discharge height of 3.07 meters.

What are the bucket specifications of the Zettelmeyer ZL 501 B wheel loader?

The Zettelmeyer ZL 501 B has a bucket with a maximum capacity of 2.1 cubic meters and a width of 2 meters.

How much is a Zettelmeyer ZL 501 B Wheel loader (1988u20132025) worth?

The residual value of the Zettelmeyer ZL 501 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
