955 YTO 955 Specifications & Technical Data (2020—2026)

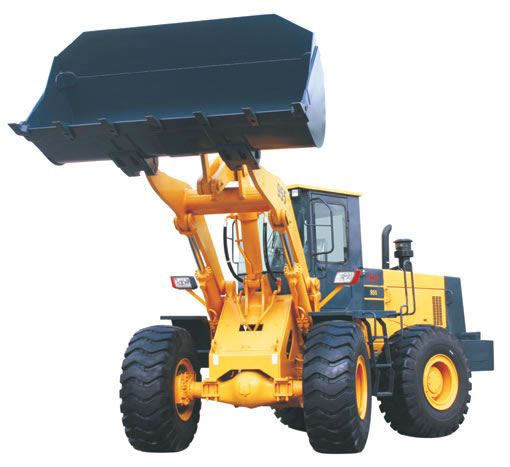

The YTO 955 is a wheel loader manufactured since 2020. It has a transport length of 8.1 meters and a maximum discharge height of 3…

The YTO 955 is a wheel loader manufactured since 2020. It has a transport length of 8.1 meters and a maximum discharge height of 3.05 meters. The travel speed is 37 km/h, and the transport width is 2.8 meters. The transport height is 3.5 meters, and the turning radius outside is 5.97 meters. The maximum bucket capacity is 3 cubic meters.

Technical specs - 955 YTO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Bucket capacity max.
3 m³
Transport length
8.1 m
Transport width
2.8 m
Transport height
3.5 m
Travel speed
37 km/h
Max. discharge height
3.05 m
Turning radius outside
5.97 m
Engine manuf.
N/A
Engine type
WD615G.220
Engine power
162 kW

More technical details, like: weight, standard tyres, bucket width, bucket capacity, bucket capacity min., steering mode, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: weight, standard tyres, bucket width, bucket capacity, bucket capacity min., steering mode, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

YTO 955 FAQ

When was the YTO 955 manufactured?

The YTO 955 was first produced in 2020.

What are the transport dimensions of the YTO 955 wheel loader?

The YTO 955 wheel loader has a transport length of 8.1 meters, a transport width of 2.8 meters, and a transport height of 3.5 meters.

What is the travel speed of the YTO 955 wheel loader?

The YTO 955 has a travel speed of 37 km/h.

What is the outside turning radius of the YTO 955 wheel loader?

The YTO 955 wheel loader has an outside turning radius of 5.97 meters.

What is the maximum discharge height of the YTO 955?

The YTO 955 has a maximum discharge height of 3.05 meters.

What is the maximum bucket capacity of the YTO 955 wheel loader?

The YTO 955 wheel loader has a maximum bucket capacity of 3 cubic meters.

How much is a YTO 955 Wheel loader (2020u20132025) worth?

The residual value of the YTO 955 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
