V8 Yanmar V8 Specifications & Technical Data (2015—2026)

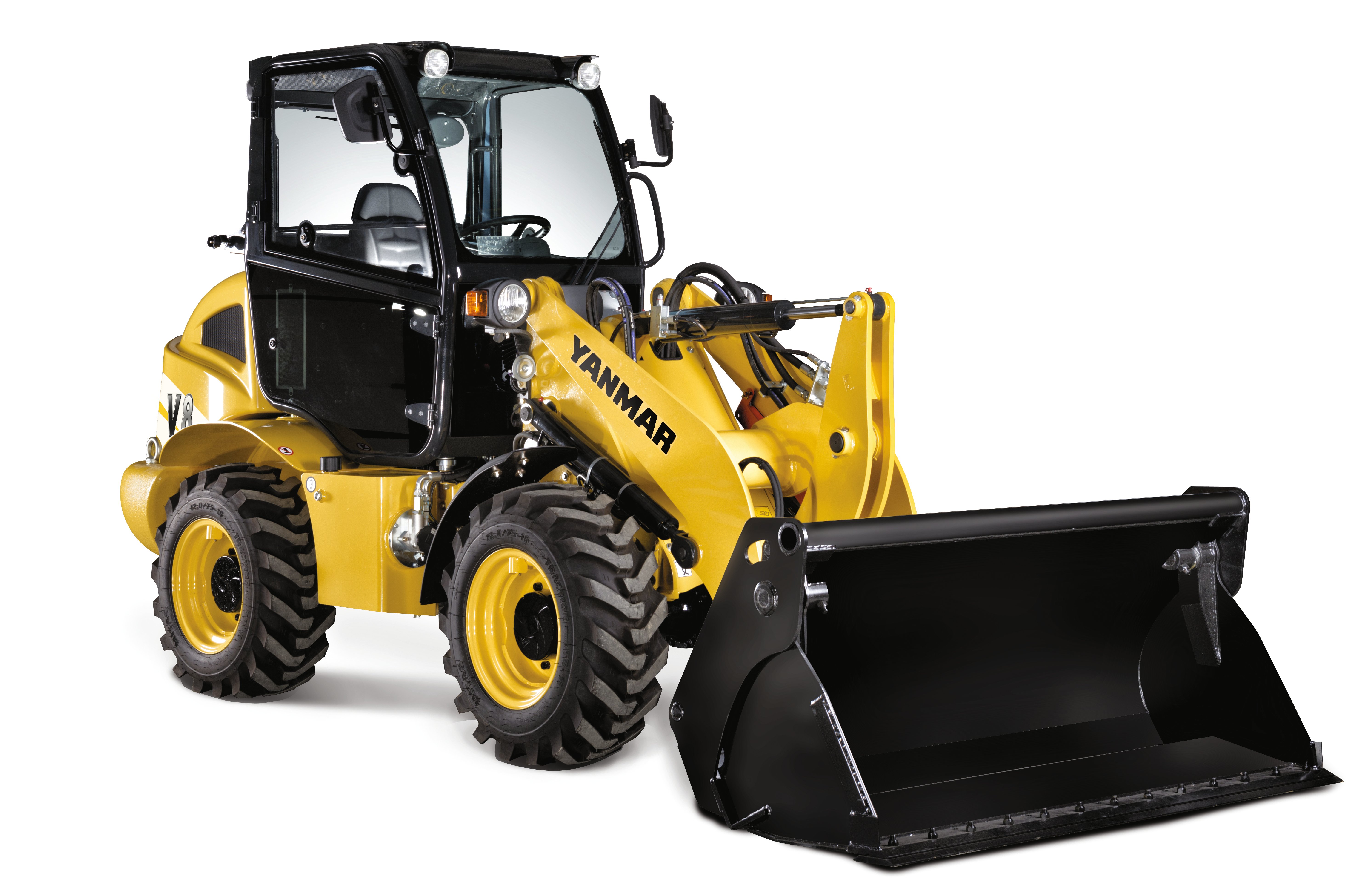

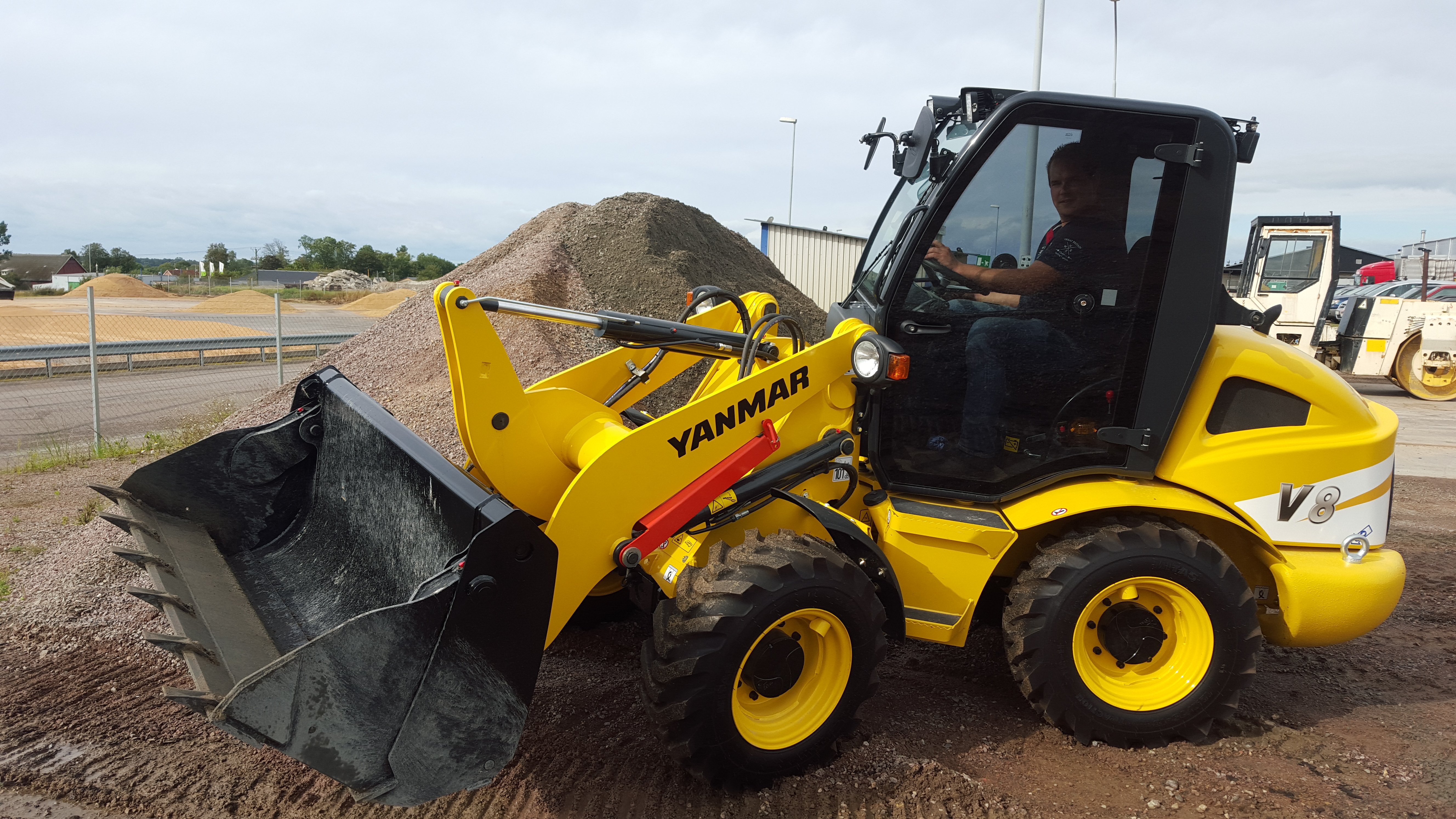

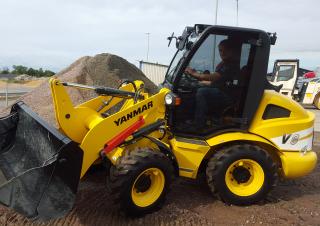

The Yanmar V 8 is a wheel loader manufactured since 2015. It has a weight of 4.35 tons and a transport length of 4.8 meters. The b…

The Yanmar V 8 is a wheel loader manufactured since 2015. It has a weight of 4.35 tons and a transport length of 4.8 meters. The bucket capacity is 0.8 cubic meters, with a bucket width of 1.9 meters. The maximum discharge height is 2.45 meters, and it has a travel speed of 28 km/h. The transport width and height are both 1.9 and 2.46 meters, respectively. It has a lifting force of 52.97 kN and a turning radius outside of 4.21 meters. Special equipment includes air conditioning and a quick hitch hydraulic mechanism.

Years of manufacture: 2015—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - V8 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.35 t

Standard tyres: 12.0/75 R18

Bucket width: 1.9 m

Bucket capacity: 0.8 m³

Bucket capacity min.: 0.8 m³

Steering mode: KL

Transport length: 4.8 m

Transport width: 1.9 m

Transport height: 2.46 m

Travel speed: 28 km/h

Max. discharge height: 2.45 m

Turning radius outside: 4.21 m

Lifting force: 52.97 kN

Model series: V

Engine manuf.: Yanmar

Engine type: 4TNV88

Engine power: 35 kW

Emission level: Tier 3 a

More technical details, like: bucket capacity max., dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Yanmar V8 FAQ

When was the Yanmar V 8 manufactured?

The Yanmar V 8 was first produced in 2015.

How much does the Yanmar V 8 wheel loader weigh?

The Yanmar V 8 wheel loader weighs 4.35 tons.

What are the transport dimensions of the Yanmar V 8 wheel loader?

The Yanmar V 8 has a transport length of 4.8 meters, a transport width of 1.9 meters, and a transport height of 2.46 meters.

What is the travel speed of the Yanmar V 8 wheel loader?

The Yanmar V 8 wheel loader has a travel speed of 28 km/h.

What are the undercarriage specifications of the Yanmar V 8 wheel loader?

The Yanmar V 8 wheel loader is equipped with standard tyres sized 12.0/75 R18.

What are the maneuverability specifications of the Yanmar V 8 wheel loader?

The Yanmar V 8 wheel loader has an articulated-frame steering system and an outside turning radius of 4.21 meters.

What is the lifting force of the Yanmar V 8 wheel loader?

The Yanmar V 8 wheel loader has a lifting force of 52.97 kN.

What is the maximum discharge height of the Yanmar V 8 wheel loader?

The Yanmar V 8 wheel loader has a maximum discharge height of 2.45 meters.

What are the bucket specifications of the Yanmar V 8 wheel loader?

The Yanmar V 8 wheel loader has a bucket capacity of 0.8 cubic meters, a minimum bucket capacity of 0.8 cubic meters, and a bucket width of 1.9 meters.
