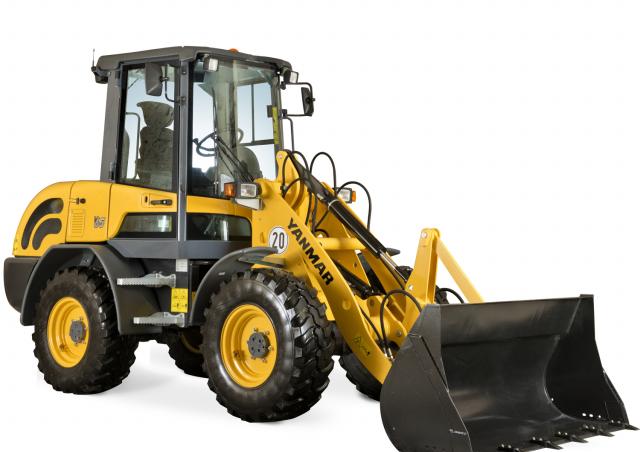

V65 Yanmar V65 Specifications & Technical Data (2019—2021)

The Yanmar V65 is a wheel loader manufactured from 2019 to 2021. It has a weight of 4.2 tons and a transport length of 4.78 meters…

The Yanmar V65 is a wheel loader manufactured from 2019 to 2021. It has a weight of 4.2 tons and a transport length of 4.78 meters. The bucket capacity is 1 cubic meter with a bucket width of 1.85 meters. The maximum discharge height is 2.38 meters, and it can travel at a speed of 20 km/h. The transport width is 1.7 meters, and the transport height is 2.61 meters. The turning radius outside is 3.87 meters. Special equipment includes air conditioning and a quick hitch hydraulic mechanism.

V65

Years of manufacture: 2019—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - V65 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.2 t

Bucket width: 1.85 m

Bucket capacity: 1 m³

Bucket capacity min.: 1 m³

Transport length: 4.78 m

Transport width: 1.7 m

Transport height: 2.61 m

Travel speed: 20 km/h

Max. discharge height: 2.38 m

Turning radius outside: 3.87 m

Model series: V

Engine manuf.: Deutz

Engine type: D 2011 L04

Engine power: 36.4 kW

Displacement: 3.1 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: Tier 4

More technical details, like: standard tyres, bucket capacity max., steering mode, lifting force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Yanmar V65 FAQ

When was the Yanmar V65 manufactured?

The Yanmar V65 was manufactured from 2019 to 2021.

How much does the Yanmar V65 wheel loader weigh?

The Yanmar V65 wheel loader weighs 4.2 tons.

What are the transport dimensions of the Yanmar V65 wheel loader?

The Yanmar V65 has a transport length of 4.78 meters, a transport width of 1.7 meters, and a transport height of 2.61 meters.

What is the travel speed of the Yanmar V65 wheel loader?

The Yanmar V65 has a travel speed of 20 km/h.

What is the turning radius of the Yanmar V65 wheel loader?

The Yanmar V65 wheel loader has an outside turning radius of 3.87 meters.

What is the maximum discharge height of the Yanmar V65?

The Yanmar V65 has a maximum discharge height of 2.38 meters.

What are the specifications of the bucket on the Yanmar V65 wheel loader?

The Yanmar V65 wheel loader has a bucket capacity of 1 cubic meter, a minimum bucket capacity of 1 cubic meter, and a bucket width of 1.85 meters.
