V4-7 Yanmar V4-7 Specifications & Technical Data (2019—2026)

The Yanmar V4-7 is a wheel loader manufactured since 2019. It has a weight of 3.86 tons and a transport length of 4.42 meters. The…

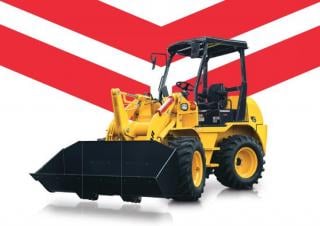

The Yanmar V4-7 is a wheel loader manufactured since 2019. It has a weight of 3.86 tons and a transport length of 4.42 meters. The bucket capacity is 0.5 cubic meters with a width of 1.69 meters. The maximum discharge height is 2.42 meters. It has a travel speed of 19 km/h and a transport width and height of 1.69 meters and 2.54 meters respectively. The lifting force is 24.5 kN and the turning radius outside is 3.8 meters. It is equipped with a diesel particulate filter.

V4-7

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - V4-7 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.86 t

Standard tyres: 15.5/60-18-8PR

Bucket width: 1.69 m

Bucket capacity: 0.5 m³

Bucket capacity min.: 0.5 m³

Transport length: 4.42 m

Transport width: 1.69 m

Transport height: 2.54 m

Travel speed: 19 km/h

Max. discharge height: 2.42 m

Turning radius outside: 3.8 m

Lifting force: 24.5 kN

Model series: V

Engine manuf.: Yanmar

Engine type: 4TNV88C-NKAH

Engine power: 29.1 kW

Displacement: 2.189 l

No. of cylinders: 4

Emission level: Tier 4

More technical details, like: bucket capacity max., steering mode, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

V4-7 Yanmar Specification for North America (EN)

Yanmar V4-7 FAQ

When was the Yanmar V4-7 manufactured?

The Yanmar V4-7 was first produced in 2019.

How much does the Yanmar V4-7 wheel loader weigh?

The Yanmar V4-7 wheel loader weighs 3.86 tons.

What are the transport dimensions of the Yanmar V4-7 wheel loader?

The Yanmar V4-7 has a transport length of 4.42 meters, a transport width of 1.69 meters, and a transport height of 2.54 meters.

What is the travel speed of the Yanmar V4-7 wheel loader?

The Yanmar V4-7 has a travel speed of 19 km/h.

What are the undercarriage specifications of the Yanmar V4-7 wheel loader?

The Yanmar V4-7 wheel loader is equipped with standard tyres sized 15.5/60-18-8PR.

What is the turning radius of the Yanmar V4-7 wheel loader?

The Yanmar V4-7 wheel loader has an outside turning radius of 3.8 meters.

What is the lifting force, the only available power-related rating, of the Yanmar V4-7 wheel loader?

The Yanmar V4-7 wheel loader has a lifting force of 24.5 kN.

What is the maximum discharge height of the Yanmar V4-7 wheel loader?

The Yanmar V4-7 has a maximum discharge height of 2.42 meters.

What are the specifications of the bucket on the Yanmar V4-7 wheel loader?

The Yanmar V4-7 wheel loader has a bucket with a capacity of 0.5 cubic meters and a width of 1.69 meters.
