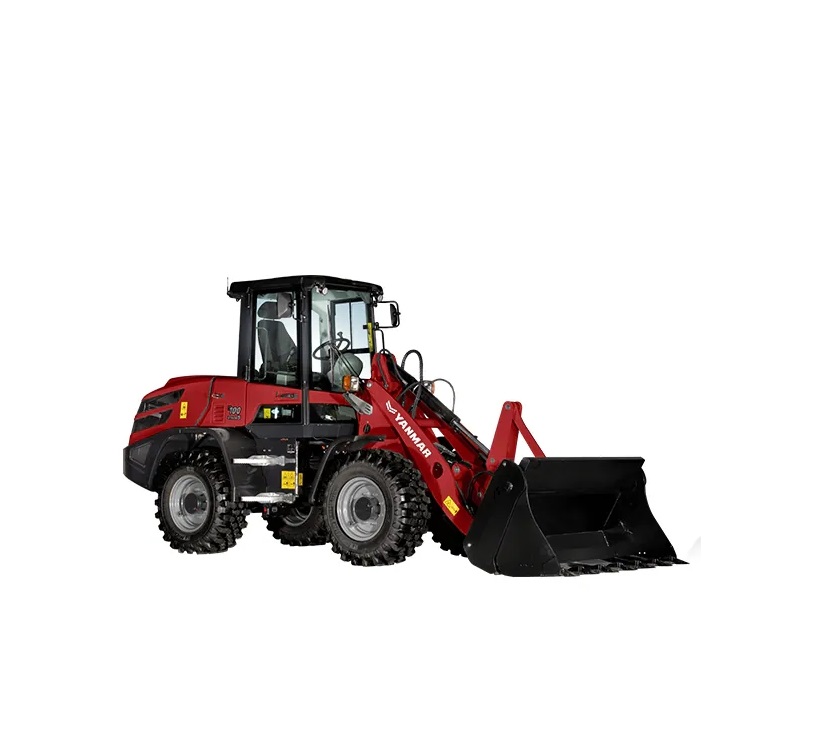

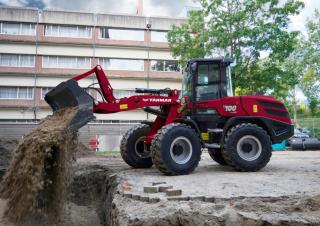

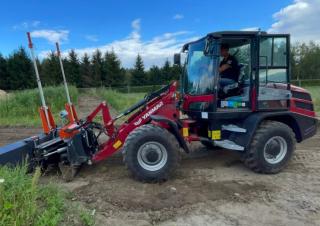

V100 Yanmar V100 Specifications & Technical Data (2024—2026)

Weight: 5.8t – Standard tyres: 405/70 R 20 SPT 9 Dunlop – Bucket width: 1.95m – Bucket capacity: 1m³ – Bucket capacity min.: 1m³ – Bucket capacity max.: 1.5m³

V100

Years of manufacture: 2024—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - V100 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.8 t

Standard tyres: 405/70 R 20 SPT 9 Dunlop

Bucket width: 1.95 m

Bucket capacity: 1 m³

Bucket capacity min.: 1 m³

Bucket capacity max.: 1.5 m³

Steering mode: KL

Transport length: 5.32 m

Transport width: 1.95 m

Transport height: 2.765 m

Travel speed: 20 km/h

Max. discharge height: 2.635 m

Turning radius outside: 4.465 m

Lifting force: 47.8 kN

Model series: V

Engine manuf.: Yanmar

Engine type: 4TNV98CT

Engine power: 53.7 kW

Displacement: 3.319 l

Revolutions at max torque: 2300 rpm

Max. torque: 308/1365 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Yanmar V100 FAQ

When was the Yanmar V100 manufactured?

The Yanmar V100 was first produced in 2024.

How much does the Yanmar V100 wheel loader weigh?

The Yanmar V100 wheel loader weighs 5.8 tons.

What are the transport dimensions of the Yanmar V100 wheel loader?

The Yanmar V100 wheel loader has a transport length of 5.32 meters, a transport width of 1.95 meters, and a transport height of 2.765 meters.

What is the travel speed of the Yanmar V100 wheel loader?

The Yanmar V100 wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Yanmar V100 wheel loader?

The Yanmar V100 wheel loader is equipped with standard tyres sized 405/70 R 20 SPT 9 Dunlop.

What are the maneuverability specifications of the Yanmar V100 wheel loader?

The Yanmar V100 wheel loader has an articulated-frame steering system and an outside turning radius of 4.465 meters.

What is the lifting force of the Yanmar V100 wheel loader?

The Yanmar V100 wheel loader has a lifting force of 47.8 kN.

What is the maximum discharge height of the Yanmar V100 wheel loader?

The Yanmar V100 wheel loader has a maximum discharge height of 2.635 meters.

What are the specifications of the bucket on the Yanmar V100 wheel loader?

The Yanmar V100 wheel loader has a bucket with a capacity ranging from 1 to 1.5 cubic meters and a width of 1.95 meters.
