V10 Yanmar V10 Specifications & Technical Data (2019—2026)

The Yanmar V10 Wheel Loader, manufactured since 2019, is a construction machine with a weight of 5.8 tons. It has a transport leng…

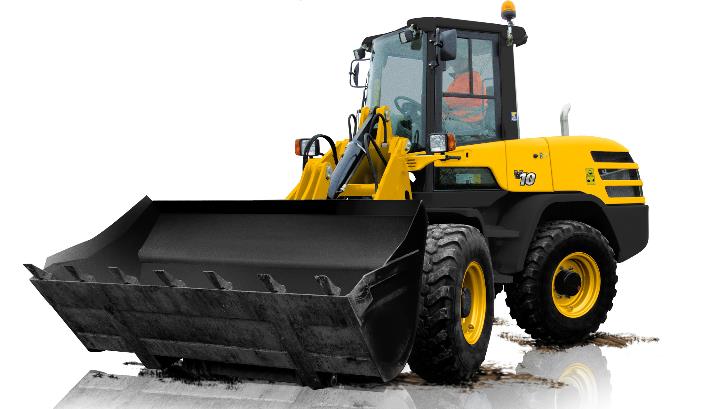

The Yanmar V10 Wheel Loader, manufactured since 2019, is a construction machine with a weight of 5.8 tons. It has a transport length of 5.27 meters and a bucket capacity of 1.55 cubic meters. The bucket width is 1.95 meters, and the maximum discharge height is 2.635 meters. The transport width and height are both 1.95 meters and 2.765 meters, respectively. The turning radius outside is 4.445 meters, and the minimum bucket capacity is 1.55 cubic meters.

V10

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - V10 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.8 t

Standard tyres: 405/70 R 20 SPT 9 Dunlop

Bucket width: 1.95 m

Bucket capacity: 1.55 m³

Bucket capacity min.: 1.55 m³

Transport length: 5.27 m

Transport width: 1.95 m

Transport height: 2.765 m

Max. discharge height: 2.635 m

Turning radius outside: 4.445 m

Model series: V

Engine manuf.: Deutz

Engine type: TCD 2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 1600 rpm

Max. torque: 300 Nm

No. of cylinders: 4

Emission level: TIER 4 f

More technical details, like: bucket capacity max., steering mode, travel speed, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

V10 Yanmar Specification for North America (EN)

Yanmar V10 FAQ

When was the Yanmar V10 manufactured?

The Yanmar V10 was first produced in 2019.

How much does the Yanmar V10 wheel loader weigh?

The Yanmar V10 wheel loader weighs 5.8 tons.

What are the transport dimensions of the Yanmar V10 wheel loader?

The Yanmar V10 has a transport length of 5.27 meters, a transport width of 1.95 meters, and a transport height of 2.77 meters.

What are the standard undercarriage specifications of the Yanmar V10 wheel loader?

The Yanmar V10 wheel loader has standard tyres sized 405/70 R 20 SPT 9 Dunlop.

What is the outside turning radius of the Yanmar V10 wheel loader?

The Yanmar V10 wheel loader has an outside turning radius of 4.445 meters.

What is the maximum discharge height of the Yanmar V10?

The Yanmar V10 has a maximum discharge height of 2.64 meters.

What are the specifications of the bucket on the Yanmar V10 wheel loader?

The Yanmar V10 wheel loader has a bucket capacity of 1.55 cubic meters, a minimum bucket capacity of 1.55 cubic meters, and a bucket width of 1.95 meters.
