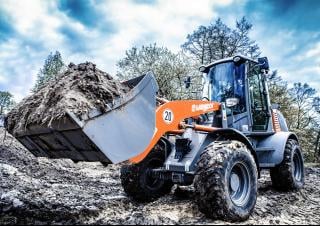

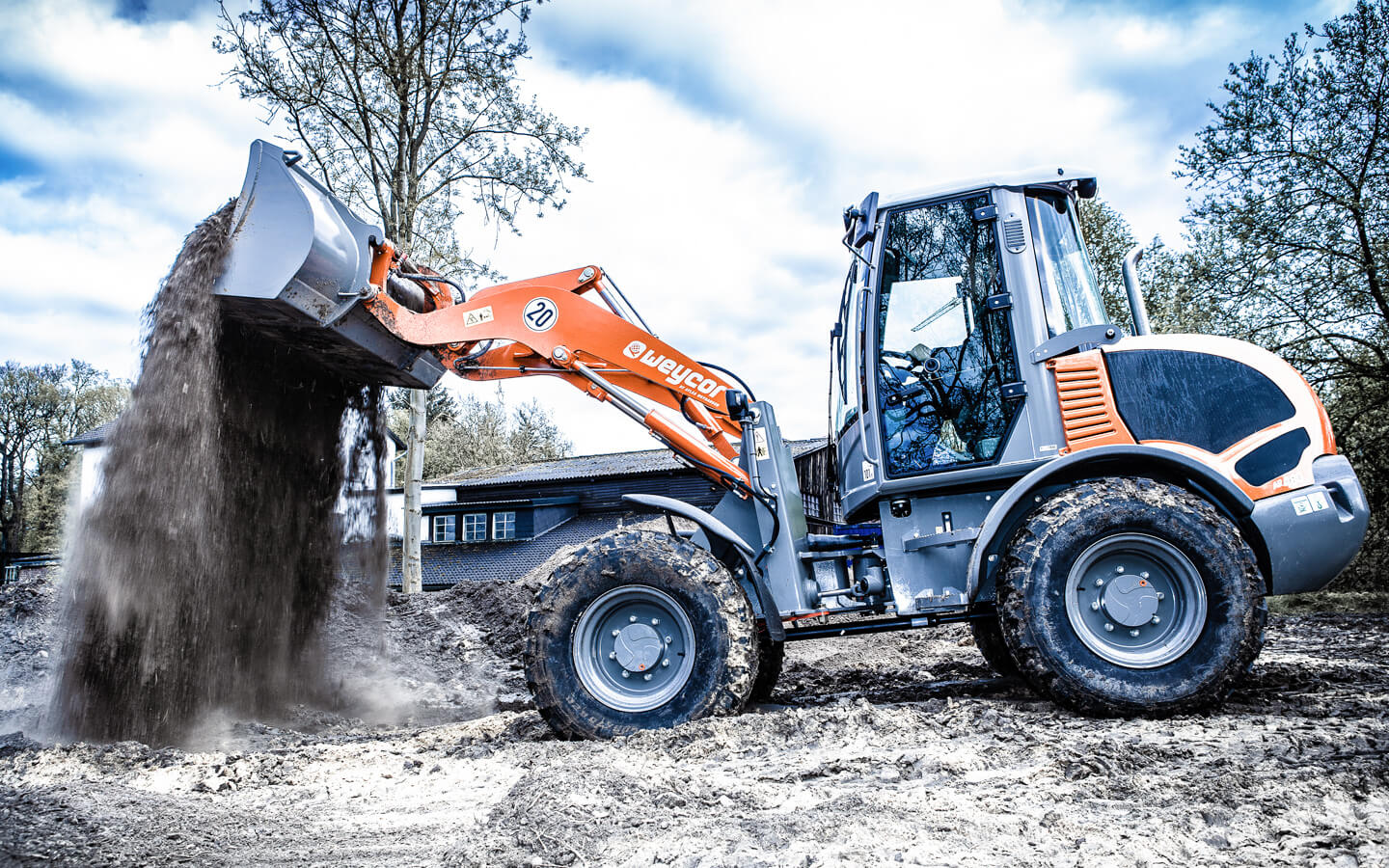

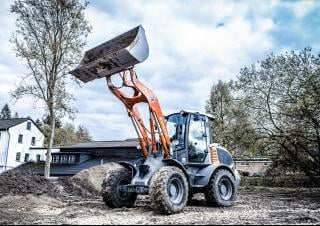

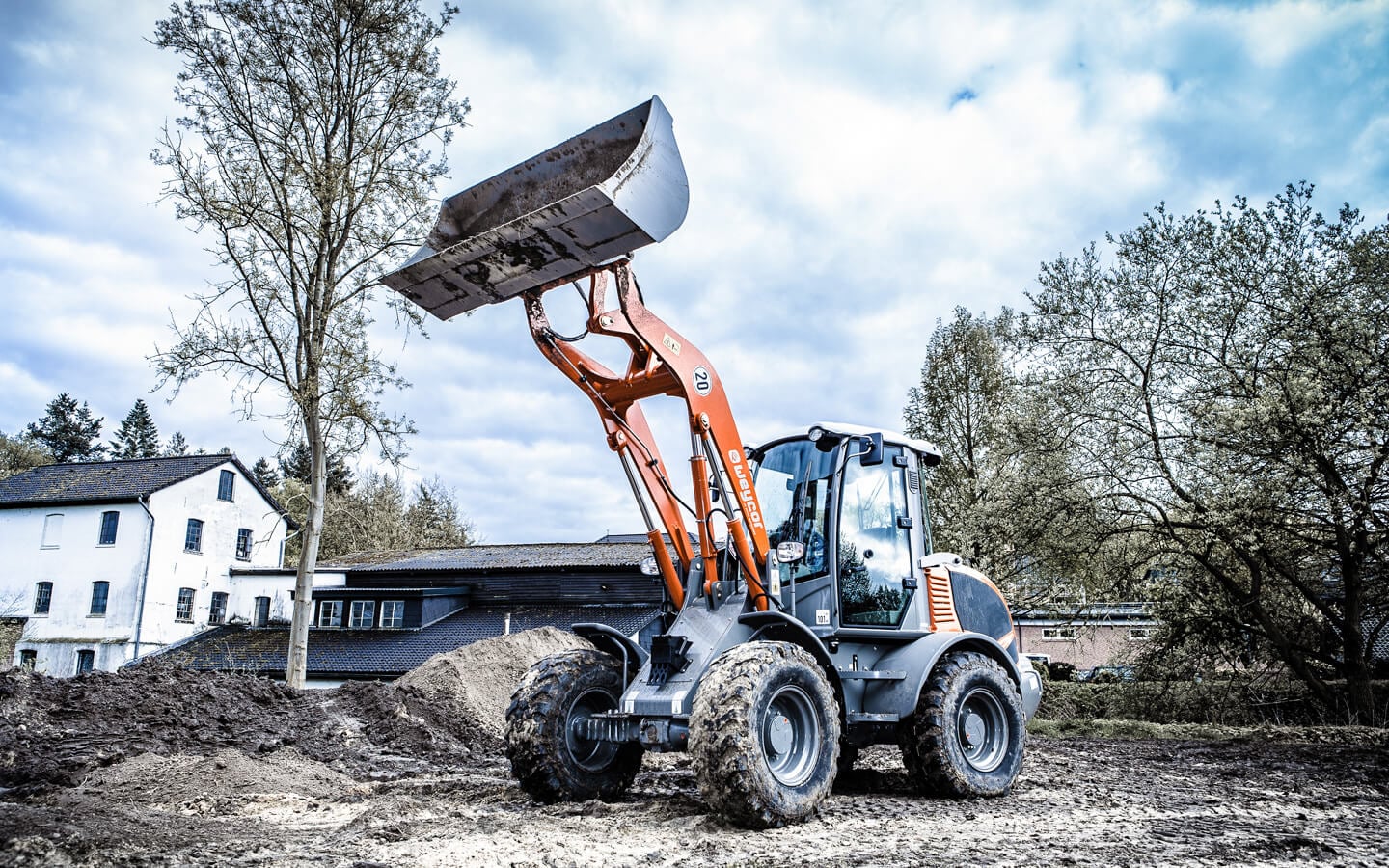

AR 480 weycor AR 480 Specifications & Technical Data (2019—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit weycor live at
Technical specs - AR 480 weycor
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.76 t
- Standard tyres
- 405/70- R20
- Bucket width
- 2.15 m
- Bucket capacity
- 1.1 m³
- Bucket capacity min.
- 1.1 m³
- Steering mode
- KL
- Transport length
- 5.58 m
- Transport width
- 2.05 m
- Transport height
- 2.73 m
- Travel speed
- 20 km/h
- Max. discharge height
- 2.605 m
- Turning radius outside
- 4.478 m
- Lifting force
- 55.1 kN
- Model series
- AR
- Engine manuf.
- Deutz
- Engine type
- TD2.9 L4
- Engine power
- 55.4 kW
- Displacement
- 2.9 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 260 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 92x110 mm
- Emission level
- V
More technical details, like: bucket capacity max., dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
weycor AR 480 FAQ
How much does the weycor AR 480 wheel loader weigh?
What are the transport dimensions of the weycor AR 480 wheel loader?
What is the travel speed of the weycor AR 480 wheel loader?
What are the standard tyre specifications for the Weycor AR 480 wheel loader?
What are the maneuverability specifications of the weycor AR 480 wheel loader?
What is the lifting force of the weycor AR 480 wheel loader?
What is the maximum discharge height of the material handling system on the weycor AR 480?
What are the bucket specifications of the weycor AR 480 wheel loader?
How much is a weycor AR 480 Wheel loader (2019u20132025) worth?
