4070 CX 80LP Weidemann 4070 CX 80LP Specifications & Technical Data (2011—2015)

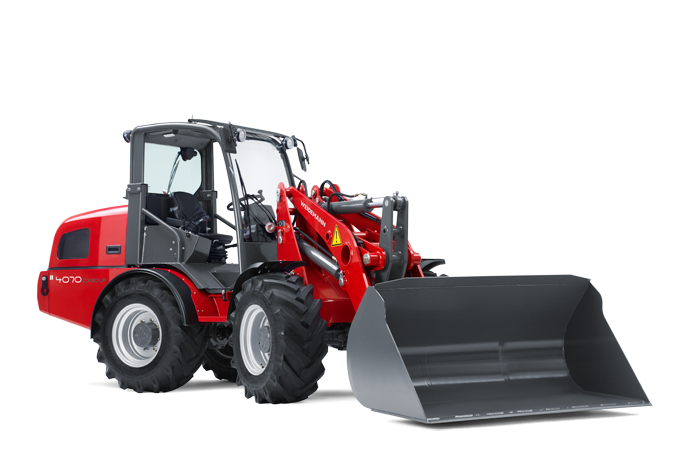

The Weidemann 4070 CX 80LP is a wheel loader manufactured by Weidemann from 2011 to 2015. It has a weight of 5.23 tons and a trans…

The Weidemann 4070 CX 80LP is a wheel loader manufactured by Weidemann from 2011 to 2015. It has a weight of 5.23 tons and a transport length of 5.968 meters. The bucket capacity is 0.98 cubic meters with a width of 1.8 meters. The maximum discharge height is 2.57 meters and it has a travel speed of 20 km/h. The transport width is 1.75 meters and the transport height is 2.404 meters. The turning radius outside is 3.572 meters. The machine is equipped with a quick hitch hydr.

Wheel Loaders Weidemann 4070 CX 80LP

Technical specs - 4070 CX 80LP Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.23 t
Standard tyres
1.25-20 AS ET0
Bucket width
1.8 m
Bucket capacity
0.98 m³
Bucket capacity min.
0.98 m³
Steering mode
KL
Transport length
5.968 m
Transport width
1.75 m
Transport height
2.404 m
Travel speed
20 km/h
Max. discharge height
2.57 m
Turning radius outside
3.572 m
Model series
CX
Engine manuf.
Deutz
Engine type
TD2011 L04w
Engine power
55.1 kW
Displacement
3.619 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
IIIA

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Weidemann 4070 CX 80LP FAQ

When was the Weidemann 4070 CX 80LP manufactured?

The Weidemann 4070 CX 80LP was manufactured from 2011 to 2015.

How much does the Weidemann 4070 CX 80LP weigh?

The Weidemann 4070 CX 80LP weighs 5.23 tons.

What are the transport dimensions of the Weidemann 4070 CX 80LP wheel loader?

The Weidemann 4070 CX 80LP has a transport length of 5.97 meters, a transport width of 1.75 meters, and a transport height of 2.4 meters.

What is the travel speed of the Weidemann 4070 CX 80LP wheel loader?

The Weidemann 4070 CX 80LP has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weidemann 4070 CX 80LP?

The Weidemann 4070 CX 80LP is equipped with standard tyres sized 1.25-20 AS ET0.

What are the maneuverability specifications of the Weidemann 4070 CX 80LP wheel loader?

The Weidemann 4070 CX 80LP has an articulated-frame steering mode and an outside turning radius of 3.572 meters.

What is the maximum discharge height of the Weidemann 4070 CX 80LP wheel loader?

The Weidemann 4070 CX 80LP has a maximum discharge height of 2.57 meters.

What are the bucket specifications of the Weidemann 4070 CX 80LP wheel loader?

The Weidemann 4070 CX 80LP has a bucket capacity of 0.98 cubic meters, a minimum bucket capacity of 0.98 cubic meters, and a bucket width of 1.8 meters.
