3080LPT Weidemann 3080LPT Specifications & Technical Data (2016—2018)

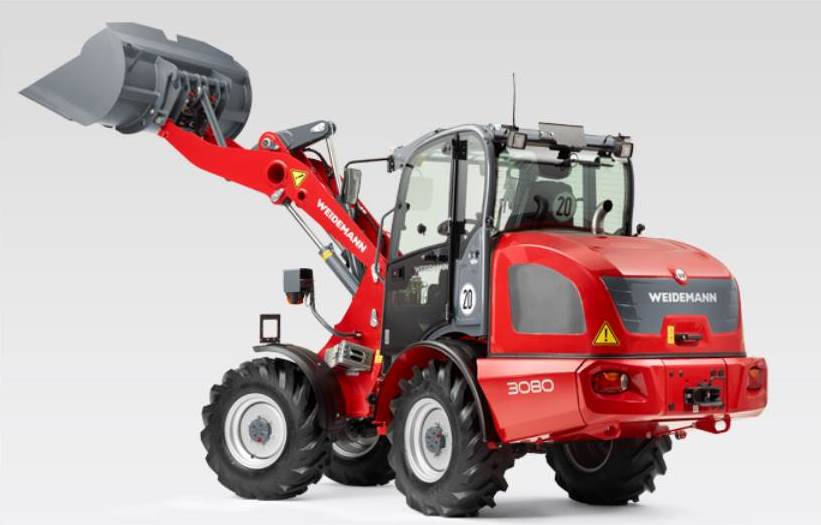

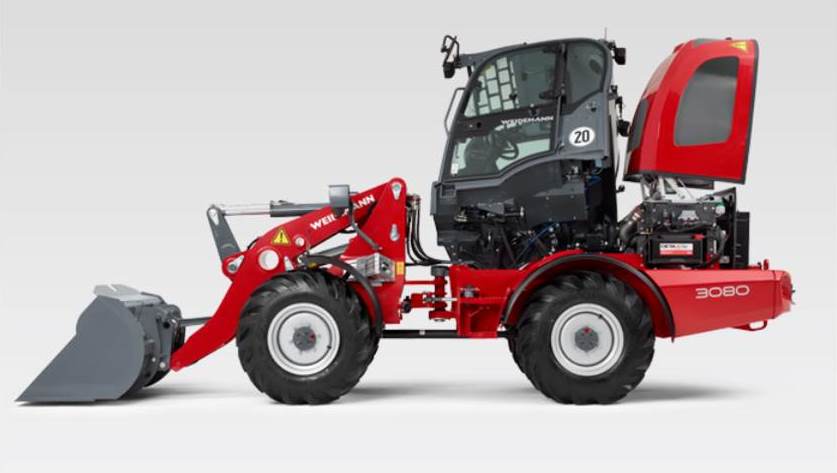

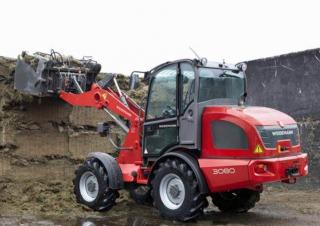

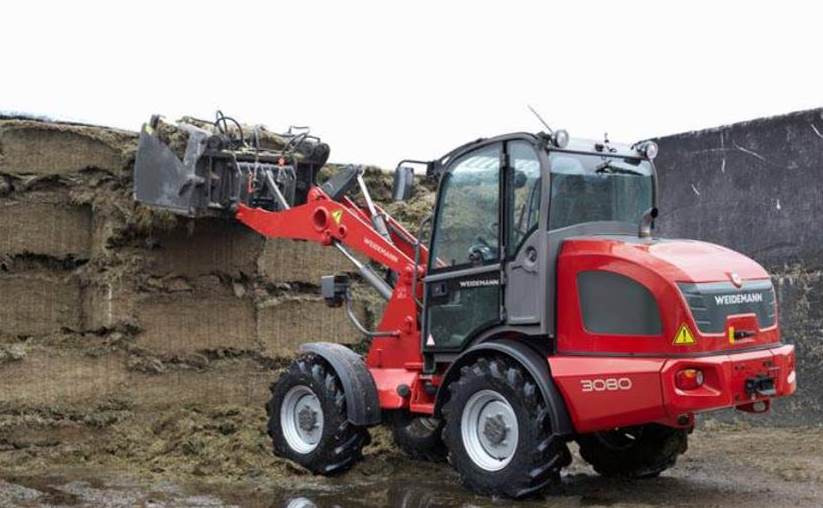

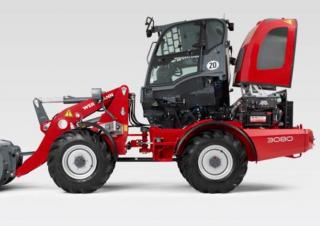

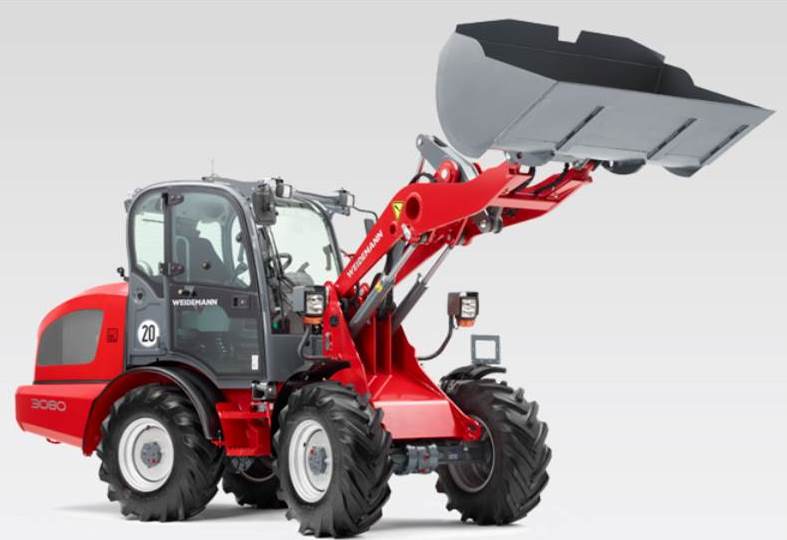

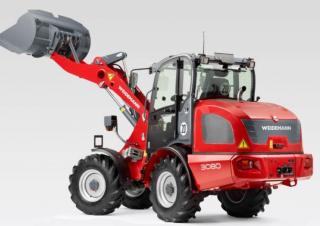

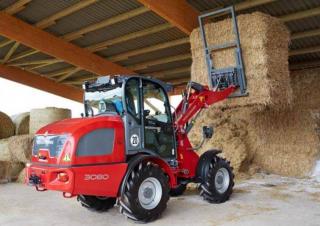

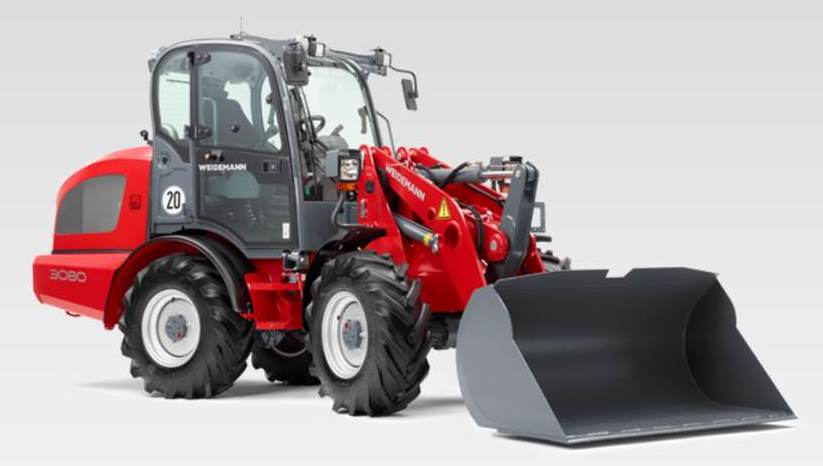

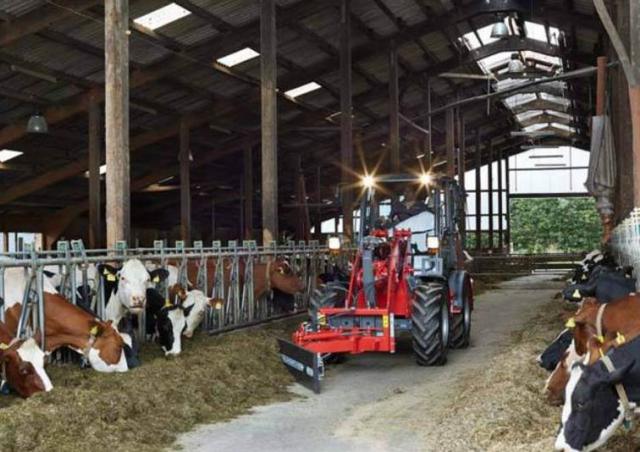

The Weidemann 3080LPT is a wheel loader manufactured from 2016 to 2018. It has a weight of 5 tons and a transport length of 5 mete…

The Weidemann 3080LPT is a wheel loader manufactured from 2016 to 2018. It has a weight of 5 tons and a transport length of 5 meters. The maximum discharge height is 4.14 meters, and it can travel at a speed of 20 km/h. The transport width is 1 meter, and the transport height is 2 meters. The turning radius outside is 4 meters. Special equipment includes a diesel particulate filter, quick hitch hydraulic, and telescopic features.

3080LPT

Years of manufacture: 2016—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 3080LPT Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5 t

Standard tyres: 11.5/80-15.3 AS ET 80

Steering mode: KL

Transport length: 5.929 m

Transport width: 1.53 m

Transport height: 2.409 m

Travel speed: 20 km/h

Max. discharge height: 4.14 m

Turning radius outside: 4.275 m

Model series: T

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: III B

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

3080LPT Weidemann Specification for Europe (DE)

Weidemann 3080LPT FAQ

When was the Weidemann 3080LPT manufactured?

The Weidemann 3080LPT was manufactured from 2016 to 2018.

How much does the Weidemann 3080LPT weigh?

The Weidemann 3080LPT weighs 5 tons.

What are the transport dimensions of the Weidemann 3080LPT wheel loader?

The Weidemann 3080LPT has a transport length of 5.93 meters, a transport width of 1.53 meters, and a transport height of 2.41 meters.

What is the travel speed of the Weidemann 3080LPT wheel loader?

The Weidemann 3080LPT has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weidemann 3080LPT?

The Weidemann 3080LPT is equipped with standard tyres sized 11.5/80-15.3 AS ET 80.

What are the maneuverability specifications of the Weidemann 3080LPT wheel loader?

The Weidemann 3080LPT has an articulated-frame steering system and an outside turning radius of 4.275 meters.

What is the maximum discharge height of the Weidemann 3080LPT wheel loader?

The Weidemann 3080LPT wheel loader has a maximum discharge height of 4.14 meters.
