3070 CX 80 Weidemann 3070 CX 80 Specifications & Technical Data (2006—2008)

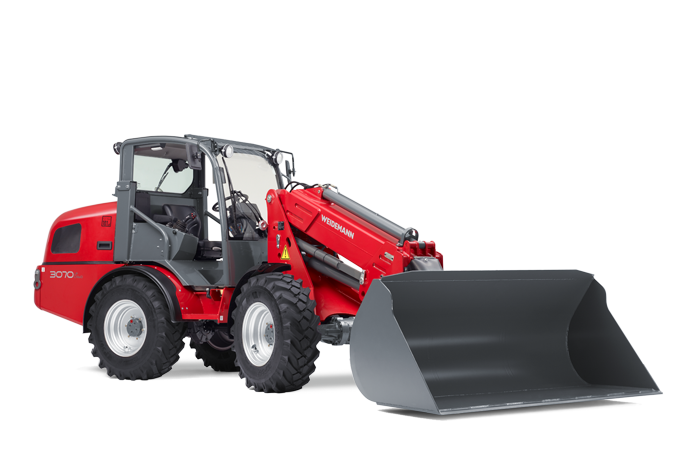

The Weidemann 3070 CX 80 is a wheel loader manufactured from 2006 to 2008. It has a weight of 4.66 tons and a transport length of …

The Weidemann 3070 CX 80 is a wheel loader manufactured from 2006 to 2008. It has a weight of 4.66 tons and a transport length of 4.54 meters. The bucket capacity is 0.7 cubic meters, with a minimum capacity of 0.7 cubic meters. The transport width is 1.58 meters, and the transport height is 2.57 meters. It is equipped with a quick hitch mechanism.

Wheel Loaders Weidemann 3070 CX 80

Technical specs - 3070 CX 80 Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.66 t
Standard tyres
12.5/80-18 AS
Bucket capacity
0.7 m³
Bucket capacity min.
0.7 m³
Steering mode
KL
Transport length
4.54 m
Transport width
1.58 m
Transport height
2.57 m
Model series
CX
Engine manuf.
Deutz
Engine type
BF4M2011
Engine power
56 kW
Displacement
3.11 l
Revolutions at max torque
2300 rpm

More technical details, like: bucket width, bucket capacity max., travel speed, max. discharge height, turning radius outside, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Weidemann 3070 CX 80 FAQ

When was the Weidemann 3070 CX 80 manufactured?

The Weidemann 3070 CX 80 was manufactured from 2006 to 2008.

How much does the Weidemann 3070 CX 80 weigh?

The Weidemann 3070 CX 80 weighs 4.66 tons.

What are the transport dimensions of the Weidemann 3070 CX 80?

The Weidemann 3070 CX 80 has a transport length of 4.54 meters, a transport width of 1.58 meters, and a transport height of 2.57 meters.

What are the standard tyres of the Weidemann 3070 CX 80?

The Weidemann 3070 CX 80 has standard tyres sized 12.5/80-18 AS.

What is the steering mode of the Weidemann 3070 CX 80 wheel loader?

The Weidemann 3070 CX 80 features articulated-frame steering.

What is the bucket capacity of the primary work tool on the Weidemann 3070 CX 80?

The primary work tool of the Weidemann 3070 CX 80 has a bucket capacity of 0.7 cubic meters.

How much is a Weidemann 3070 CX 80 Wheel loader (2006u20132008) worth?

The residual value of the Weidemann 3070 CX 80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
