3070 CX 60LP Weidemann 3070 CX 60LP Specifications & Technical Data (2006—2015)

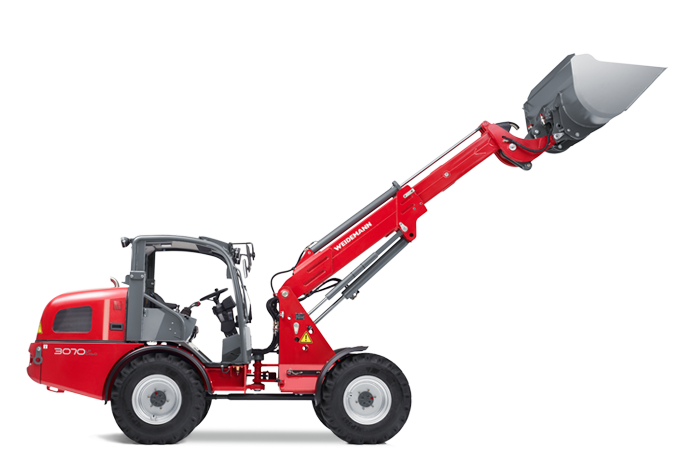

The Weidemann 3070 CX 60LP is a wheel loader manufactured by Weidemann from 2006 to 2015. It has a weight of 4.39 tons and a trans…

The Weidemann 3070 CX 60LP is a wheel loader manufactured by Weidemann from 2006 to 2015. It has a weight of 4.39 tons and a transport length of 5.606 meters. The bucket capacity is 0.55 cubic meters with a width of 1.6 meters. The maximum discharge height is 2.327 meters and it has a travel speed of 20 km/h. The transport width is 1.53 meters and the transport height is 2.358 meters. The turning radius outside is 3.419 meters. The bucket capacity is a minimum of 0.55 cubic meters. It is equipped with a quick hitch hydr.

3070 CX 60LP

Years of manufacture: 2006—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 3070 CX 60LP Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.39 t

Standard tyres: 11.5/80-15.3 AS

Bucket width: 1.6 m

Bucket capacity: 0.55 m³

Bucket capacity min.: 0.55 m³

Steering mode: KL

Transport length: 5.606 m

Transport width: 1.53 m

Transport height: 2.358 m

Travel speed: 20 km/h

Max. discharge height: 2.327 m

Turning radius outside: 3.419 m

Model series: CX

Engine manuf.: Deutz

Engine type: D2011 L04w

Engine power: 45 kW

Displacement: 3.619 l

Revolutions at max torque: 2300 rpm

Emission level: III A

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

3070 CX 60LP Weidemann Specification for Europe (EN)

Weidemann 3070 CX 60LP FAQ

When was the Weidemann 3070 CX 60LP manufactured?

The Weidemann 3070 CX 60LP was manufactured from 2006 to 2015.

How much does the Weidemann 3070 CX 60LP weigh?

The Weidemann 3070 CX 60LP weighs 4.39 tons.

What are the transport dimensions of the Weidemann 3070 CX 60LP?

The Weidemann 3070 CX 60LP has a transport length of 5.61 meters, a transport width of 1.53 meters, and a transport height of 2.36 meters.

What is the travel speed of the Weidemann 3070 CX 60LP wheel loader?

The Weidemann 3070 CX 60LP has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weidemann 3070 CX 60LP?

The Weidemann 3070 CX 60LP is equipped with standard tyres sized 11.5/80-15.3 AS.

What are the maneuverability specifications of the Weidemann 3070 CX 60LP wheel loader?

The Weidemann 3070 CX 60LP has an articulated-frame steering mode and an outside turning radius of 3.419 meters.

What is the maximum discharge height of the Weidemann 3070 CX 60LP wheel loader?

The Weidemann 3070 CX 60LP has a maximum discharge height of 2.33 meters.

What are the bucket specifications of the Weidemann 3070 CX 60LP wheel loader?

The Weidemann 3070 CX 60LP has a bucket capacity of 0.55 cubic meters, a minimum bucket capacity of 0.55 cubic meters, and a bucket width of 1.6 meters.
