3070 CX 60 Tele Weidemann 3070 CX 60 Tele Specifications & Technical Data (2007—2008)

The Weidemann 3070 CX 60 Tele is a wheel loader manufactured by Weidemann from 2007 to 2008. It has a weight of 5.07 tons and a tr…

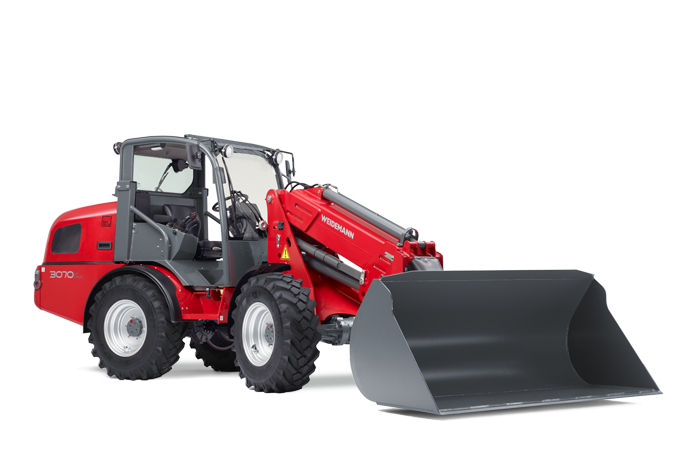

The Weidemann 3070 CX 60 Tele is a wheel loader manufactured by Weidemann from 2007 to 2008. It has a weight of 5.07 tons and a transport length of 4.77 meters. The bucket capacity is 0.7 cubic meters, with a minimum capacity of 0.7 cubic meters. The transport width is 1.58 meters and the transport height is 2.57 meters. This construction machine is equipped with a quick hitch mechanism and telescopic capabilities.

3070 CX 60 Tele

Years of manufacture: 2007—2008

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 3070 CX 60 Tele Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.07 t

Standard tyres: 12.5/80-18 AS

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Steering mode: KL

Transport length: 4.77 m

Transport width: 1.58 m

Transport height: 2.57 m

Model series: CX

Engine manuf.: Deutz

Engine type: F4M2011

Engine power: 42.5 kW

Displacement: 3.108 l

More technical details, like: bucket width, bucket capacity max., travel speed, max. discharge height, turning radius outside, lifting force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

3070 CX 60 Tele Weidemann Specification for Europe (EN)

Weidemann 3070 CX 60 Tele FAQ

When was the Weidemann 3070 CX 60 Tele manufactured?

The Weidemann 3070 CX 60 Tele was manufactured from 2007 to 2008.

How much does the Weidemann 3070 CX 60 Tele weigh?

The Weidemann 3070 CX 60 Tele weighs 5.07 tons.

What are the transport dimensions of the Weidemann 3070 CX 60 Tele?

The Weidemann 3070 CX 60 Tele has a transport length of 4.77 meters, a transport width of 1.58 meters, and a transport height of 2.57 meters.

What are the undercarriage tyre specifications of the Weidemann 3070 CX 60 Tele?

The Weidemann 3070 CX 60 Tele is equipped with standard tyres sized 12.5/80-18 AS.

What is the steering mode of the Weidemann 3070 CX 60 Tele?

The Weidemann 3070 CX 60 Tele has articulated-frame steering.

What is the bucket capacity of the Weidemann 3070 CX 60 Tele wheel loader?

The bucket capacity of the Weidemann 3070 CX 60 Tele wheel loader is 0.7 cubic meters.

How much is a Weidemann 3070 CX 60 Tele Wheel loader (2007u20132008) worth?

The residual value of the Weidemann 3070 CX 60 Tele depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
