2080 Weidemann 2080 Specifications & Technical Data (2019—2026)

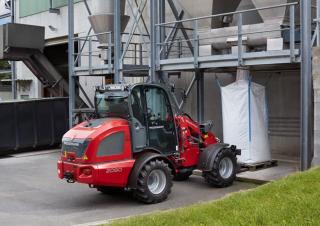

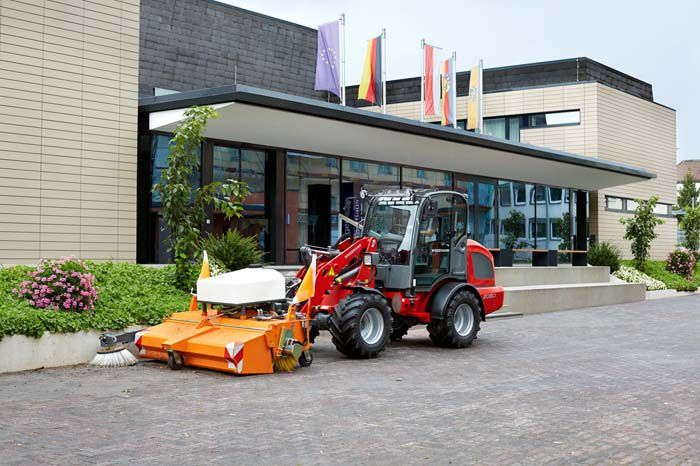

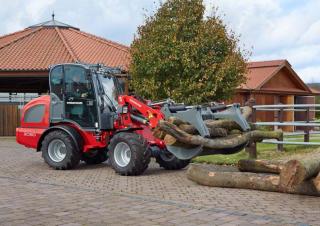

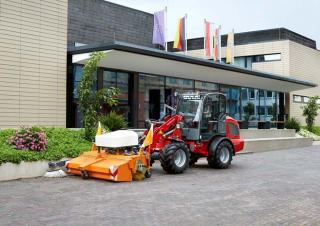

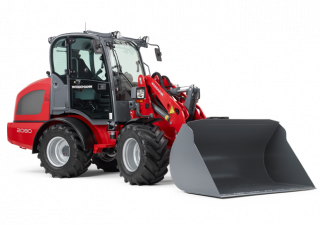

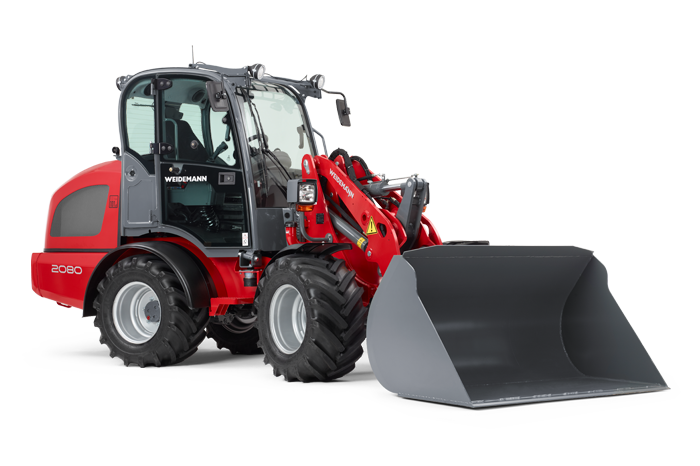

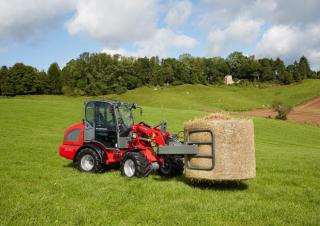

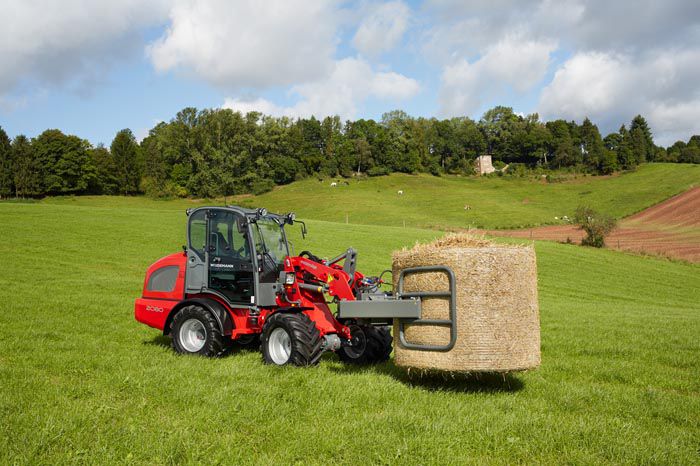

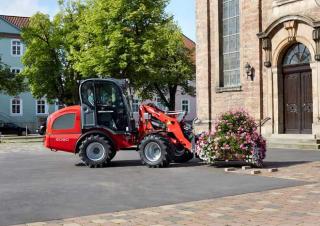

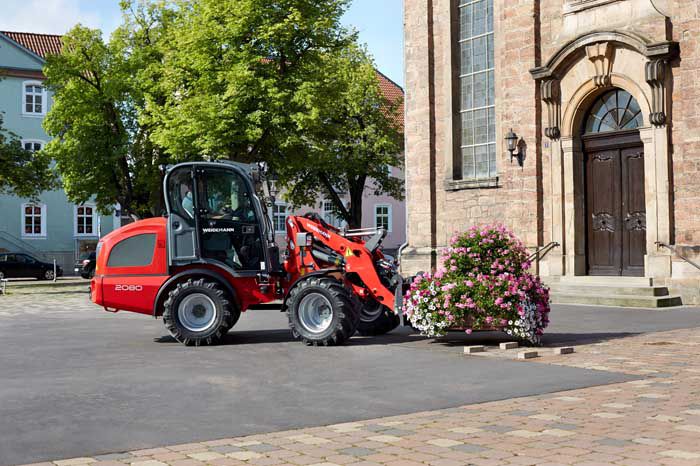

The Weidemann 2080 is a wheel loader manufactured since 2019. It has a weight of 4.3 tons and a transport length of 5.073 meters. …

The Weidemann 2080 is a wheel loader manufactured since 2019. It has a weight of 4.3 tons and a transport length of 5.073 meters. The maximum discharge height is 2.51 meters and it can travel at a speed of 20 km/h. The transport width is 1.41 meters and the transport height is 2.359 meters. It is equipped with a diesel particulate filter and a quick hitch hydr.

2080

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2080 Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.3 t

Standard tyres: 11.5/80-15.3 AS ET 40

Steering mode: KL

Transport length: 5.07 m

Transport width: 1.41 m

Transport height: 2.36 m

Travel speed: 20 km/h

Max. discharge height: 2.51 m

Turning radius outside: 3.523 m

Engine manuf.: Deutz

Engine type: TD2.9 L4 S5

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 260/1600 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Weidemann 2080 FAQ

When was the Weidemann 2080 manufactured?

The Weidemann 2080 was first produced in 2019.

How much does the Weidemann 2080 weigh?

The Weidemann 2080 weighs 4.3 tons.

What are the transport dimensions of the Weidemann 2080 wheel loader?

The Weidemann 2080 has a transport length of 5.07 meters, a transport width of 1.41 meters, and a transport height of 2.36 meters.

What is the travel speed of the Weidemann 2080 wheel loader?

The Weidemann 2080 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weidemann 2080 wheel loader?

The Weidemann 2080 wheel loader is equipped with standard tyres sized 11.5/80-15.3 AS ET 40.

What are the maneuverability specifications of the Weidemann 2080 wheel loader?

The Weidemann 2080 wheel loader has an outside turning radius of 3.523 meters and uses articulated-frame steering.

What is the maximum discharge height of the Weidemann 2080?

The Weidemann 2080 has a maximum discharge height of 2.51 meters.

How much is a Weidemann 2080 Wheel loader (2019u20132025) worth?

The residual value of the Weidemann 2080 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Weidemann 2080 overview

Engine / Powertrain / Drivetrain

Drive system

PA1200 planetary axle Hydrostatic all-wheel drive, travel direction can be selected via joystick Service brake: Hydrostatic drive system acting on all 4 wheels (wear-free) Central service and parking brake in the drive train acting on all 4 wheels 100% differential lock, electric-hydraulically connectable on front and rear axle Tires 11.5 / 80 - 15.3 AS ET40

Hydraulic system

Hydraulics

3rd control circuit in front electrically proportional in parallel via joystick Hydraulic oil cooler Floating position for lift cylinder

Other

Working lights (2 front, 2 rear) Operating hour meter Battery circuit breaker Fuel display Hydraulic quick-change system for attachments Toolbox in the vehicle rear Bucket status display Self-recovery coupling Lighting display according to Road Traffic Regulations

Operator's cab

Driver's Cabin

Comfort cabin with heater and fan, laterally tiltable, roll-over protective structure / FOPS-tested ("low" cabin height 2359 mm) Comfort seat with safety belt, fully suspended, weight, back and horizontal adjustment Hydraulic pilot operated joystick with direction control switch and integrated touch button for differential lock Adjustable steering wheel
