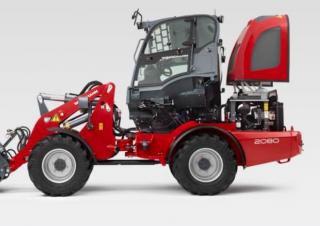

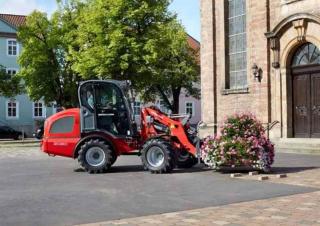

2080 Weidemann 2080 Specifications & Technical Data (2015—2019)

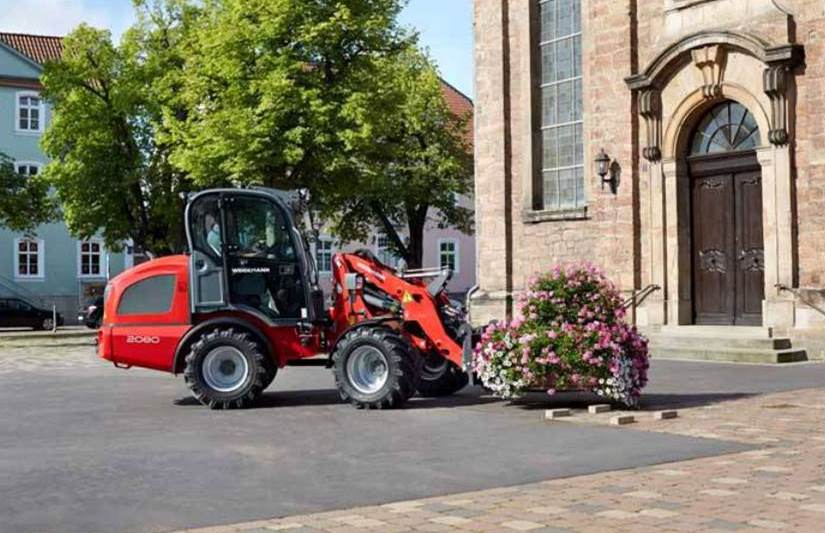

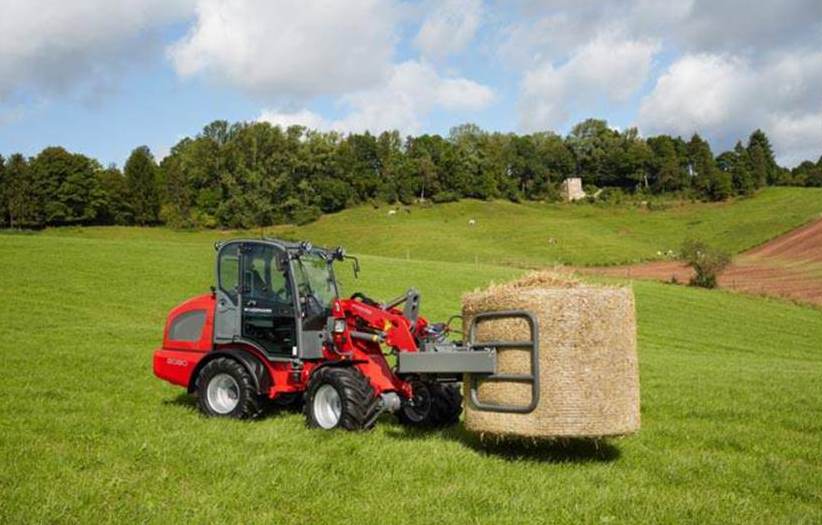

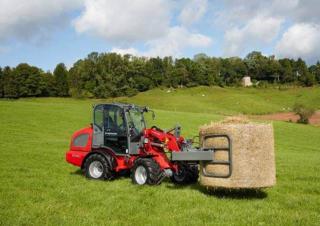

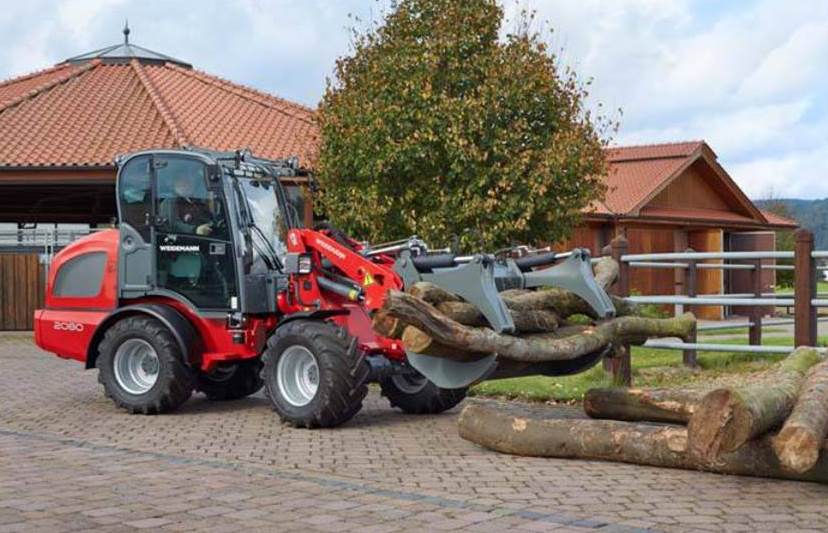

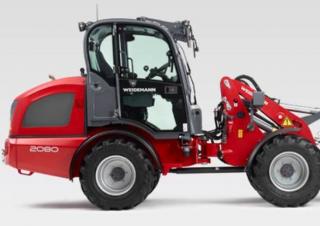

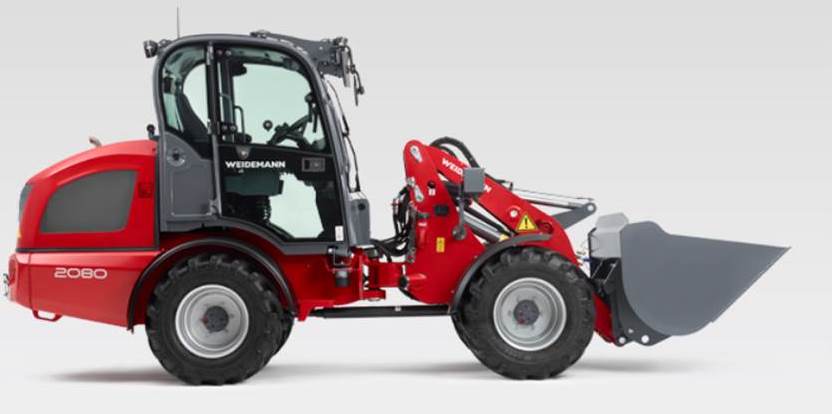

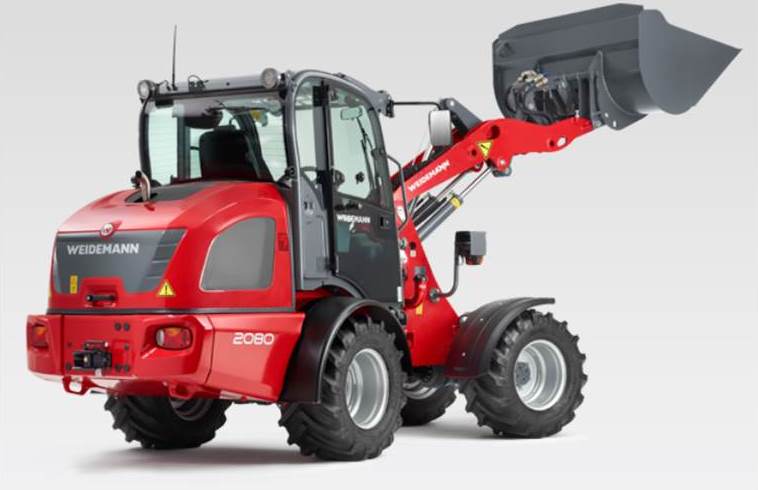

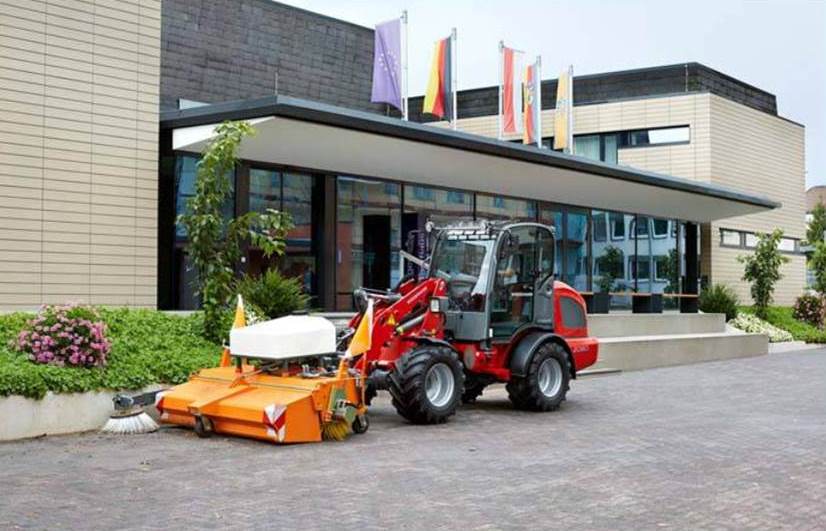

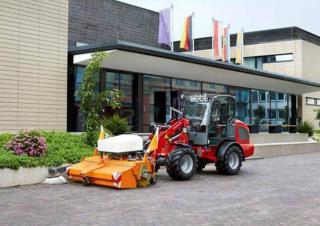

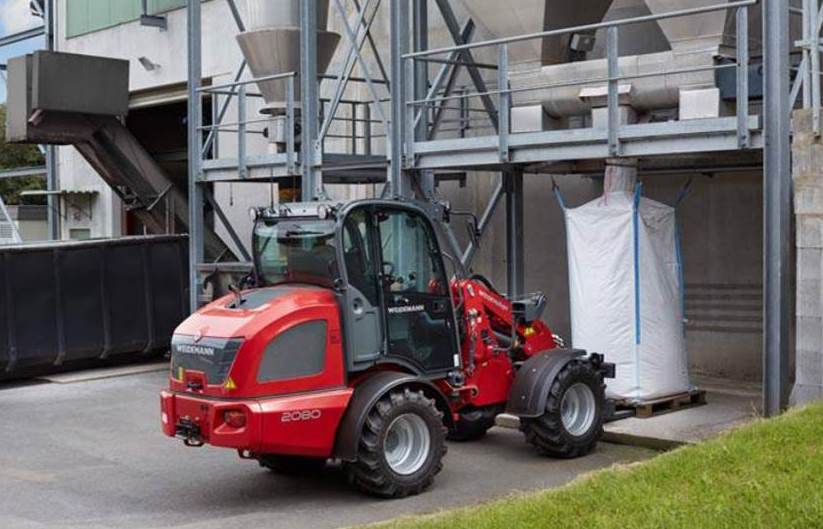

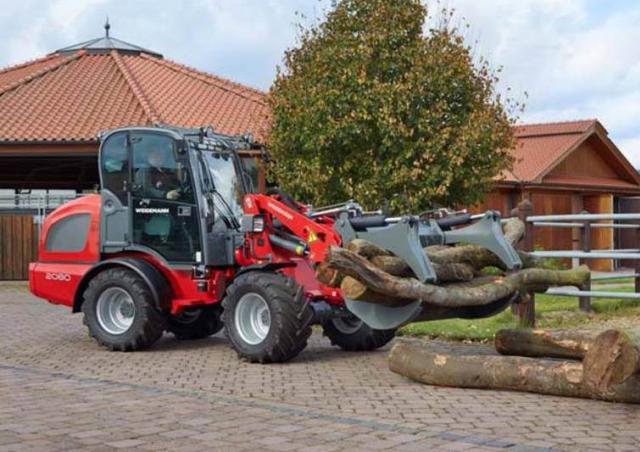

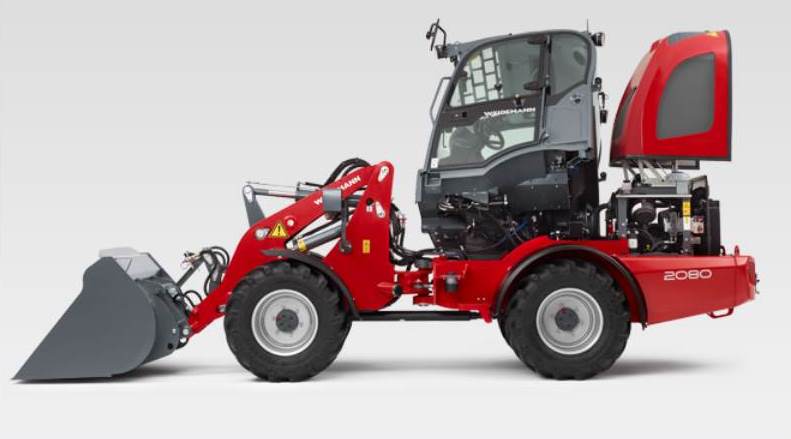

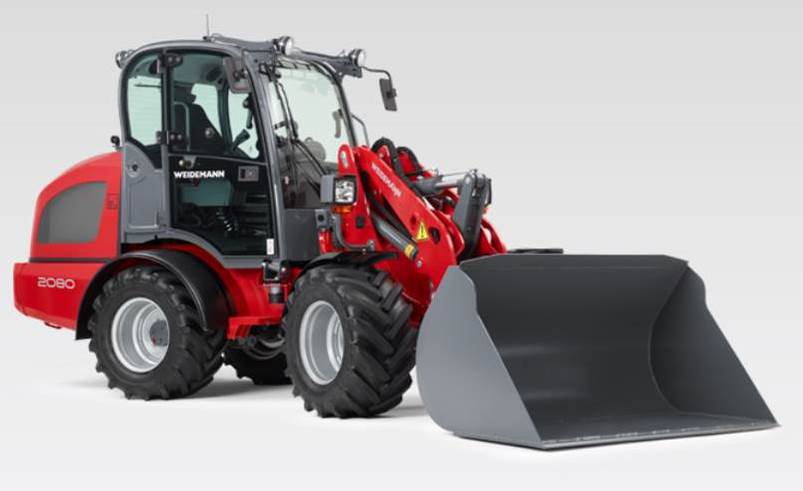

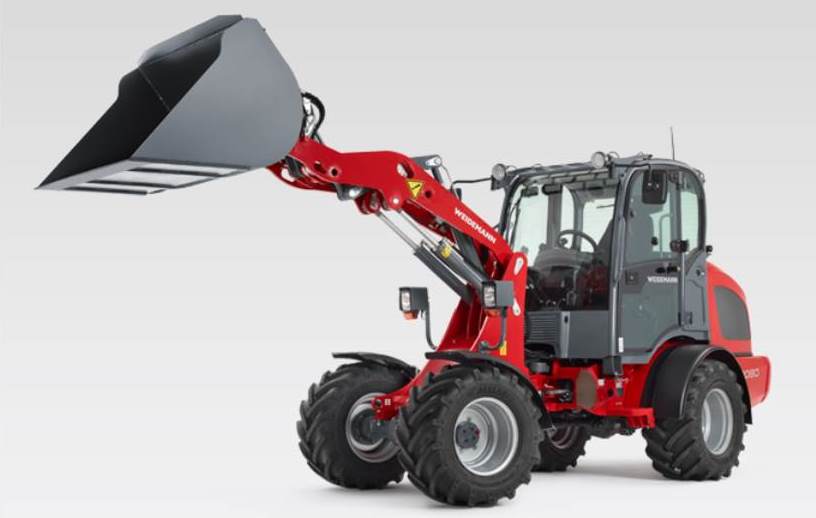

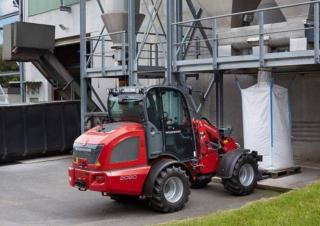

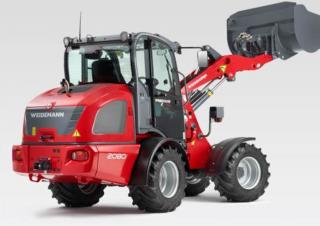

The Weidemann 2080 is a wheel loader manufactured by Weidemann from 2015 to 2019. It has a weight of 4.2 tons and a transport leng…

The Weidemann 2080 is a wheel loader manufactured by Weidemann from 2015 to 2019. It has a weight of 4.2 tons and a transport length of 5 meters. The maximum discharge height is 2.51 meters. The transport width is 1 meter and the transport height is 2 meters. It has a turning radius outside of 3 meters. The special equipment includes a quick hitch hydr.

2080

Years of manufacture: 2015—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2080 Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.2 t

Standard tyres: 11.5/80-15.3 AS ET 40

Steering mode: KL

Transport length: 5.073 m

Transport width: 1.410 m

Transport height: 2.359 m

Travel speed: 20 km/h

Max. discharge height: 2.51 m

Turning radius outside: 3.523 m

Engine manuf.: Perkins

Engine type: 404D-22

Engine power: 36.3 kW

Displacement: 2.2 l

Revolutions at max torque: 2800 rpm

No. of cylinders: 4

Emission level: IIIA

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Weidemann 2080 FAQ

When was the Weidemann 2080 manufactured?

The Weidemann 2080 was manufactured from 2015 to 2019.

How much does the Weidemann 2080 weigh?

The Weidemann 2080 weighs 4.2 tons.

What are the transport dimensions of the Weidemann 2080 wheel loader?

The Weidemann 2080 has a transport length of 5.07 meters, a transport width of 1.41 meters, and a transport height of 2.36 meters.

What is the travel speed of the Weidemann 2080 wheel loader?

The Weidemann 2080 has a travel speed of 20 km/h.

What are the standard tyre specifications for the Weidemann 2080 wheel loader?

The Weidemann 2080 wheel loader comes with standard tyres sized 11.5/80-15.3 AS ET 40.

What are the maneuverability specifications of the Weidemann 2080 wheel loader?

The Weidemann 2080 has an articulated-frame steering mode and an outside turning radius of 3.523 meters.

What is the maximum discharge height of the Weidemann 2080?

The Weidemann 2080 has a maximum discharge height of 2.51 meters.

How much is a Weidemann 2080 Wheel loader (2015u20132019) worth?

The residual value of the Weidemann 2080 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
