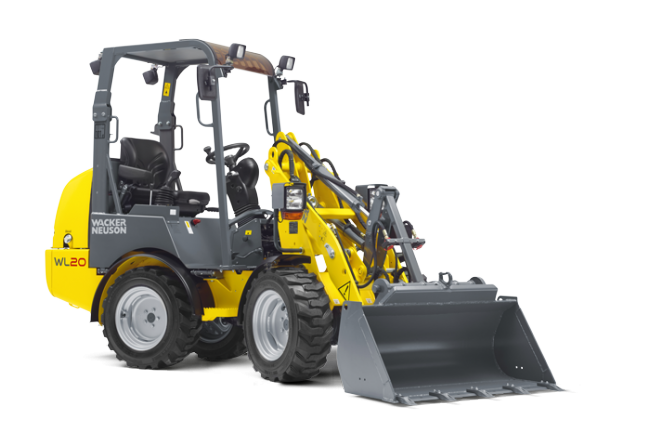

WL20 Wacker Neuson WL20 Specifications & Technical Data (2007—2018)

The Wacker Neuson WL20 is a wheel loader that was manufactured from 2007 to 2018. It has a weight of 2 tons and a transport length…

The Wacker Neuson WL20 is a wheel loader that was manufactured from 2007 to 2018. It has a weight of 2 tons and a transport length of 3.063 meters. The bucket capacity is 0.2 cubic meters with a width of 1.15 meters. The maximum discharge height is 2.011 meters and it has a travel speed of 20 km/h. The transport width is 1.076 meters and the transport height is 2.293 meters. It has a lifting force of 18.84 kN and a turning radius outside of 2.356 meters. The bucket capacity minimum is 0.2 cubic meters. It also comes with special equipment, which is a quick hitch hydr.

Wheel Loaders Wacker Neuson WL20

Visit Wacker Neuson live at

Technical specs - WL20 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2 t
Standard tyres
27x10.5-15 EM
Bucket width
1.15 m
Bucket capacity
0.2 m³
Bucket capacity min.
0.2 m³
Steering mode
KL
Transport length
3.063 m
Transport width
1.076 m
Transport height
2.293 m
Travel speed
20 km/h
Max. discharge height
2.011 m
Turning radius outside
2.356 m
Lifting force
18.84 kN
Model series
WL
Engine manuf.
Perkins
Engine type
403D-11
Engine power
17.9 kW
Displacement
1.13 l
Revolutions at max torque
2800 rpm
No. of cylinders
3

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson WL20 FAQ

When was the Wacker Neuson WL20 manufactured?

The Wacker Neuson WL20 was manufactured from 2007 to 2018.

How much does the Wacker Neuson WL20 weigh?

The Wacker Neuson WL20 weighs 2 tons.

What are the transport dimensions of the Wacker Neuson WL20 wheel loader?

The Wacker Neuson WL20 has a transport length of 3.06 meters, a transport width of 1.08 meters, and a transport height of 2.29 meters.

What is the travel speed of the Wacker Neuson WL20 wheel loader?

The Wacker Neuson WL20 has a travel speed of 20 km/h.

What is the standard tyre size of the Wacker Neuson WL20 wheel loader?

The Wacker Neuson WL20 is equipped with standard tyres sized 27x10.5-15 EM.

What are the maneuverability specifications of the Wacker Neuson WL20 wheel loader?

The Wacker Neuson WL20 has an articulated-frame steering system and an outside turning radius of 2.356 meters.

What is the lifting force of the Wacker Neuson WL20 wheel loader?

The Wacker Neuson WL20 has a lifting force of 18.84 kN.

What is the maximum discharge height of the Wacker Neuson WL20?

The Wacker Neuson WL20 has a maximum discharge height of 2.01 meters.

What are the bucket specifications of the Wacker Neuson WL20 wheel loader?

The Wacker Neuson WL20 has a bucket capacity of 0.2 cubic meters, a minimum bucket capacity of 0.2 cubic meters, and a bucket width of 1.15 meters.

How much is a Wacker Neuson WL20 Wheel loader (2007u20132018) worth?

The residual value of the Wacker Neuson WL20 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
