LM846 Volvo LM846 Specifications & Technical Data (1972—1979)

The Volvo LM846 is a wheel loader manufactured from 1972 to 1979. It has a weight of 10 tons and a transport length of 6.5 meters.…

The Volvo LM846 is a wheel loader manufactured from 1972 to 1979. It has a weight of 10 tons and a transport length of 6.5 meters. The bucket capacity is 5 cubic meters, and the maximum discharge height is 4.4 meters. It has a travel speed of 30 km/h and a transport width of 2.5 meters. The transport height is 3 meters, and the turning radius outside is 4.9 meters.

Wheel Loaders Volvo LM846

Visit Volvo live at

Technical specs - LM846 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10 t
Standard tyres
F: 20.5-25/12. R: 20.5-25/12
Bucket capacity
5 m³
Steering mode
KL
Transport length
6.5 m
Transport width
2.5 m
Transport height
3 m
Travel speed
30 km/h
Max. discharge height
4.4 m
Turning radius outside
4.9 m
Engine manuf.
Volvo
Engine type
D 50B
Engine power
120 HP
Displacement
5.13 l
Revolutions at max torque
2400 rpm
Max. torque
372/1600 Nm
No. of cylinders
6
Cylinder bore x stroke
95.25x120 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo LM846 FAQ

When was the Volvo LM846 manufactured?

The Volvo LM846 was manufactured from 1972 to 1979.

How much does the Volvo LM846 wheel loader weigh?

The Volvo LM846 wheel loader weighs 10 tons.

What are the transport dimensions of the Volvo LM846 wheel loader?

The Volvo LM846 has a transport length of 6.5 meters, a transport width of 2.5 meters, and a transport height of 3 meters.

What is the travel speed of the Volvo LM846 wheel loader?

The Volvo LM846 wheel loader has a travel speed of 30 km/h.

What are the undercarriage specifications of the Volvo LM846 wheel loader?

The Volvo LM846 wheel loader is equipped with standard tyres sized Front: 20.5-25/12 and Rear: 20.5-25/12.

What are the maneuverability specifications of the Volvo LM846 wheel loader?

The Volvo LM846 wheel loader has an articulated-frame steering system and an outside turning radius of 4.9 meters.

What is the material handling capacity of the Volvo LM846 in terms of discharge height?

The Volvo LM846 has a maximum discharge height of 4.4 meters.

What is the bucket capacity of the Volvo LM846 wheel loader?

The bucket capacity of the Volvo LM846 wheel loader is 5 cubic meters.

How much is a Volvo LM846 Wheel loader (1972u20131979) worth?

The residual value of the Volvo LM846 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Volvo LM846 overview

Hydraulic system

Long outreach — high lift

Rugged loader unit providing high break-out force. "Open and clean" design means good visibility and reduced risk of damage. Long outreach — high lift means faster working cycles. Good bucket angles, max. tipping angle 70°. Few bearing points.


Operator's cab

Outstanding driver comfort

Rubber-mounted cab fitted on rear frame. Thorough insulation. Low noise level, below the international N 85 curve. Generous space for the driver. Effective heating and ventilation. Excellent visibility through wrap-around windscreen. Windscreen wipers front and rear. Fast, convenient gear shifts.


Safe in every respect

Impact-tested cab. Dual-circuit, four-wheel brakes. Hydrostatic steering. Starting only in neutral. Flashing warning signals. Rear-view mirrors, sun visor. Excellent road-holding owing to long wheel base. High-efficiency defroster.


Bucket and Ground Engaging Tools

Bm-volvo lm 846

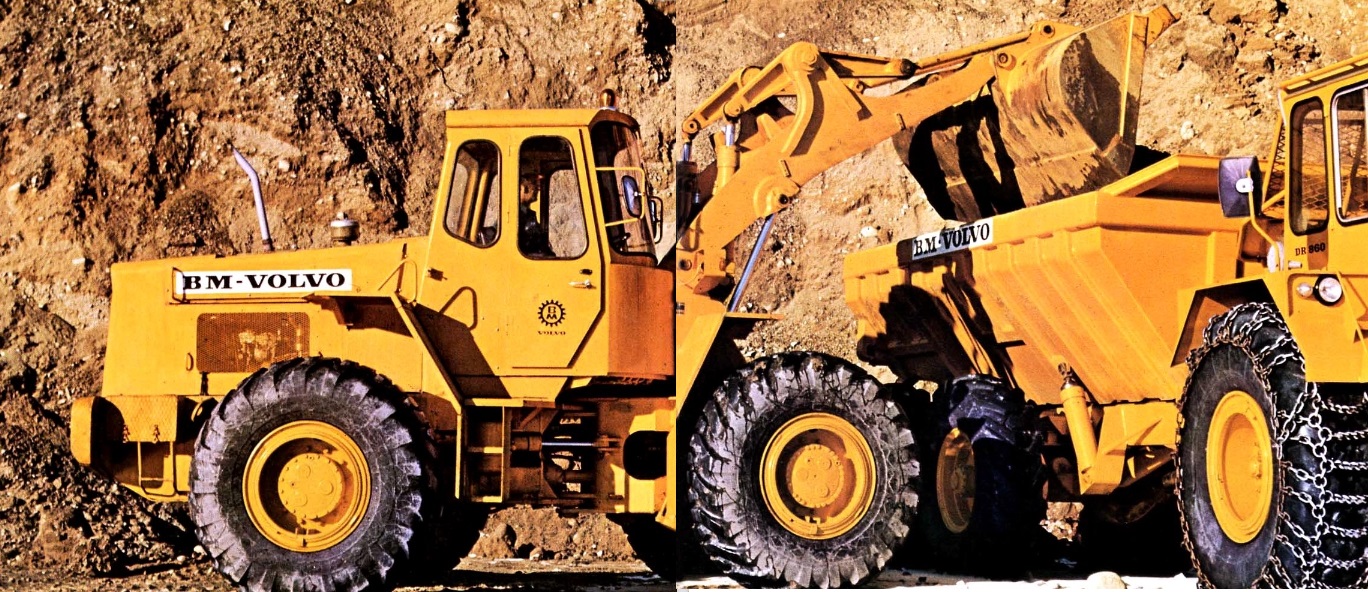

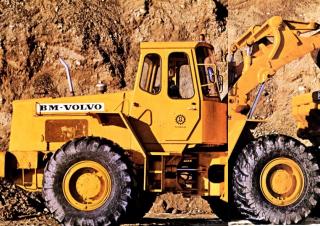

The BM-VOLVO LM 846 — an articulated, 4-wheel drive loader. It combines the traditional features of BM-VOLVO loaders — high capacity, versatility, manoeuvrability and reliability — with the advantages of articulated steering. The LM 846 is a loader in the 10-ton class, carefully designed for operations under the most arduous conditions. It has a spacious safety cab offering superior driver comfort. Powerful engine, large wheels and rugged dimensions for tough jobs.
