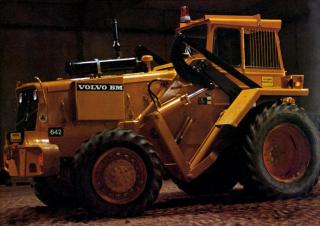

642 Volvo 642 Specifications & Technical Data (1979—1982)

Volvo BM Allrounders—efficient at the most diverse tasks

When high demands are made on economy and reliability, the Volvo BM 622 and 642 are the right choice. They are designed to give a high yield from each working hour with a minimum of service and low fuel consumption. And most important of all: a Volvo BM Allrounder can handle most jobs, thanks to its maneuverability and access to a unique range of attachments. The 622 and 642 are powerful, rugged and sturdy loaders. They are made up of tried-and-tested and durable components. The machine is easy to operate and can work with precision where needed. The loader unit lifts high and reaches so far that wide vehicles can be loaded and unloaded from one side. The hydraulic quick-change coupling enables you to change attachments jobs in less than a minute. The Volvo BM 622 and 642 are reliable machines that feature capacity and versatility combined with good economy.

Quick change coupling and unique range of attachments

You can choose from a range of about seventy attachments to find the ones best-suited to your needs. The quick-change coupling enables you to change attachments in less than a minute, eliminating the need for specialized machines. No downtime. This means good economy on both a daily and long-term basis. The 622/642 has long reach in front of the tyres, good lifting height, good bucket angles and complete parallel side-arm action, thanks to the construction of the loader unit. Parallel side-arm action is particularly advantageous in the handling of e.g. palletized goods and sawn timber packages.

Volvo BM Allrounders

Volvo BM Allrounders—Europe's best-selling loaders—are part of Volvo BM's wide range of loaders. They are appreciated for their reliability, capacity and good economy at the most diverse tasks.

Economical and powerful Volvo BM engine

The power source is the powerful and reliable Volvo BM D42 diesel engine, renowned for its durability and infrequent breakdowns. It has four cylinders, a total displacement of 4.2 litres and develops 59 kW SAE at 38.4 rps (80 hp SAE at 2300 rpm). The engine is direct-injected and has wet replaceable cylinder linings. The pistons are made of light alloy. The crankshaft is carried in five bearings, all of which are surface-hardened for extra-long life. It features an air cleaner with a dry-air filter and cyclone, along with a water-cooled oil cooler. Additionally, the injection system is well tuned for very low fuel consumption.

Cab Design

The cab is well-insulated and appointed to make the work easy, safe and efficient. The operator sits comfortably in the individually adjustable seat and has good visibility over the entire operating range of the machine. The entire cab is designed to make the work easier, safer and more efficient. You are seated well forward and have good visibility through large windows all around. The work can be done with safety and precision. You have a continuous view of the machine and the attachment. The cab naturally conforms to the requirements of the Swedish Board of Occupational Safety and Health as regards both static and dynamic strength.
