2.63 C Venieri 2.63 C Specifications & Technical Data (2012—2021)

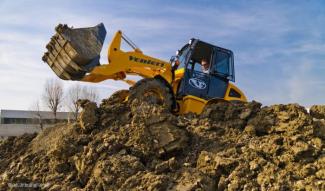

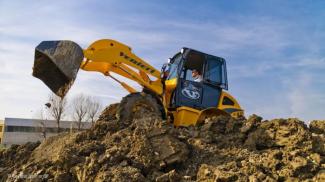

The Venieri 2.63 C is a wheel loader manufactured since 2012. It has a weight of 4.5 tons and a transport length of 4.8 meters. Th…

The Venieri 2.63 C is a wheel loader manufactured since 2012. It has a weight of 4.5 tons and a transport length of 4.8 meters. The bucket capacity is 0.75 cubic meters, with a bucket width of 1.7 meters. The maximum discharge height is 3.1 meters, and it has a travel speed of 20 km/h. The transport width and height are both 1.7 and 2.46 meters, respectively. The turning radius outside is 4.2 meters, and it is equipped with air conditioning and a quick hitch hydraulic mechanism.

2.63 C

Years of manufacture: 2012—2021

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2.63 C Venieri

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.5 t

Standard tyres: 12.0/75-18

Bucket width: 1.7 m

Bucket capacity: 0.75 m³

Bucket capacity min.: 0.75 m³

Steering mode: KL

Transport length: 4.8 m

Transport width: 1.7 m

Transport height: 2.46 m

Travel speed: 20 km/h

Max. discharge height: 3.1 m

Turning radius outside: 4.2 m

Engine manuf.: Yanmar

Engine type: 4TNV88

Engine power: 36 kW

Displacement: 2.19 l

Revolutions at max torque: 3000 rpm

No. of cylinders: 4

Emission level: IIIa

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Venieri 2.63 C FAQ

When was the Venieri 2.63 C manufactured?

The Venieri 2.63 C was first produced in 2012.

How much does the Venieri 2.63 C wheel loader weigh?

The Venieri 2.63 C wheel loader weighs 4.5 tons.

What are the transport dimensions of the Venieri 2.63 C wheel loader?

The Venieri 2.63 C has a transport length of 4.8 meters, a transport width of 1.7 meters, and a transport height of 2.46 meters.

What is the travel speed of the Venieri 2.63 C wheel loader?

The Venieri 2.63 C has a travel speed of 20 km/h.

What are the undercarriage specifications of the Venieri 2.63 C wheel loader?

The Venieri 2.63 C wheel loader is equipped with standard tyres sized 12.0/75-18.

What are the maneuverability specifications of the Venieri 2.63 C wheel loader?

The Venieri 2.63 C wheel loader has an articulated-frame steering mode and a turning radius of 4.2 meters outside.

What is the maximum discharge height of the Venieri 2.63 C wheel loader?

The Venieri 2.63 C wheel loader has a maximum discharge height of 3.1 meters.

What are the specifications of the primary work tool bucket on the Venieri 2.63 C wheel loader?

The Venieri 2.63 C wheel loader has a bucket with a capacity of 0.75 cubic meters, a minimum bucket capacity of 0.75 cubic meters, and a bucket width of 1.7 meters.
