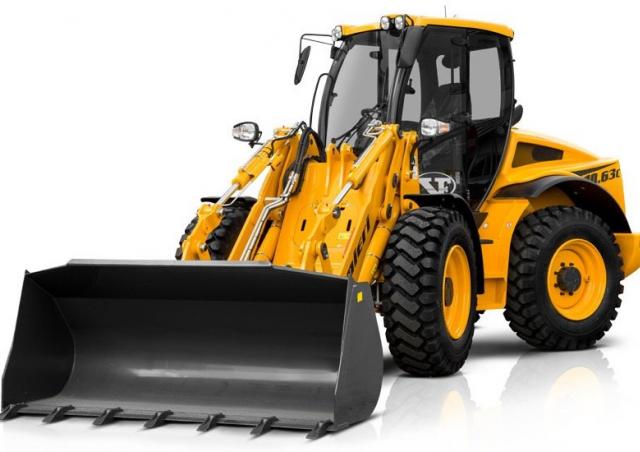

10.63 D Venieri 10.63 D Specifications & Technical Data (2020—2026)

The Venieri 10.63 D is a wheel loader manufactured by Venieri since 2020. With a weight of 10.11 tons, it has a transport length o…

The Venieri 10.63 D is a wheel loader manufactured by Venieri since 2020. With a weight of 10.11 tons, it has a transport length of 6.23 meters. The bucket capacity is 1.8 cubic meters, with a width of 2.35 meters. It can reach a maximum discharge height of 3.8 meters and has a travel speed of 40 km/h. The transport width is 2.35 meters and the transport height is 2.98 meters. The turning radius outside is 5.6 meters. The machine is equipped with special features such as air conditioning, a diesel particulate filter, and a quick hitch hydraulic system.

10.63 D

Years of manufacture: 2020—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 10.63 D Venieri

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.5 t

Standard tyres: 17.5 x 25

Bucket width: 2.35 m

Bucket capacity: 1.8 m³

Bucket capacity min.: 1.8 m³

Bucket capacity max.: 2.5 m³

Steering mode: KL

Transport length: 6.23 m

Transport width: 2.35 m

Transport height: 2.98 m

Travel speed: 40 km/h

Max. discharge height: 3.8 m

Turning radius outside: 5.6 m

Lifting force: 8000 kN

Engine manuf.: Deutz

Engine type: TD3.6 L4

Engine power: 105 kW

Displacement: 3.6 l

Revolutions at max torque: 2300 rpm

Max. torque: 500 Nm

No. of cylinders: 4

Cylinder bore x stroke: 98x120 mm

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Venieri 10.63 D FAQ

When was the Venieri 10.63 D manufactured?

The Venieri 10.63 D was first produced in 2020.

How much does the Venieri 10.63 D wheel loader weigh?

The Venieri 10.63 D wheel loader weighs 9.5 tons.

What are the transport dimensions of the Venieri 10.63 D wheel loader?

The Venieri 10.63 D has a transport length of 6.23 meters, a transport width of 2.35 meters, and a transport height of 2.98 meters.

What is the travel speed of the Venieri 10.63 D wheel loader?

The Venieri 10.63 D has a travel speed of 40 km/h.

What are the undercarriage specifications of the Venieri 10.63 D wheel loader?

The Venieri 10.63 D wheel loader is equipped with standard tyres sized 17.5 x 25.

What are the maneuverability specifications of the Venieri 10.63 D wheel loader?

The Venieri 10.63 D wheel loader has an outside turning radius of 5.6 meters and features articulated-frame steering.

What are the power ratings of the Venieri 10.63 D wheel loader?

The power ratings for the Venieri 10.63 D wheel loader are not provided in the available data.

What is the maximum discharge height of the Venieri 10.63 D?

The Venieri 10.63 D has a maximum discharge height of 3.8 meters.

What are the bucket specifications of the Venieri 10.63 D wheel loader?

The Venieri 10.63 D wheel loader has a bucket capacity ranging from 1.8 to 2.5 cubic meters, with a bucket width of 2.35 meters.

How much is a Venieri 10.63 D Wheel loader (2020u20132025) worth?

The residual value of the Venieri 10.63 D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
