LH 621 TORO LH 621 Specifications & Technical Data (2008—2011)

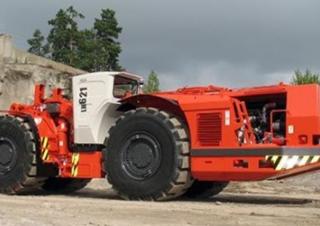

The TORO LH 621 is a wheel loader manufactured by TORO from 2008 to 2011. It has a weight of 56.8 tons and a transport length of 1…

The TORO LH 621 is a wheel loader manufactured by TORO from 2008 to 2011. It has a weight of 56.8 tons and a transport length of 12 meters. The bucket capacity is 9 cubic meters with a width of 3.1 meters. The maximum discharge height is 6.9 meters. It has a travel speed of 25.5 km/h and a transport width of 3.1 meters. The transport height is 3 meters. The lifting force is 378 kN and the turning radius outside is 7.8 meters. The machine is equipped with air conditioning.

LH 621

Years of manufacture: 2008—2011

Spare parts
Transport
News

Technical specs - LH 621 TORO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 56.8 t

Standard tyres: 35/65-33 VSDL L5.1

Bucket width: 3.1 m

Bucket capacity: 9 m³

Bucket capacity min.: 9 m³

Steering mode: KL

Transport length: 12 m

Transport width: 3.1 m

Transport height: 3 m

Travel speed: 25.5 km/h

Max. discharge height: 6.9 m

Turning radius outside: 7.8 m

Lifting force: 378 kN

Model series: LH

Engine manuf.: Detroit

Engine type: S60DDEC-V

Engine power: 354 kW

Displacement: 12.7 l

Revolutions at max torque: 1350 rpm

More technical details, like: bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

TORO LH 621 FAQ

When was the TORO LH 621 manufactured?

The TORO LH 621 was manufactured from 2008 to 2011.

How much does the TORO LH 621 wheel loader weigh?

The TORO LH 621 wheel loader weighs 56.8 tons.

What are the transport dimensions of the TORO LH 621 wheel loader?

The TORO LH 621 has a transport length of 12 meters, a transport width of 3.1 meters, and a transport height of 3 meters.

What is the travel speed of the TORO LH 621 wheel loader?

The TORO LH 621 has a travel speed of 25.5 km/h.

What are the undercarriage specifications of the TORO LH 621 wheel loader?

The TORO LH 621 wheel loader is equipped with standard tyres sized 35/65-33 VSDL L5.1.

What are the maneuverability specifications of the TORO LH 621 wheel loader?

The TORO LH 621 features articulated-frame steering and has an outside turning radius of 7.8 meters.

What is the lifting force of the TORO LH 621 wheel loader?

The TORO LH 621 wheel loader has a lifting force of 378 kN.

What is the material handling capacity of the TORO LH 621 in terms of discharge height?

The TORO LH 621 has a maximum discharge height of 6.9 meters.

What are the specifications of the bucket on the TORO LH 621 wheel loader?

The TORO LH 621 wheel loader has a bucket capacity of 9 cubic meters, a minimum bucket capacity of 9 cubic meters, and a bucket width of 3.1 meters.
