LH 307 TORO LH 307 Specifications & Technical Data (2008—2011)

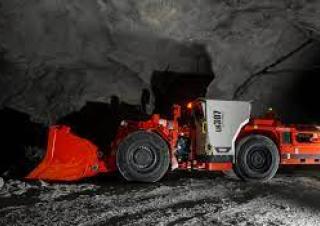

The TORO LH 307 is a wheel loader manufactured by TORO from 2008 to 2011. It has a weight of 18 tons and a transport length of 8.6…

The TORO LH 307 is a wheel loader manufactured by TORO from 2008 to 2011. It has a weight of 18 tons and a transport length of 8.6 meters. The bucket capacity is 3 cubic meters with a width of 2.1 meters. The maximum discharge height is 3.2 meters. It has a travel speed of 26 km/h and a transport width and height of 2.1 meters and 2.2 meters respectively. The lifting force is 134 kN and the turning radius outside is 5.8 meters. The minimum bucket capacity is also 3 cubic meters.

LH 307

Years of manufacture: 2008—2011

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - LH 307 TORO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 18 t

Standard tyres: 17.5 x 25 L5S

Bucket width: 2.1 m

Bucket capacity: 3 m³

Bucket capacity min.: 3 m³

Steering mode: KL

Transport length: 8.6 m

Transport width: 2.1 m

Transport height: 2.2 m

Travel speed: 26 km/h

Max. discharge height: 3.2 m

Turning radius outside: 5.8 m

Lifting force: 134 kN

Model series: LH

Engine manuf.: Mercedes-Benz

Engine type: OM904 LAT

Engine power: 130 kW

More technical details, like: bucket capacity max., dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

TORO LH 307 FAQ

When was the TORO LH 307 manufactured?

The TORO LH 307 was manufactured from 2008 to 2011.

How much does the TORO LH 307 wheel loader weigh?

The TORO LH 307 wheel loader weighs 18 tons.

What are the transport dimensions of the TORO LH 307 wheel loader?

The TORO LH 307 has a transport length of 8.6 meters, a transport width of 2.1 meters, and a transport height of 2.2 meters.

What is the travel speed of the TORO LH 307 wheel loader?

The TORO LH 307 wheel loader has a travel speed of 26 km/h.

What are the undercarriage specifications of the TORO LH 307 wheel loader?

The TORO LH 307 wheel loader is equipped with standard tyres sized 17.5 x 25 L5S.

What are the maneuverability specifications of the TORO LH 307 wheel loader?

The TORO LH 307 has an articulated-frame steering system and an outside turning radius of 5.8 meters.

What is the lifting force of the TORO LH 307 wheel loader?

The TORO LH 307 wheel loader has a lifting force of 134 kN.

What is the material handling capacity of the TORO LH 307 in terms of maximum discharge height?

The TORO LH 307 has a maximum discharge height of 3.2 meters.

What are the specifications of the bucket on the TORO LH 307 wheel loader?

The TORO LH 307 wheel loader has a bucket with a capacity of 3 cubic meters, a minimum bucket capacity of 3 cubic meters, and a bucket width of 2.1 meters.
