TXL 400-1 Terex TXL 400-1 Specifications & Technical Data (2005—2023)

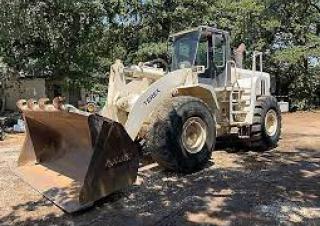

The Terex TXL 400-1 is a wheel loader manufactured by Terex since 2005. It has a weight of 22.04 tons and a transport length of 8.…

The Terex TXL 400-1 is a wheel loader manufactured by Terex since 2005. It has a weight of 22.04 tons and a transport length of 8.6 meters. The bucket capacity is 3.9 cubic meters with a width of 3.82 meters. The maximum discharge height is 4.3 meters. It has a travel speed of 36.5 km/h and a transport width of 2.3 meters. The transport height is 3.566 meters and the turning radius outside is 6.95 meters.

Wheel Loaders Terex TXL 400-1

Technical specs - TXL 400-1 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.04 t
Standard tyres
26.5X25X20PR (L3)
Bucket width
3.82 m
Bucket capacity
3.9 m³
Transport length
8.6 m
Transport width
2.3 m
Transport height
3.566 m
Travel speed
36.5 km/h
Max. discharge height
4.3 m
Turning radius outside
6.95 m
Engine manuf.
Daewoo
Engine type
DE12Tis
Engine power
224 kW
Displacement
11 l
Revolutions at max torque
2100 rpm
Max. torque
1274 Nm
Cylinder bore x stroke
123x155 mm

More technical details, like: bucket capacity min., bucket capacity max., steering mode, lifting force, model series, dimension lxwxh, no. of cylinders, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex TXL 400-1 FAQ

When was the Terex TXL 400-1 manufactured?

The Terex TXL 400-1 was manufactured from 2005 to 2023.

How much does the Terex TXL 400-1 weigh?

The Terex TXL 400-1 weighs 22.04 tons.

What are the transport dimensions of the Terex TXL 400-1 wheel loader?

The Terex TXL 400-1 has a transport length of 8.6 meters, a transport width of 2.3 meters, and a transport height of 3.57 meters.

What is the travel speed of the Terex TXL 400-1 wheel loader?

The Terex TXL 400-1 has a travel speed of 36.5 km/h.

What are the undercarriage specifications of the Terex TXL 400-1?

The Terex TXL 400-1 is equipped with standard tyres sized 26.5X25X20PR (L3).

What is the turning radius of the Terex TXL 400-1 wheel loader?

The Terex TXL 400-1 has an outside turning radius of 6.95 meters.

What is the maximum discharge height of the Terex TXL 400-1 wheel loader?

The Terex TXL 400-1 has a maximum discharge height of 4.3 meters.

What are the bucket specifications of the Terex TXL 400-1 wheel loader?

The Terex TXL 400-1 wheel loader has a bucket capacity of 3.9 cubic meters and a bucket width of 3.82 meters.

How much is a Terex TXL 400-1 Wheel loader (2005u20132023) worth?

The residual value of the Terex TXL 400-1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Terex TXL 400-1 overview

Engine / Powertrain / Drivetrain

Features

Excellent attachment breakout forces and lift capacities sustain digging and loading under toughest conditions. Exceptional view front and rear ROPS/FOPS cab maximizes bucket corner and maneuver zone visibility. Turbocharged / intercooled, USA EPA Tier 2 compliant diesel engine enhances productivity, reduces fuel consumption. Rugged full auto Powershift transmission with 4 forward, 3 reverse speeds optimizes cycle times. 40° left/right articulation helps ensure jobsite maneuverability and stability. Wet multi-disc service brakes provide outstanding braking and long component life. Main components accessible for easy field service. Equipped to maximize operator comfort, efficiency and performance.
